384-1-012-GBN-ZS

female connectors, straight, 384 by Garry

• according to DIN 41622 with solder contacts for PCB-mounting
• series: 384
• by Garry
• straight
• with solder pins
• 383_GBN_: contact type 10mm


• insulation shell: thermoplastic (UL94V-0)
• contact material: copper alloy, Ag 4µ
• rated current: 10A
• dielectric strength (for 1min.): 875VRMS
• temperature range: -20 ...+85°C
• max. process temperature: 230°C (5s)

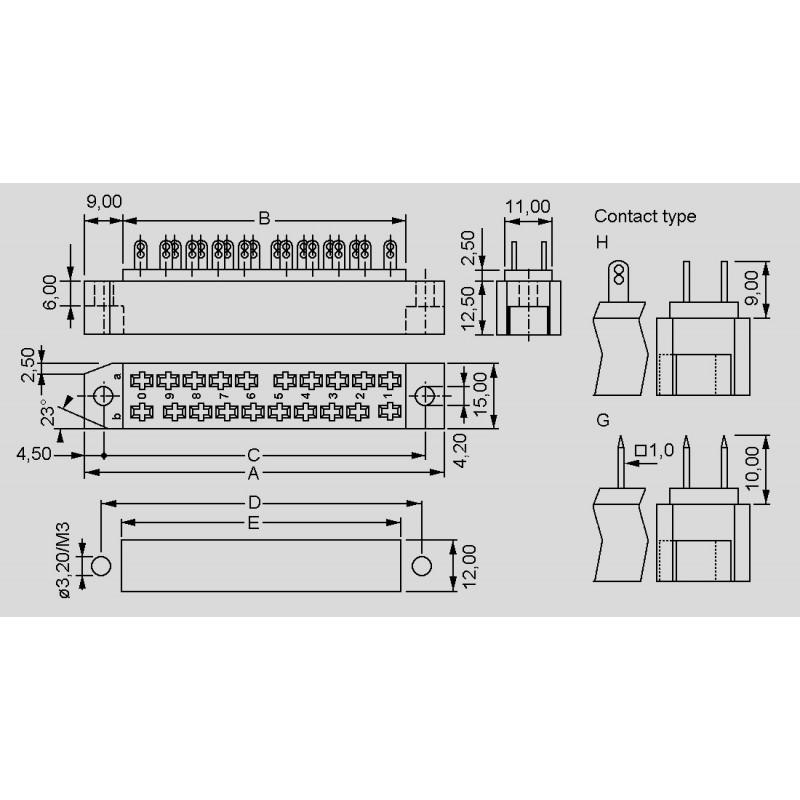

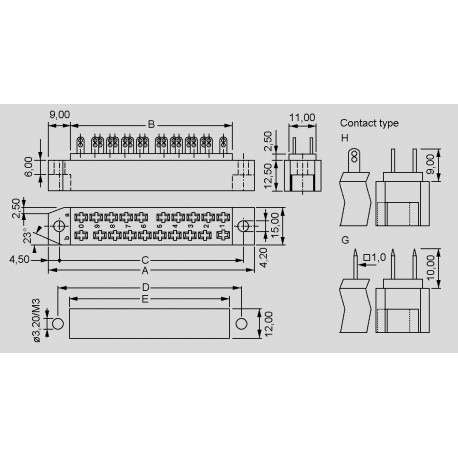

dimensions 384-1

384-1-012-GBN-ZS

42483 384-1-012-GBN-ZS 384-1-012-GBN-ZS female connectors, straight, 384 by Garry. • according to DIN 41622 with solder contacts for PCB-mounting• series: 384• by Garry• straight• with solder pins• 383_GBN_: contact type 10mm • insulation shell: thermoplastic (UL94V-0)• contact material: copper alloy, Ag 4µ• rated current: 10A• dielectric strength (for 1min.): 875VRMS• temperature range: -20 ...+85°C• max. process temperature: 230°C (5s)

Specifications

manufacturer
Manufacturer's name 384-1-012-GBN-ZS
Design solder pins
Number of poles 12
Rows 2
A [mm] 59
E [mm] 42
B [mm] 41
D [mm] 50
C [mm] 50
Data Sheet

Unit price

16,59 €

Stock: 0
Further delivery:
CW 12/2025

Minimum order quantity 100 units or
multiples of 100.
