383-1-012-EBN-ZS

male connectors, angled, 383 by Garry

• according to DIN 41622 with solder contacts for PCB-mounting
• series: 383
• by Garry
• angled
• with solder pins
• 383-_-EBN_: 90° angeld type


• insulation shell: thermoplastic (UL94V-0)
• contact material: copper alloy, Ag 4µ
• rated current: 10A
• dielectric strength (for 1min.): 875VRMS
• temperature range: -20 ...+85°C
• max. process temperature: 230°C (5s)

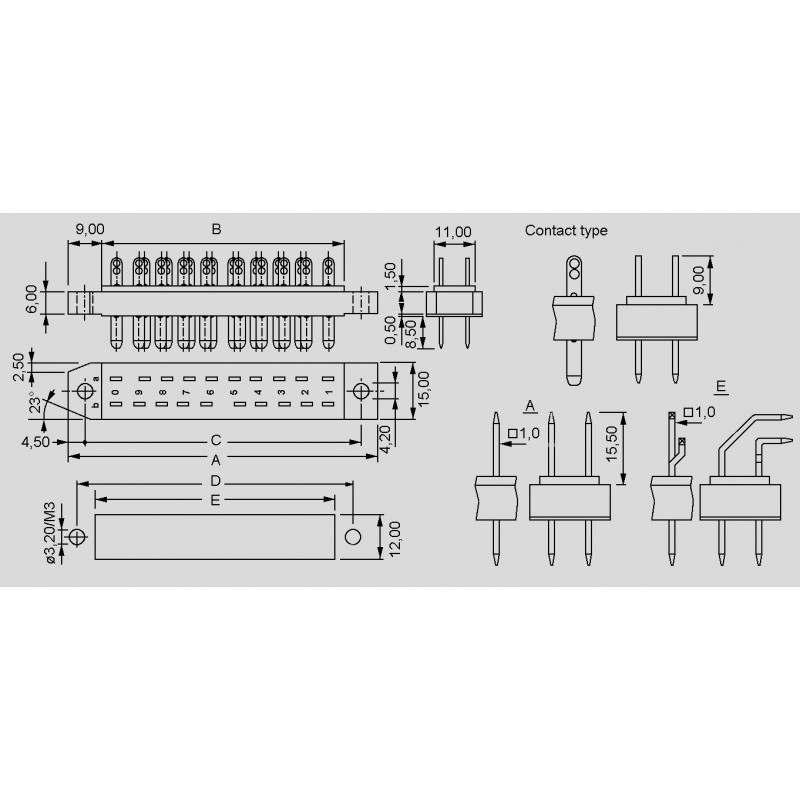

dimensions 383-1

383-1-012-EBN-ZS

42473 383-1-012-EBN-ZS 383-1-012-EBN-ZS male connectors, angled, 383 by Garry. • according to DIN 41622 with solder contacts for PCB-mounting• series: 383• by Garry• angled• with solder pins• 383-_-EBN_: 90° angeld type • insulation shell: thermoplastic (UL94V-0)• contact material: copper alloy, Ag 4µ• rated current: 10A• dielectric strength (for 1min.): 875VRMS• temperature range: -20 ...+85°C• max. process temperature: 230°C (5s)

Specifications

manufacturer
Manufacturer's name 383-1-012-EBN-ZS
Design solder pins
Number of poles 12
Contacts 90° angled
Rows 2
A [mm] 59
E [mm] 42
B [mm] 41
D [mm] 50
C [mm] 50
Data Sheet

Unit price

14,39 €

Stock: 150
Further delivery:
CW 12/2025
