> Passive elements>IDC connectors>IDC male headers, pitch: 2mm>MPE Garry pin headers, pitch 2,0mm, double-row, angled, 332 series>STL 22-02AGG-15-010U

Manufacturers

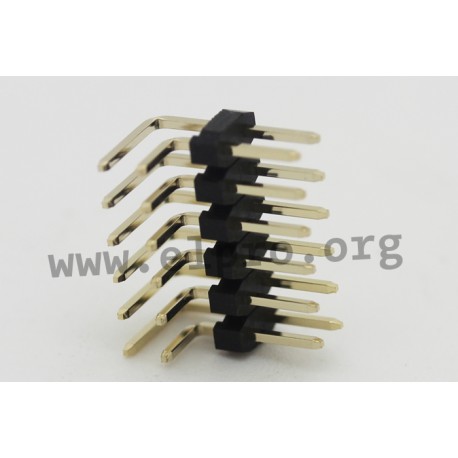

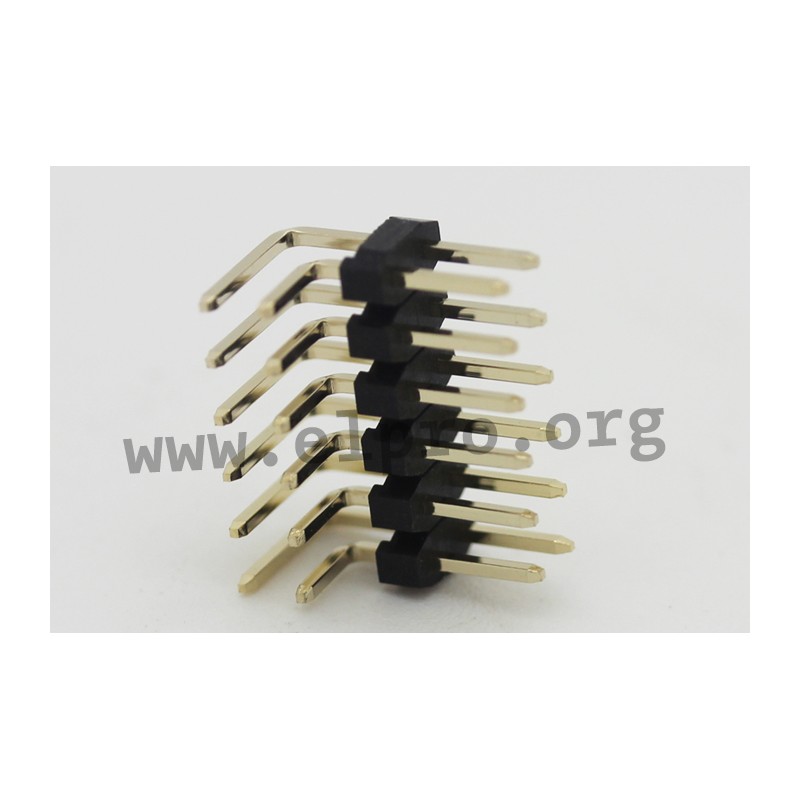

STL 22-02AGG-15-010U

pin headers

* by MPE Garry
* double-row, angled
* pitch: 2mm
* thermoplastic, UL94V-0
* contact material: copper alloy
* contact surface: gold
* rated current: 1.5A
* rated voltage: 100VRMS/150V DC
* temperature range: -40...+105°C
* peak (10s): +260°C
L

STL 22-02AGG-15-010U

32864 STL 22-02AGG-15-010U 332-3-010-0-F-XS0-0700 332-3-010-0-F-XS0-0700 pin headers. * by MPE Garry* double-row, angled* pitch: 2mm * thermoplastic, UL94V-0* contact material: copper alloy* contact surface: gold* rated current: 1.5A* rated voltage: 100VRMS/150V DC* temperature range: -40...+105°C* peak (10s): +260°C

Specifications

manufacturer
Manufacturer's name 332-3-010-0-...
Number of poles 2x5
Data Sheet

Unit price

0,318 €

Stock: 948
Further delivery:
CW 28/2025

Minimum order quantity 1 to 8 units or multiples of 10 plus 0 to 8 .
