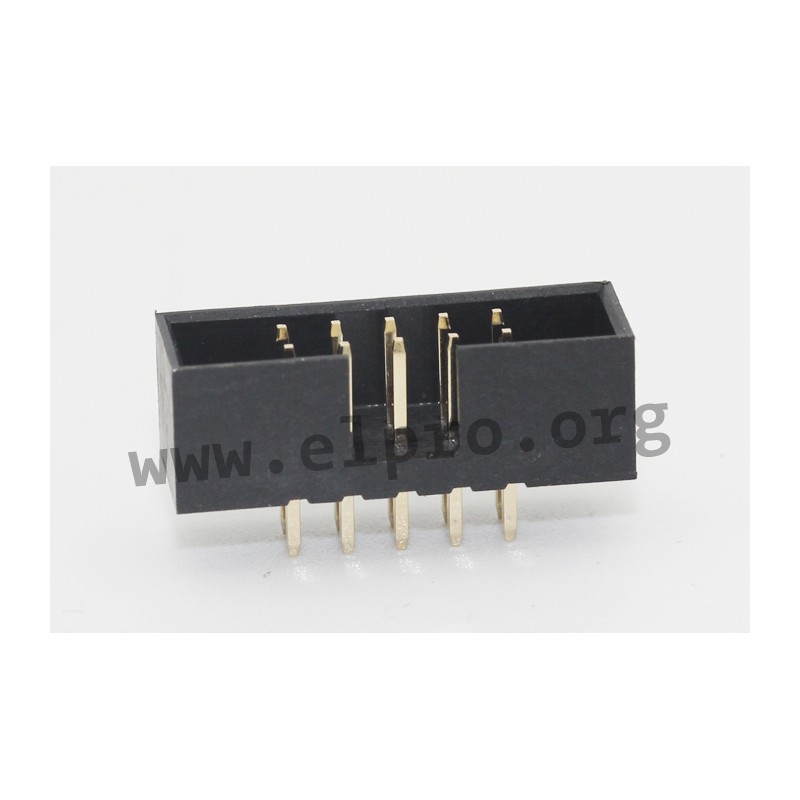

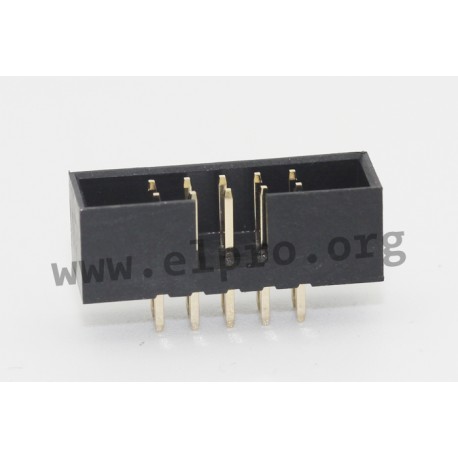

STL 22-0560LPGGT-10U

low profile box headers

* by MPE Garry
* for IDC connectors
* thermoplastic, UL94V-0
* contact material: brass, gold-plated
* rated current: 1.5A
* pitch: 2mm
* rated voltage: 100VRMS/150V DC
* operating temperature range: -40...+105°C
* peak (10s): +260°C
STL 22-0560LPGGT-10U

STL 22-0560LPGGT-10U

31946 STL 22-0560LPGGT-10U 155-1-010-0-F-BS0 155-1-010-0-F-BS0 low profile box headers. * by MPE Garry* for IDC connectors* thermoplastic, UL94V-0* contact material: brass, gold-plated* rated current: 1.5A* pitch: 2mm* rated voltage: 100VRMS/150V DC* operating temperature range: -40...+105°C* peak (10s): +260°C

Specifications

manufacturer
Manufacturer's name 155-1-010-0-F-BS0
Number of poles 10
A [mm] 8
Width [mm] 17,2
C [mm] 16,2
Data Sheet

Unit price

0,535 €

Stock: 631
Further delivery:
CW 24/2025

Minimum order quantity 1 to 2 units or multiples of 17 plus 0 to 2 .
