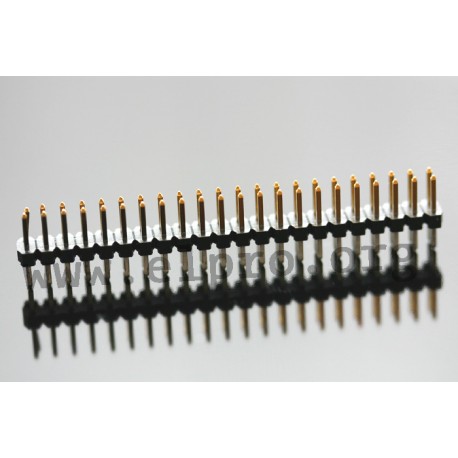

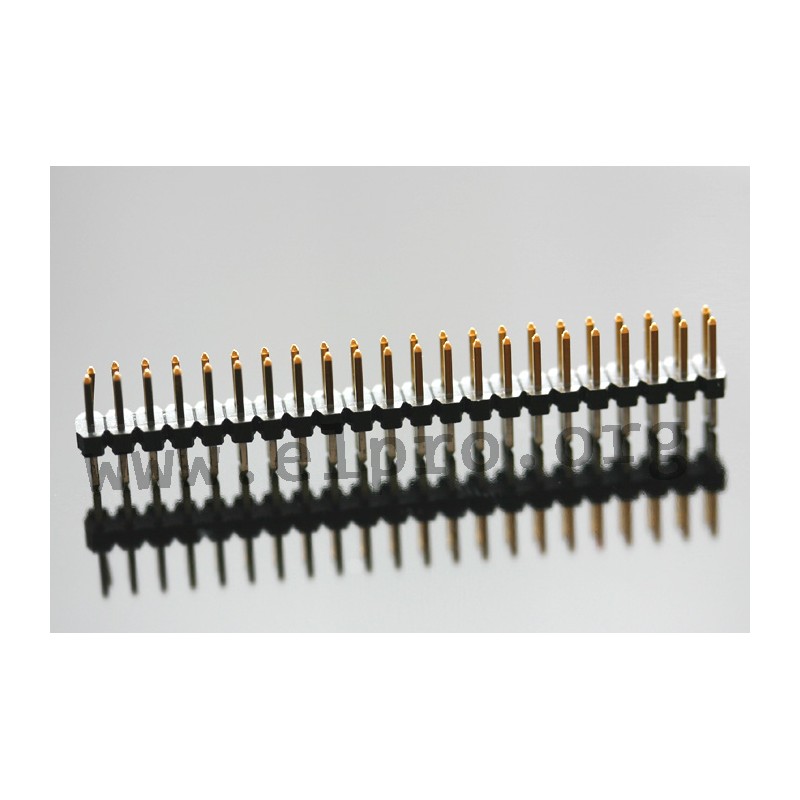

STL 22-0835-1,5-G-GT-044U

pin headers

• by MPE Garry
• double-row, straight
• pitch: 2 mm
• thermoplastic, UL94V-0
• contact material: copper alloy
• contact surface: selective gold
• rated current: 1.5A
• rated voltage: 100VRMS/150V DC
• temperature range: -40...+105°C
• peak (10s): +260°C

STL 22-0835-1,5-G-GT-044U

STL 22-0835-1,5-G-GT-044U

32874 STL 22-0835-1,5-G-GT-044U 150-3-044-0-S-XS0-0835 150-3-044-0-S-XS0-0835 pin headers. • by MPE Garry• double-row, straight• pitch: 2 mm• thermoplastic, UL94V-0• contact material: copper alloy• contact surface: selective gold• rated current: 1.5A• rated voltage: 100VRMS/150V DC• temperature range: -40...+105°C• peak (10s): +260°C

Specifications

manufacturer
Manufacturer's name 150-3-044-0-...
Number of poles 2x22

Unit price

1,37 €

Stock: 4162
Further delivery:
CW 24/2025

Minimum order quantity 1 to 2 units or multiples of 10 plus 0 to 2 .
