> Passive elements>IDC connectors>IDC male headers, pitch: 2mm>MPE Garry pin headers, pitch 2,0mm, double-row, straight, 150 series>STL 22-0835-1,5-G-GT-030U

Manufacturers

STL 22-0835-1,5-G-GT-030U

pin headers

• by MPE Garry
• double-row, straight
• pitch: 2 mm
• thermoplastic, UL94V-0
• contact material: copper alloy
• contact surface: selective gold
• rated current: 1.5A
• rated voltage: 100VRMS/150V DC
• temperature range: -40...+105°C
• peak (10s): +260°C

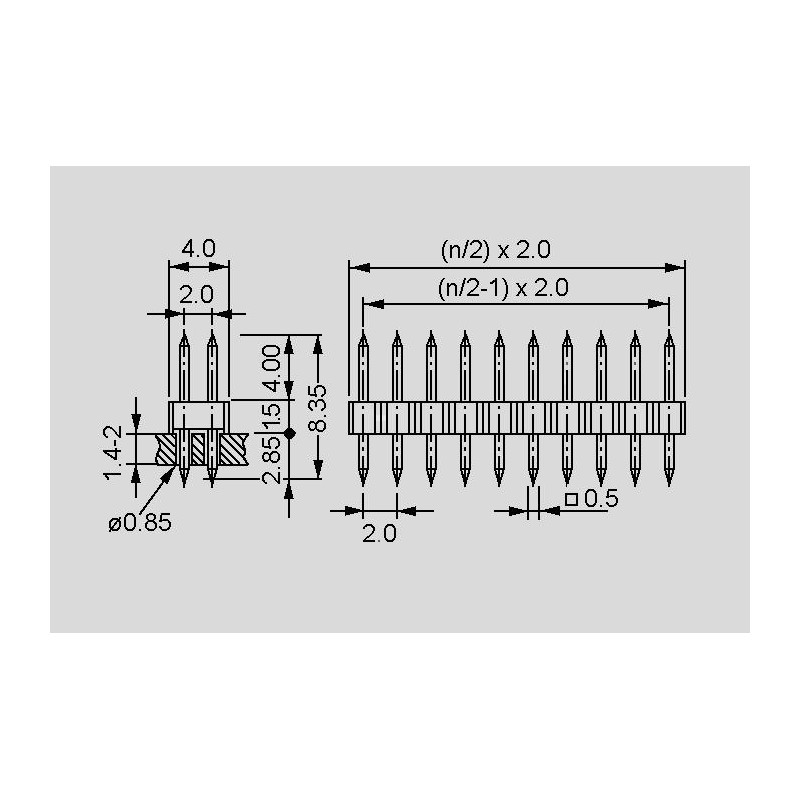

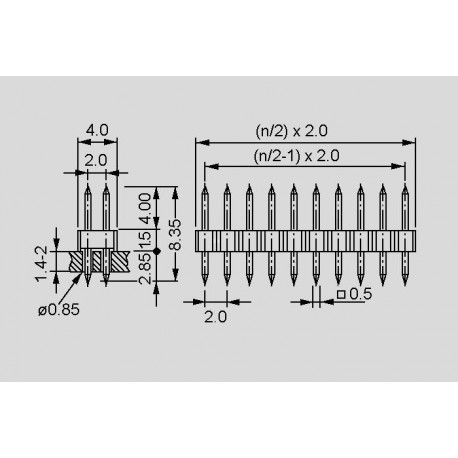

dimensions

STL 22-0835-1,5-G-GT-030U

32871 STL 22-0835-1,5-G-GT-030U 150-3-030-0-S-XS0-0835 150-3-030-0-S-XS0-0835 pin headers. • by MPE Garry• double-row, straight• pitch: 2 mm• thermoplastic, UL94V-0• contact material: copper alloy• contact surface: selective gold• rated current: 1.5A• rated voltage: 100VRMS/150V DC• temperature range: -40...+105°C• peak (10s): +260°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 150-3-030-0-...
Number of poles 2x15

Unit price

0,55 €

Stock: 5
