MLW 50 G

low profile box headers

• straight
• colour: black
• pitch: 2.54mm
• PBT +30% glass fiber, UL94V-0
• contacts: brass
• contact surface: gold over nickel or tin
• rated current: 1A
• contact resistance (1A): 10mW
• insulation resistance (500V DC), min.: 1000M&Omega:
• temperature range: -55...+105°C

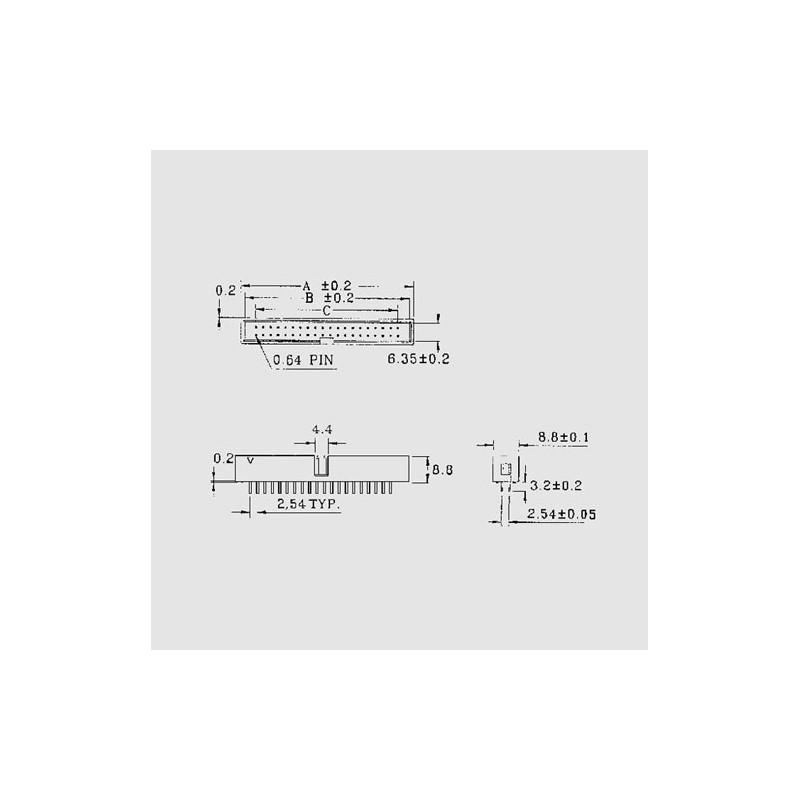

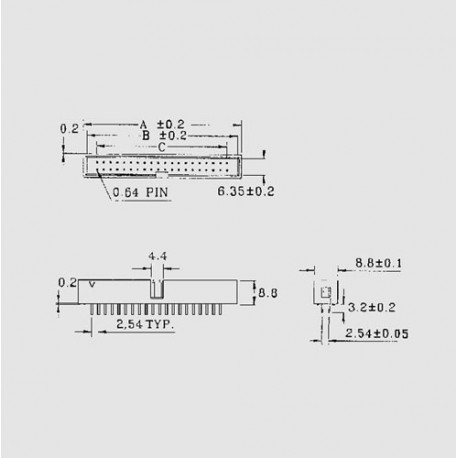

dimensions

MLW 50 G

9683 MLW 50 G 093-1-050-0-F-BS0 093-1-050-0-F-BS0 low profile box headers. • straight• colour: black• pitch: 2.54mm• PBT +30% glass fiber, UL94V-0• contacts: brass• contact surface: gold over nickel or tin• rated current: 1A• contact resistance (1A): 10mW• insulation resistance (500V DC), min.: 1000M&Omega:• temperature range: -55...+105°C

Specifications

manufacturer
Manufacturer's name 093-1-050-0-F-BS0
Number of poles 50
A [mm] 71,1
Width [mm] 68,9
C [mm] 60,96

Unit price

0,868 €

Stock: 1862
Next incoming goods:
CW 07/2025
1120 units

Further delivery:
CW 28/2025

Minimum order quantity 1 to 2 units or multiples of 10 plus 0 to 2 .
