MLW 26 G

low profile box headers

• straight
• colour: black
MLW 06 G: blue
• pitch: 2.54mm
• PBT +30% glass fiber, UL94V-0
• contacts: brass
• contact surface: gold over nickel or tin
• rated current: 1A
• contact resistance (1A): 10mW
• insulation resistance (500V DC), min.: 1000M&Omega:
• temperature range: -55...+105°C

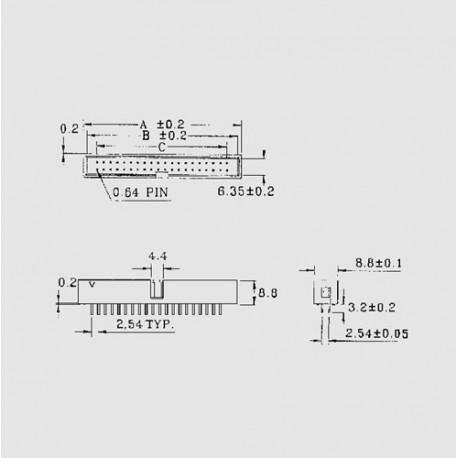

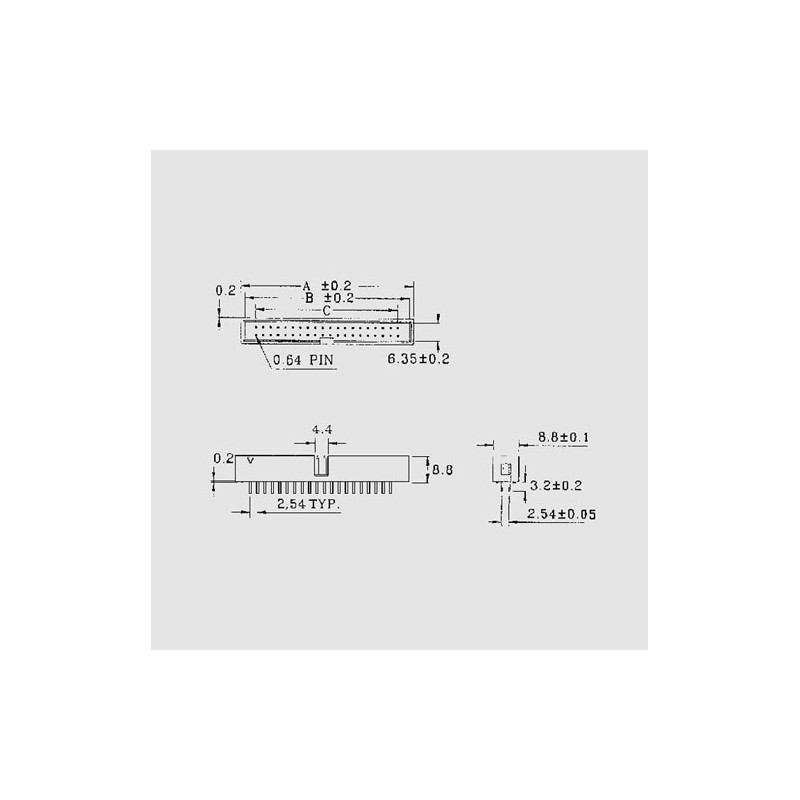

dimensions

MLW 26 G

9680 MLW 26 G 093-1-026-0-F-BS0 093-1-026-0-F-BS0 low profile box headers. * straight* colour: blackMLW 06 G: blue* pitch: 2.54mm* PBT +30% glass fiber, UL94V-0* contacts: brass* contact surface: gold over nickel or tin* rated current: 1A* contact resistance (1A): 10mW* insulation resistance (500V DC), min.: 1000M&Omega:* temperature range: -55...+105°C

Specifications

manufacturer
Manufacturer's name 093-1-026-0-F-BS0
Number of poles 26
A [mm] 40,62
Width [mm] 38,42
C [mm] 30,48

Unit price

0,531 €

Stock: 10.170
Next incoming goods:
CW 37/2025
2.950 units

Further delivery:
CW 48/2025

Minimum order quantity 10 units or
multiples of 10.
