MLW 20 G

low profile box headers

• straight
• colour: black
• pitch: 2.54mm
• PBT +30% glass fiber, UL94V-0
• contacts: brass
• contact surface: gold over nickel or tin
• rated current: 1A
• contact resistance (1A): 10mW
• insulation resistance (500V DC), min.: 1000M&Omega:
• temperature range: -55...+105°C

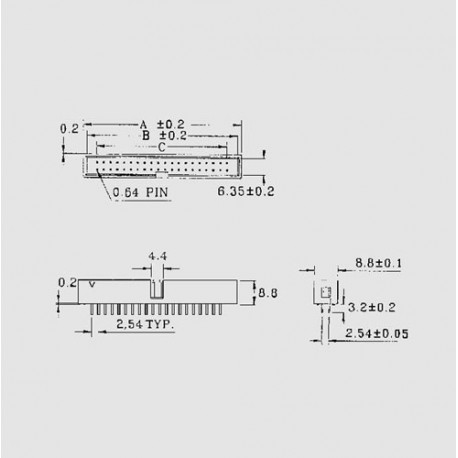

dimensions

MLW 20 G

9679 MLW 20 G 093-1-020-0-F-BS0 093-1-020-0-F-BS0 low profile box headers. • straight• colour: black• pitch: 2.54mm• PBT +30% glass fiber, UL94V-0• contacts: brass• contact surface: gold over nickel or tin• rated current: 1A• contact resistance (1A): 10mW• insulation resistance (500V DC), min.: 1000M&Omega:• temperature range: -55...+105°C

Specifications

manufacturer
Manufacturer's name 093-1-020-0-F-BS0
Number of poles 20
A [mm] 33
Width [mm] 30,8
C [mm] 22,85

Unit price

0,35 €

Stock: 11310
Next incoming goods:
CW 07/2025
25920 units

Further delivery:
CW 24/2025

Minimum order quantity 10 units or
multiples of 10.
