> Passive elements>IDC connectors>IDC male headers, pitch: 2.54mm>MPE Garry box headers, pitch 2,54mm, straight, 093 series>MLW 06 G

Manufacturers

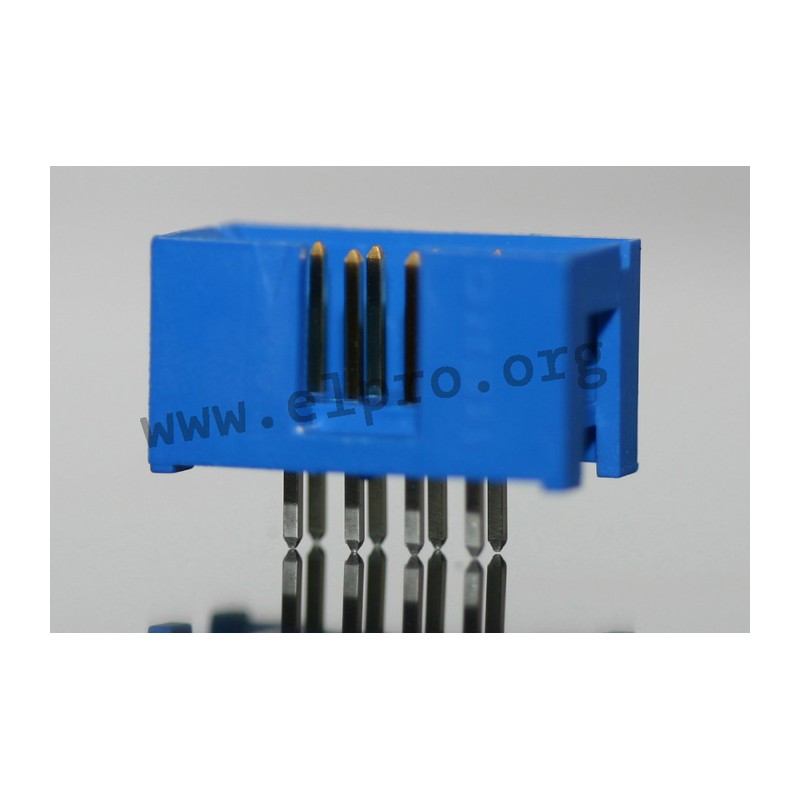

MLW 06 G

low profile box headers

• straight
• colour: blue
• pitch: 2.54mm
• PBT +30% glass fiber, UL94V-0
• contacts: brass
• contact surface: gold over nickel or tin
• rated current: 1A
• contact resistance (1A): 10mW
• insulation resistance (500V DC), min.: 1000M&Omega:
• temperature range: -55...+105°C

MLW 06 G

MLW 06 G

9674 MLW 06 G 093-1-006-0-F-BS0 093-1-006-0-F-BS0 low profile box headers. • straight• colour: blue• pitch: 2.54mm• PBT +30% glass fiber, UL94V-0• contacts: brass• contact surface: gold over nickel or tin• rated current: 1A• contact resistance (1A): 10mW• insulation resistance (500V DC), min.: 1000M&Omega:• temperature range: -55...+105°C

Specifications

manufacturer
Manufacturer's name 093-1-006-0-F-BS0
Number of poles 6
A [mm] 15,22
Width [mm] 13,02
C [mm] 5,08

Unit price

0,668 €

Stock: 1018
Further delivery:
CW 28/2025

Minimum order quantity 1 to 8 units or multiples of 10 plus 0 to 8 .
