MLW 40 A

low profile

* angled
* colour: black
* pitch: 2.54mm
* PBT +30% glass fiber, UL94V-0
* contacts: brass
* contact surface: gold over nickel or tin
* rated current: 1A
* contact resistance (1A): 10mW
* insulation resistance (500V DC), min.: 1000MΩ
* temperature range: -55...+105°C
MLW _ A

MLW 40 A

9670 MLW 40 A 093-2-040-0-F-BS0 093-2-040-0-F-BS0 low profile. * angled* colour: black* pitch: 2.54mm* PBT +30% glass fiber, UL94V-0* contacts: brass* contact surface: gold over nickel or tin* rated current: 1A* contact resistance (1A): 10mW* insulation resistance (500V DC), min.: 1000MΩ* temperature range: -55...+105°C

Specifications

manufacturer
Manufacturer's name 093-2-040-0-F-BS0
Number of poles 40

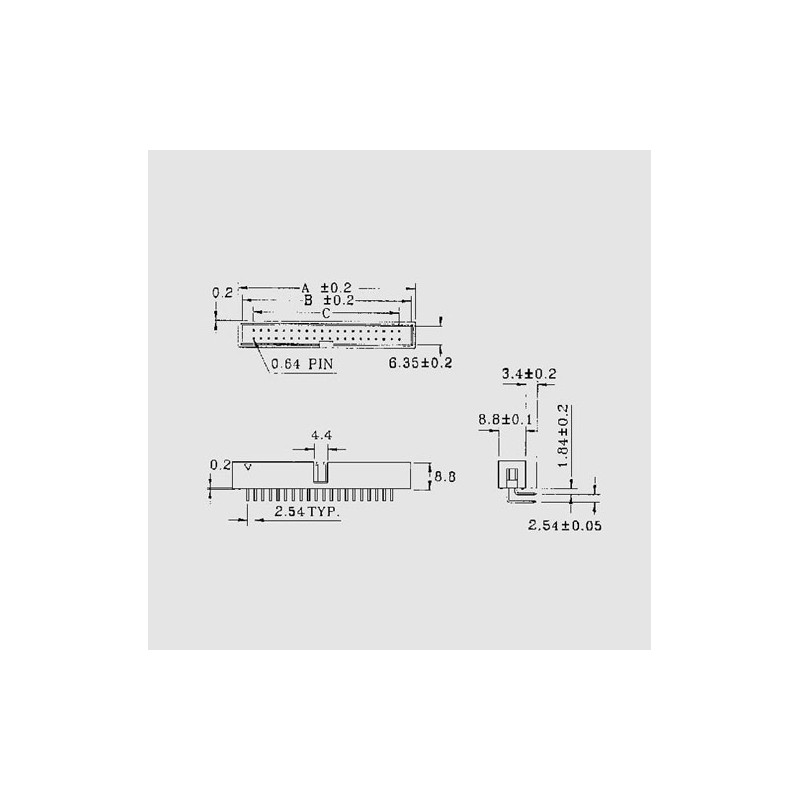

A [mm] 58,4
Width [mm] 56,2
C [mm] 48,26

Unit price

1,89 €

Stock: 397
Next incoming goods:
CW 17/2025
1000 units

Further delivery:
CW 24/2025

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
