Manufacturers

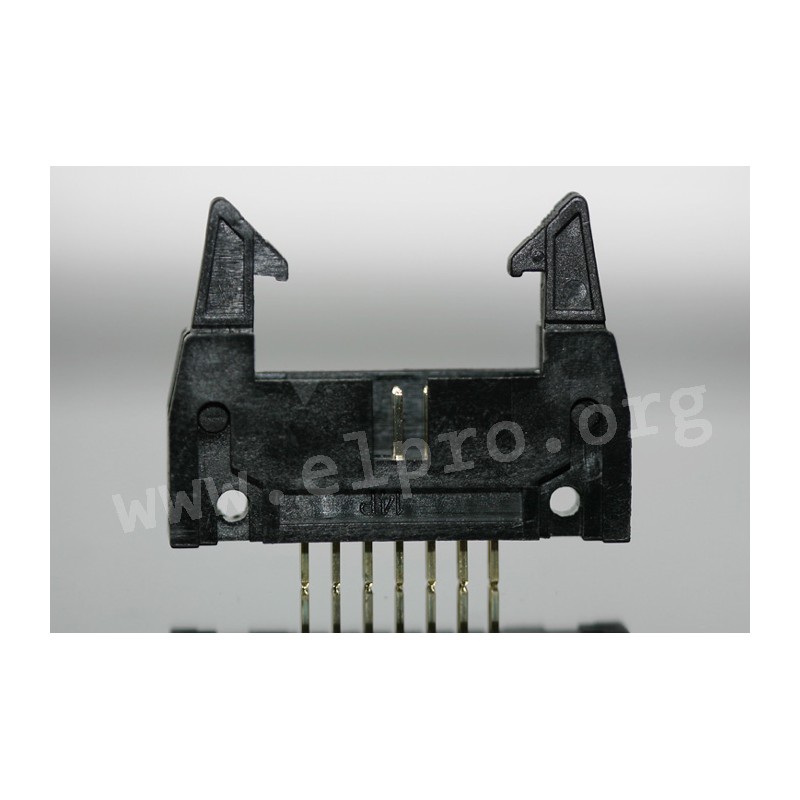

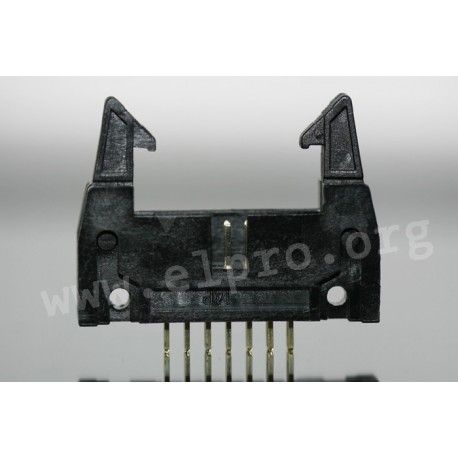

ML 26 GL LC

box headers

• straight
• colour: black
• pitch: 2.54mm
• polyester, fibreglass-reinforced UL94V-0
• contact material: phosphor-bronze
• contact surface: selective gold over nickel
• rated current: 1A
• test voltage: 1000Veff
• insulation resistance, min.: 1000MΩ
• temperature range: -20...+70°C
ML 26 GL LC

ML 26 GL LC

28163 ML 26 GL LC 092-2-026-0-F-KS0 092-2-026-0-F-KS0 box headers. * straight* colour: black* pitch: 2.54mm* polyester, fibreglass-reinforced UL94V-0* contact material: phosphor-bronze* contact surface: selective gold over nickel* rated current: 1A* test voltage: 1000Veff* insulation resistance, min.: 1000MΩ* temperature range: -20...+70°C

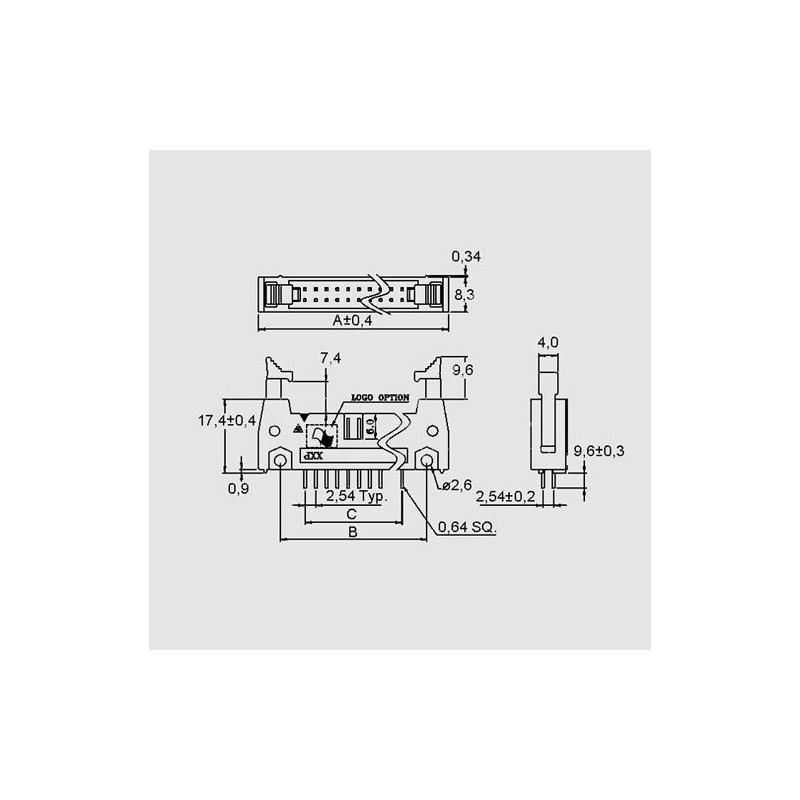

Specifications

manufacturer
Manufacturer's name 092-2-026-0-F-KS0
Number of poles 26
A [mm] 52,32
Width [mm] 42,16
C [mm] 30,48

Unit price

0,686 €

Stock: 7.313
Further delivery:
CW 43/2025

Minimum order quantity 1 to 5 units or multiples of 12 plus 0 to 5 .
