> Passive elements>IDC connectors>IDC male headers, pitch: 2.54mm>MPE Garry box headers, pitch 2,54mm, straight, low cost, pitch with locking levers, 093 series>ML 16 GL LC

Manufacturers

ML 16 GL LC

box headers

• straight
• colour: black
• pitch: 2.54mm
• polyester, fibreglass-reinforced UL94V-0
• contact material: phosphor-bronze
• contact surface: selective gold over nickel
• rated current: 1A
• test voltage: 1000Veff
• insulation resistance, min.: 1000MΩ
• temperature range: -20...+70°C
ML 16 GL LC

ML 16 GL LC

28161 ML 16 GL LC 092-2-016-0-F-KS0 092-2-016-0-F-KS0 box headers. * straight* colour: black* pitch: 2.54mm* polyester, fibreglass-reinforced UL94V-0* contact material: phosphor-bronze* contact surface: selective gold over nickel* rated current: 1A* test voltage: 1000Veff* insulation resistance, min.: 1000MΩ* temperature range: -20...+70°C

Specifications

manufacturer
Manufacturer's name 092-2-016-0-F-KS0
Number of poles 16

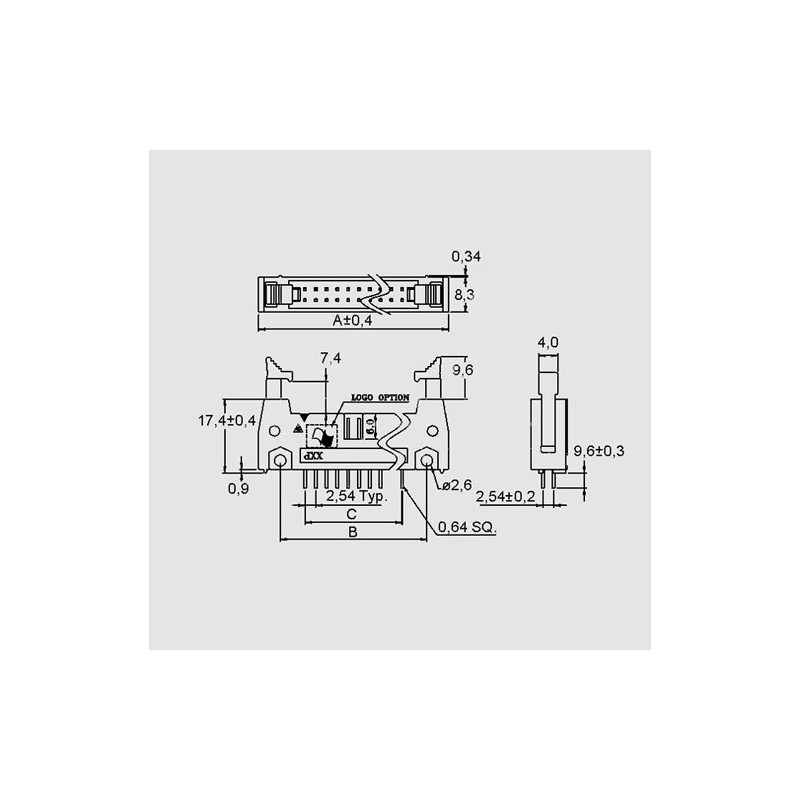

A [mm] 39,62
Width [mm] 29,46
C [mm] 17,78

Unit price

0,634 €

Stock: 8.608
Next incoming goods:
CW 16/2025
1.680 units

Further delivery:
CW 43/2025

Minimum order quantity 1 to 8 units or multiples of 10 plus 0 to 8 .
