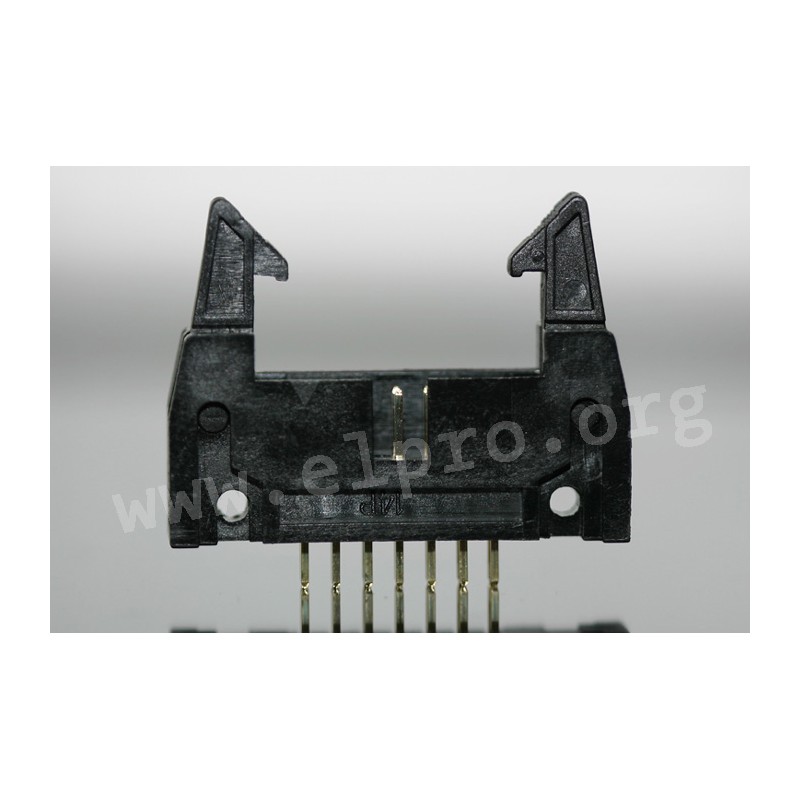

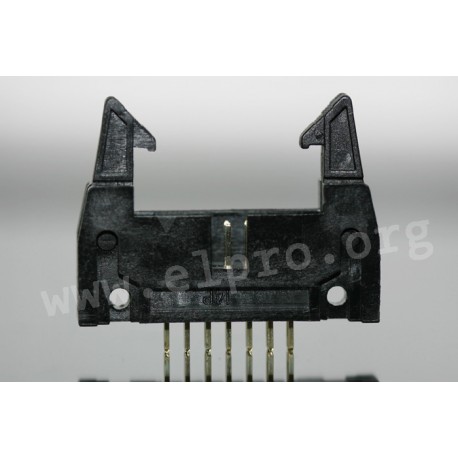

ML 14 GL LC

box headers

• straight
• colour: black
• pitch: 2.54mm
• polyester, fibreglass-reinforced UL94V-0
• contact material: phosphor-bronze
• contact surface: selective gold over nickel
• rated current: 1A
• test voltage: 1000Veff
• insulation resistance, min.: 1000MΩ
• temperature range: -20...+70°C
ML 14 GL LC

ML 14 GL LC

28160 ML 14 GL LC 092-2-014-0-F-KS0 092-2-014-0-F-KS0 box headers. * straight* colour: black* pitch: 2.54mm* polyester, fibreglass-reinforced UL94V-0* contact material: phosphor-bronze* contact surface: selective gold over nickel* rated current: 1A* test voltage: 1000Veff* insulation resistance, min.: 1000MΩ* temperature range: -20...+70°C

Specifications

manufacturer
Manufacturer's name 092-2-014-0-F-KS0
Number of poles 14

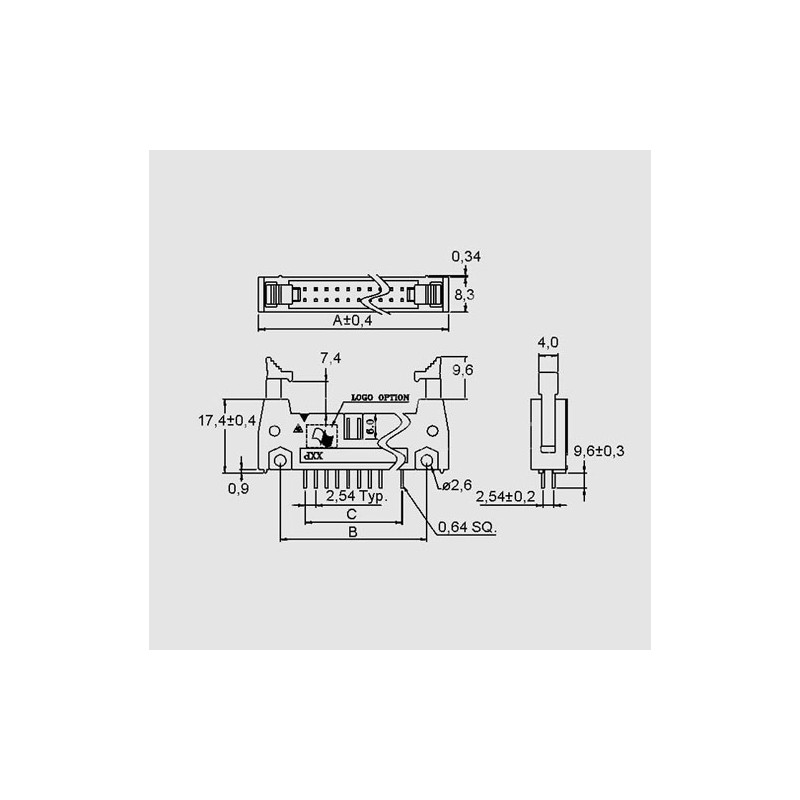

A [mm] 37,08
Width [mm] 26,92
C [mm] 15,24

Unit price

0,555 €

Stock: 614
Next incoming goods:
CW 16/2025
1.320 units

Further delivery:
CW 43/2025

Minimum order quantity 1 unit or multiples of 11 plus 0 to 1 .
