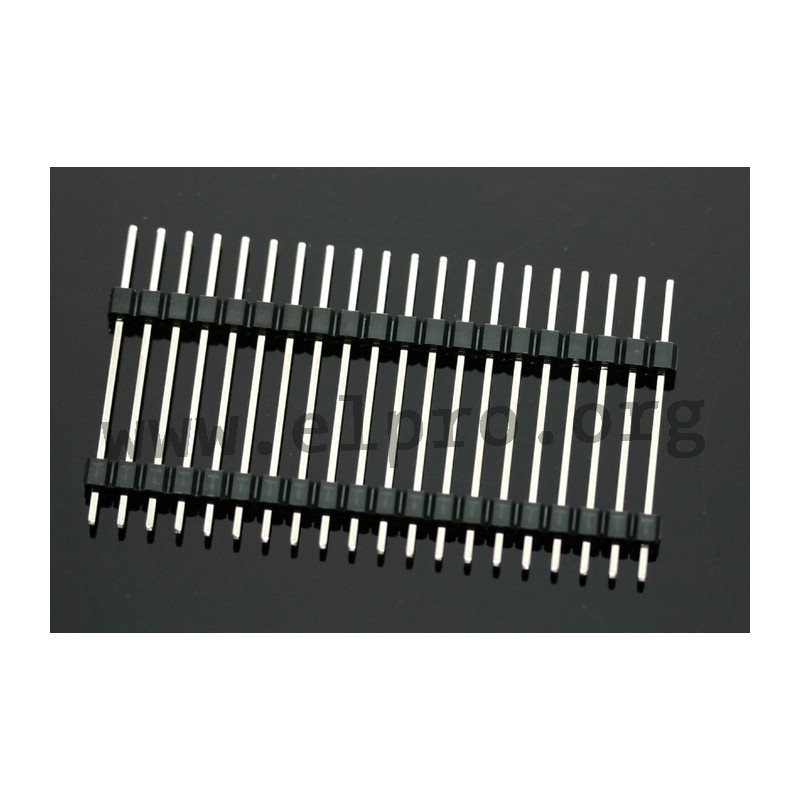

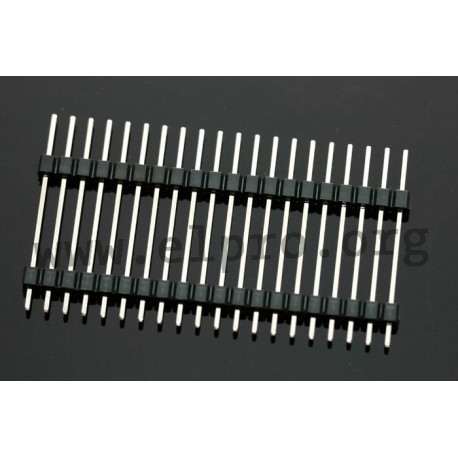

STL 1-2900DTT-020U

high quality sandwich pin headers

* by MPE Garry
* single-row, straight
* pitch: 2.54mm
* thermoplastic, UL94V-0
* contact material (DIN17660): CuZn (brass)
* contact surface: tin-plated, unleaded
* rated current: 3A
* test voltage: 250V AC
* insulation resistance, min.: 500MΩ
* temperature range: -40...+105°C
* peak (10s): +260°C
* solderability: IEC 68-2-20 Tb
* pin cross section: 0.635x0.635mm

STL 1-2900DTT-020U

STL 1-2900DTT-020U

32890 STL 1-2900DTT-020U 089-1-020-0-T-XS0-2900 089-1-020-0-T-XS0-2900 high quality sandwich pin headers. * by MPE Garry* single-row, straight* pitch: 2.54mm* thermoplastic, UL94V-0* contact material (DIN17660): CuZn (brass)* contact surface: tin-plated, unleaded* rated current: 3A* test voltage: 250V AC* insulation resistance, min.: 500MΩ* temperature range: -40...+105°C* peak (10s): +260°C* solderability: IEC 68-2-20 Tb* pin cross section: 0.635x0.635mm

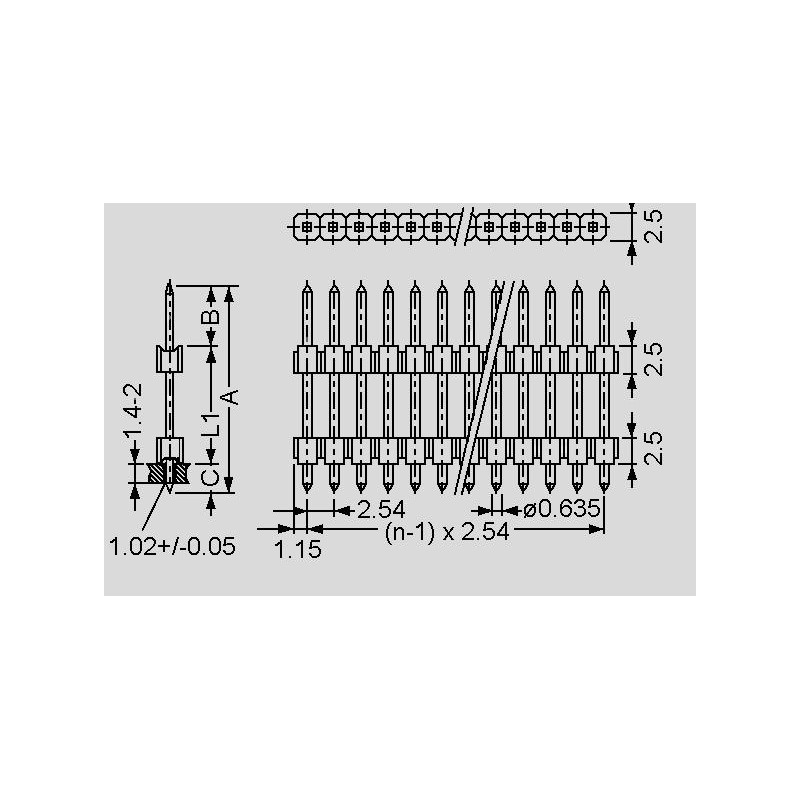

Specifications

manufacturer
Manufacturer's name 089-1-020-0-...
Number of poles 20
A [mm] 29
Width [mm] 6,5
L1 [mm] 19,2
C [mm] 3,3
Data Sheet

Unit price

0,605 €

Stock: 10241
Next incoming goods:
CW 49/2024
12300 units

Further delivery:
CW 24/2025

Minimum order quantity 1 unit or multiples of 10 plus 0 to 1 .
