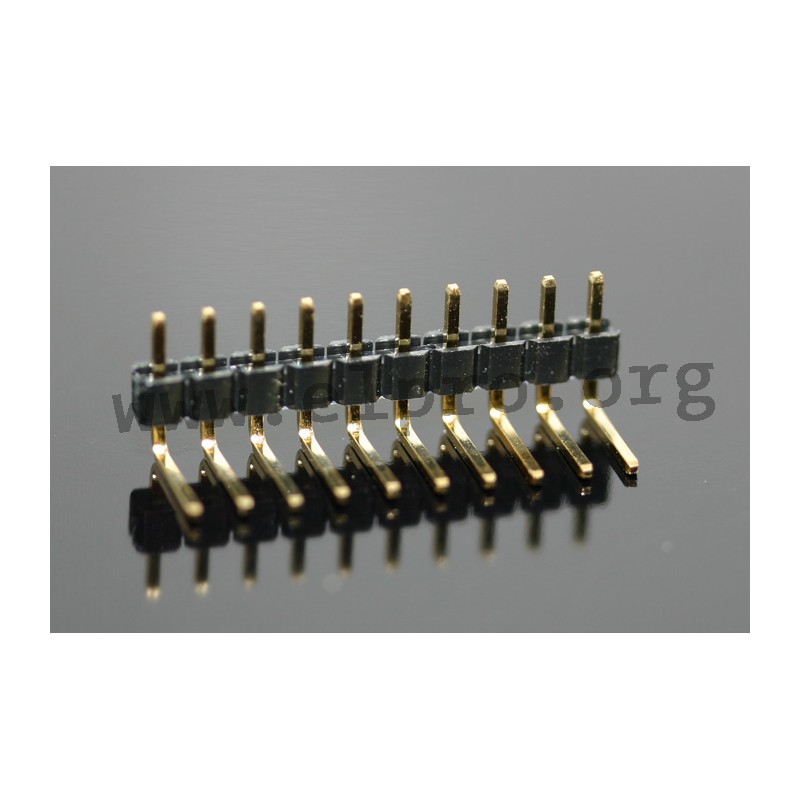

WWS 08 A gold 2,54

high quality pin headers

• single row, angled
• pitch: 2.54mm
• thermoplastic, UL94V-0
• contact material (DIN17660): CuZn
• rated current: 3A
• pin cross section: 0.635x0.635mm
• insulation resistance(500V DC): 1000MΩ
• rated voltage: 250VAC

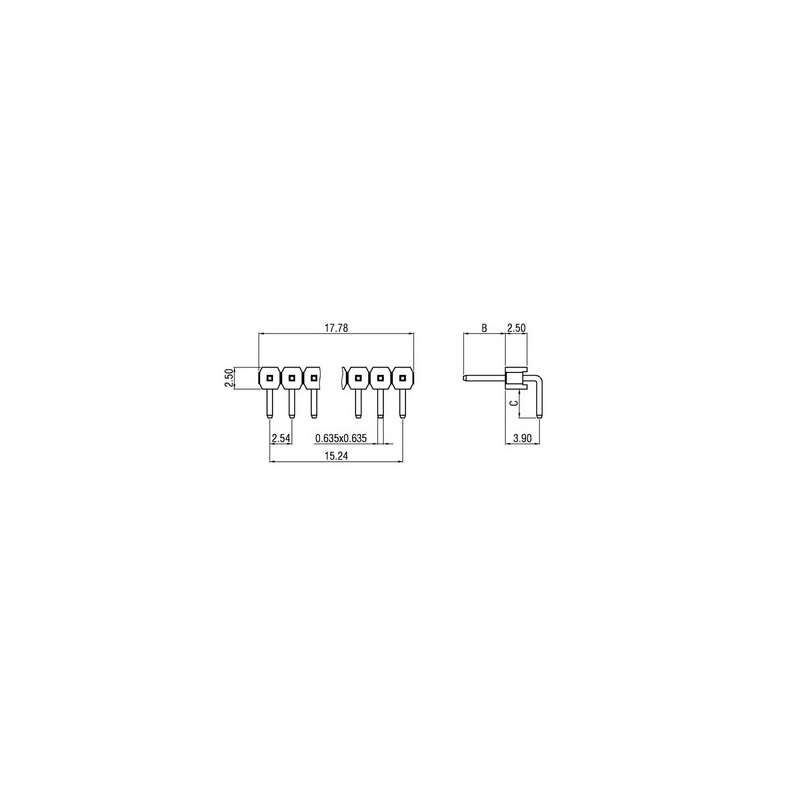

• dimensions
A: 13.9mm
B: 6.1mm
C: 3.3mm
• temperature range: - 55...+125°C

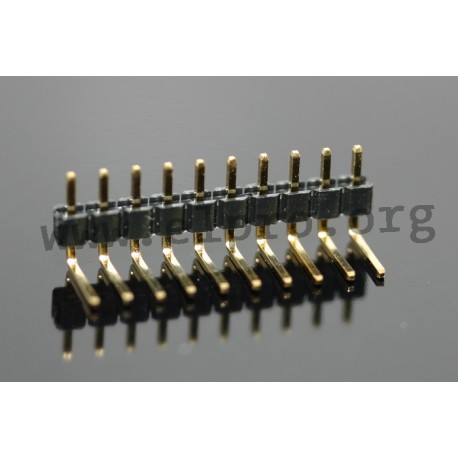

WWS _ A gold 2,54

WWS 08 A gold 2,54

34424 WWS 08 A gold 2,54 WWS 08 A gold 2,54 high quality pin headers. • single row, angled• pitch: 2.54mm• thermoplastic, UL94V-0• contact material (DIN17660): CuZn• rated current: 3A• pin cross section: 0.635x0.635mm• insulation resistance(500V DC): 1000MΩ• rated voltage: 250VAC• dimensionsA: 13.9mmB: 6.1mmC: 3.3mm• temperature range: - 55...+125°C

Discontinued items. Only remainder of stock available.

Specifications

Type vergoldet
Number of poles 8
Data Sheet

Unit price

0,10 €

Stock: 1
