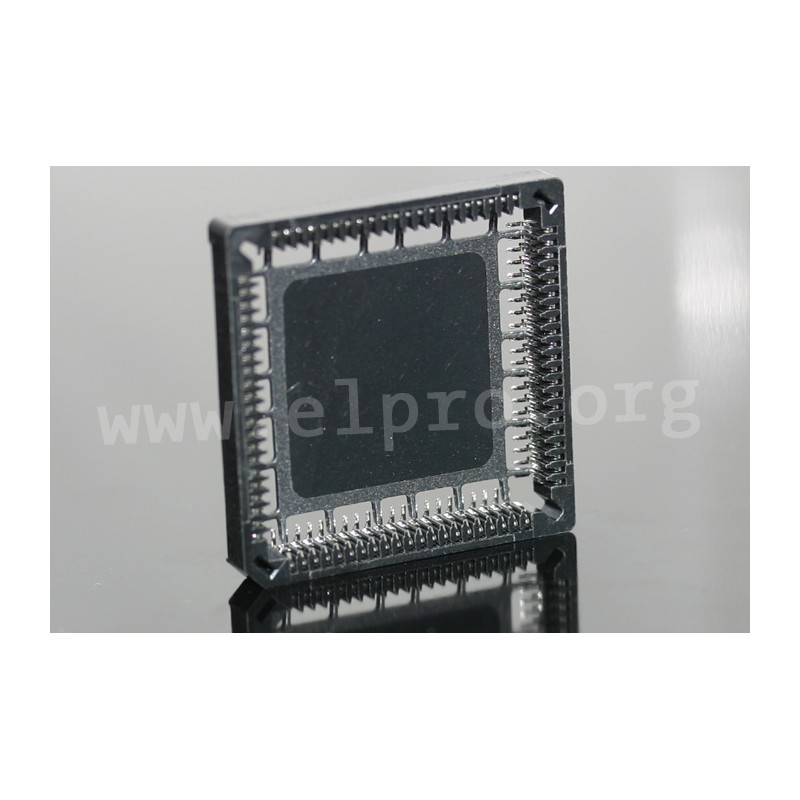

PLCC 84 SMD

SMD PLCC sockets

• PLCC sockets eith SMD terminations (acc. JEDEC MO-047/MO-025)
• offering the same PCB-layout as the IC-package
• board termination: SMD gull wing
• high-temperature-resistant
• insulation shell: thermoplast, black (UL94V-0)
PLCC52SMD-TH2: thermoplast, brown (UL94V-0)
• contact material: CuSn (phosphor bronze)
• rated current: 1A
• rated voltage: 100VRMS
• withstand voltage (1min.): 600VRMS
• temperature range: -40...+85°C

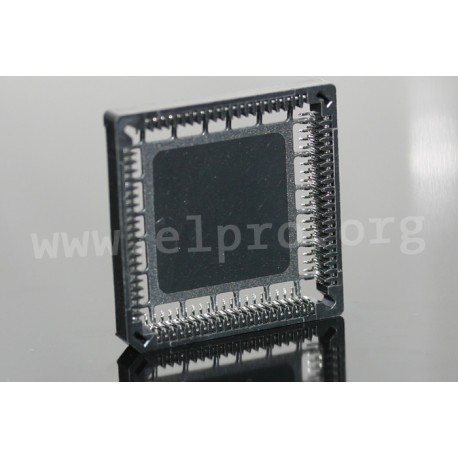

PLCC 84 SMD

PLCC 84 SMD

14588 PLCC 84 SMD 082-1-084-0-XT0 082-1-084-0-XT0 SMD PLCC sockets. * PLCC sockets eith SMD terminations (acc. JEDEC MO-047/MO-025)* offering the same PCB-layout as the IC-package* board termination: SMD gull wing* high-temperature-resistant* insulation shell: thermoplast, black (UL94V-0)PLCC52SMD-TH2: thermoplast, brown (UL94V-0)* contact material: CuSn (phosphor bronze)* rated current: 1A* rated voltage: 100VRMS* withstand voltage (1min.): 600VRMS* temperature range: -40...+85°C

Specifications

manufacturer
Manufacturer's name 082-1-084-0-XT0

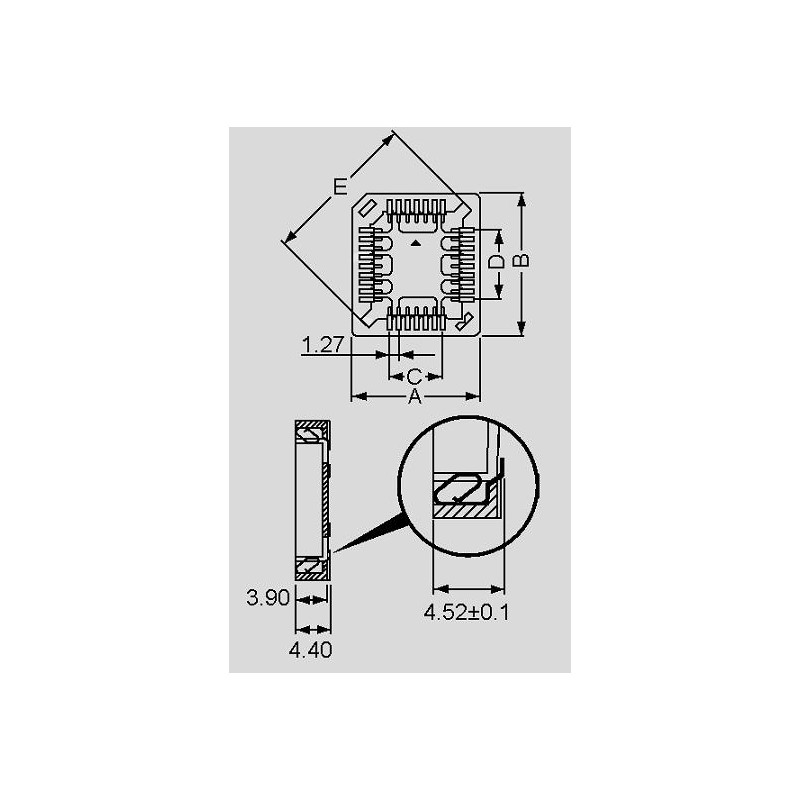

E [mm] 45,5mm
Number of poles 84
A [mm] 35,9
Width [mm] 35,9
E [mm] 45,5
D [mm] 25,4
C [mm] 25,4
Data Sheet

Unit price

1,26 €

Stock: 53
Next incoming goods:
CW 24/2025
3.010 units

Further delivery:
CW 41/2025

Minimum order quantity 1 to 11 units or multiples of 14 plus 0 to 11 .
