PLCC 68 SMD

SMD PLCC sockets

* PLCC sockets eith SMD terminations (acc. JEDEC MO-047/MO-025)
* offering the same PCB-layout as the IC-package
* board termination: SMD gull wing
* high-temperature-resistant
* insulation shell: thermoplast, black (UL94V-0)
PLCC52SMD-TH2: thermoplast, brown (UL94V-0)
* contact material: CuSn (phosphor bronze)
* rated current: 1A
* rated voltage: 100VRMS
* withstand voltage (1min.): 600VRMS
* temperature range: -40...+85°C

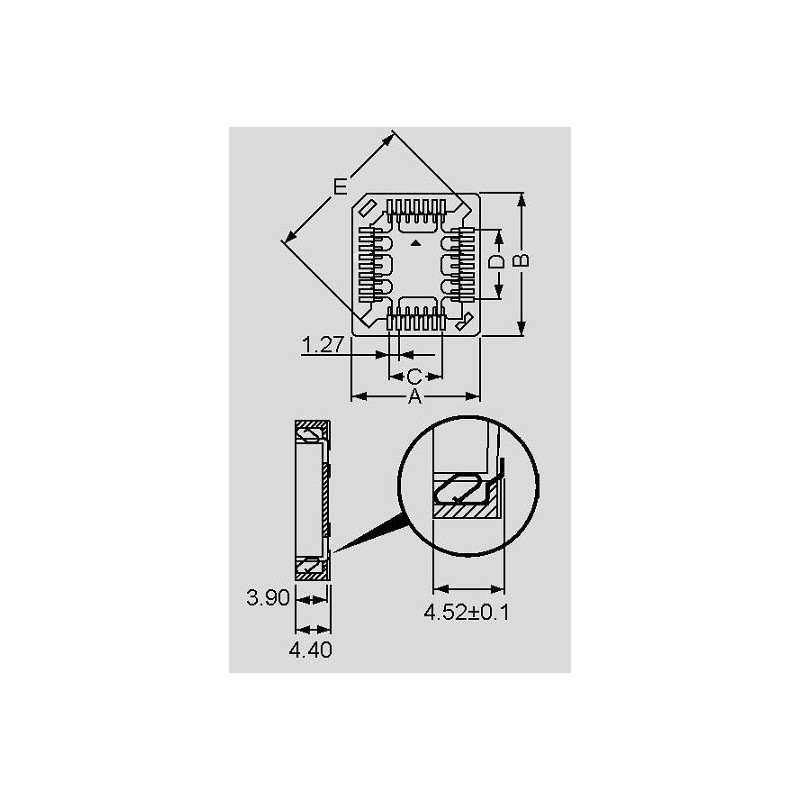

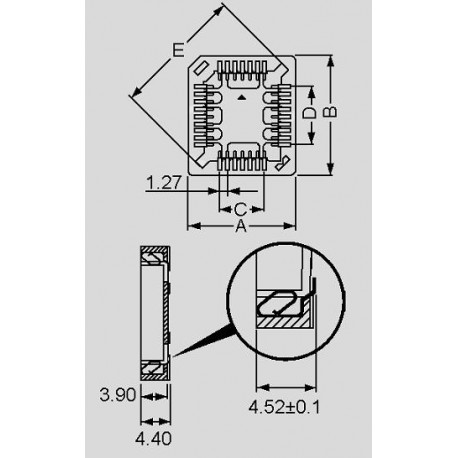

dimensions

PLCC 68 SMD

14587 PLCC 68 SMD 082-1-068-0-XT0 082-1-068-0-XT0 SMD PLCC sockets. * PLCC sockets eith SMD terminations (acc. JEDEC MO-047/MO-025)* offering the same PCB-layout as the IC-package* board termination: SMD gull wing* high-temperature-resistant* insulation shell: thermoplast, black (UL94V-0)PLCC52SMD-TH2: thermoplast, brown (UL94V-0)* contact material: CuSn (phosphor bronze)* rated current: 1A* rated voltage: 100VRMS* withstand voltage (1min.): 600VRMS* temperature range: -40...+85°C

Specifications

manufacturer
Manufacturer's name 082-1-068-0-XT0
E [mm] 38,3mm
Number of poles 68
A [mm] 30,82
Width [mm] 30,82
E [mm] 38,3
D [mm] 20,32
C [mm] 20,32
Data Sheet

Unit price

1,29 €

Stock: 1544
Further delivery:
CW 22/2025

Minimum order quantity 1 to 8 units or multiples of 16 plus 0 to 8 .
