PLCC 44 SMD

SMD PLCC sockets

* PLCC sockets eith SMD terminations (acc. JEDEC MO-047/MO-025)
* offering the same PCB-layout as the IC-package
* board termination: SMD gull wing
* high-temperature-resistant
* insulation shell: thermoplast, black (UL94V-0)
PLCC52SMD-TH2: thermoplast, brown (UL94V-0)
* contact material: CuSn (phosphor bronze)
* rated current: 1A
* rated voltage: 100VRMS
* withstand voltage (1min.): 600VRMS
* temperature range: -40...+85°C

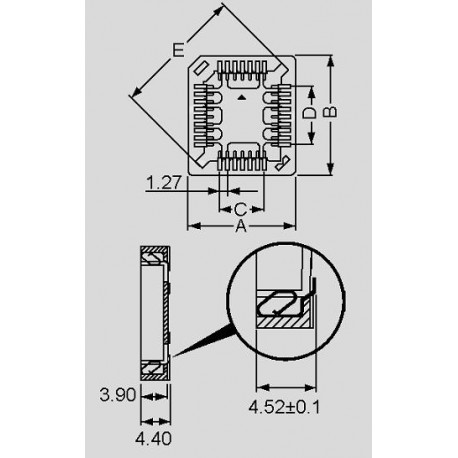

dimensions

PLCC 44 SMD

14585 PLCC 44 SMD 082-1-044-0-XT0 082-1-044-0-XT0 SMD PLCC sockets. * PLCC sockets eith SMD terminations (acc. JEDEC MO-047/MO-025)* offering the same PCB-layout as the IC-package* board termination: SMD gull wing* high-temperature-resistant* insulation shell: thermoplast, black (UL94V-0)PLCC52SMD-TH2: thermoplast, brown (UL94V-0)* contact material: CuSn (phosphor bronze)* rated current: 1A* rated voltage: 100VRMS* withstand voltage (1min.): 600VRMS* temperature range: -40...+85°C

Specifications

manufacturer
Manufacturer's name 082-1-044-0-XT0
E [mm] 27,5mm
Number of poles 44
A [mm] 22,86
Width [mm] 22,86
E [mm] 27,5
D [mm] 12,7
C [mm] 12,7
Data Sheet

Unit price

0,761 €

Stock: 12581
Further delivery:
CW 22/2025

Minimum order quantity 21 units or
multiples of 21.
