PLCC 32 SMD

SMD PLCC sockets

* PLCC sockets eith SMD terminations (acc. JEDEC MO-047/MO-025)
* offering the same PCB-layout as the IC-package
* board termination: SMD gull wing
* high-temperature-resistant
* insulation shell: thermoplast, black (UL94V-0)
PLCC52SMD-TH2: thermoplast, brown (UL94V-0)
* contact material: CuSn (phosphor bronze)
* rated current: 1A
* rated voltage: 100VRMS
* withstand voltage (1min.): 600VRMS
* temperature range: -40...+85°C

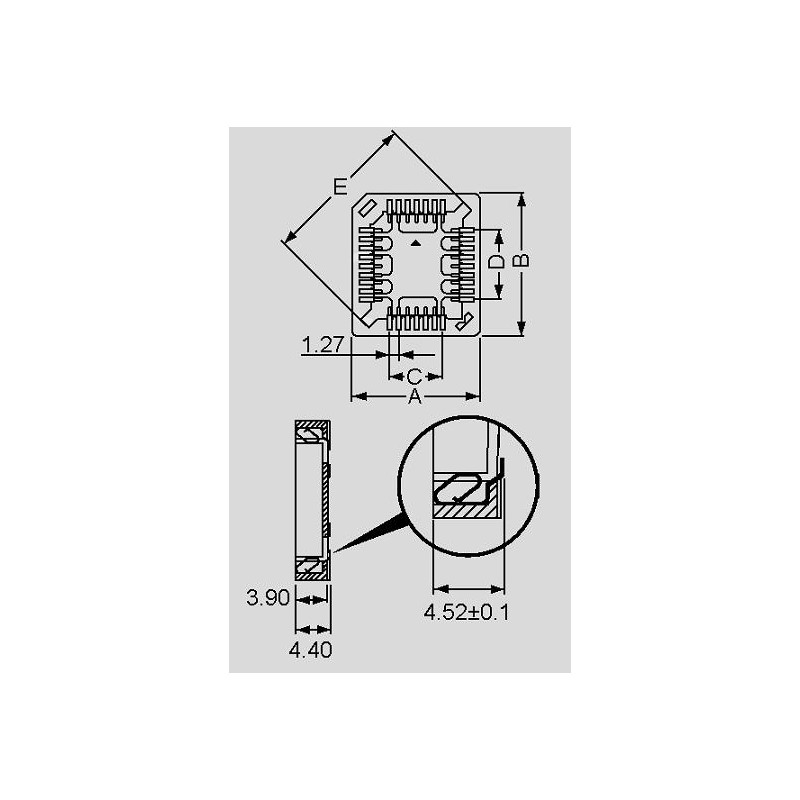

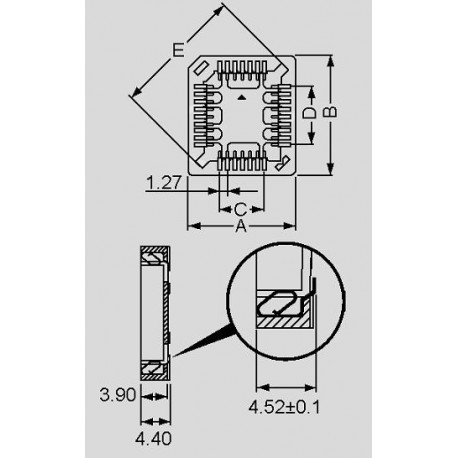

dimensions

PLCC 32 SMD

14584 PLCC 32 SMD 082-1-032-0-XT0 082-1-032-0-XT0 SMD PLCC sockets. * PLCC sockets eith SMD terminations (acc. JEDEC MO-047/MO-025)* offering the same PCB-layout as the IC-package* board termination: SMD gull wing* high-temperature-resistant* insulation shell: thermoplast, black (UL94V-0)PLCC52SMD-TH2: thermoplast, brown (UL94V-0)* contact material: CuSn (phosphor bronze)* rated current: 1A* rated voltage: 100VRMS* withstand voltage (1min.): 600VRMS* temperature range: -40...+85°C

Specifications

manufacturer
Manufacturer's name 082-1-032-0-XT0
E [mm] 22,5mm
Number of poles 32
A [mm] 17,78
Width [mm] 20,32
E [mm] 22,5
D [mm] 10,16
C [mm] 7,62
Data Sheet

Unit price

0,69 €

Stock: 775
Next incoming goods:
CW 50/2024
6960 units

Further delivery:
CW 22/2025

Minimum order quantity 1 to 7 units or multiples of 24 plus 0 to 7 .
