PLCC 20 SMD

SMD PLCC sockets

* PLCC sockets eith SMD terminations (acc. JEDEC MO-047/MO-025)
* offering the same PCB-layout as the IC-package
* board termination: SMD gull wing
* high-temperature-resistant
* insulation shell: thermoplast, black (UL94V-0)
PLCC52SMD-TH2: thermoplast, brown (UL94V-0)
* contact material: CuSn (phosphor bronze)
* rated current: 1A
* rated voltage: 100VRMS
* withstand voltage (1min.): 600VRMS
* temperature range: -40...+85°C

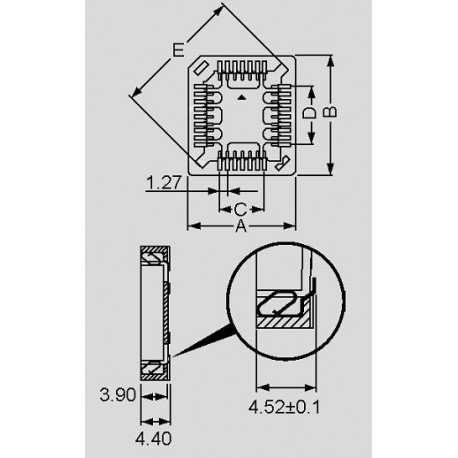

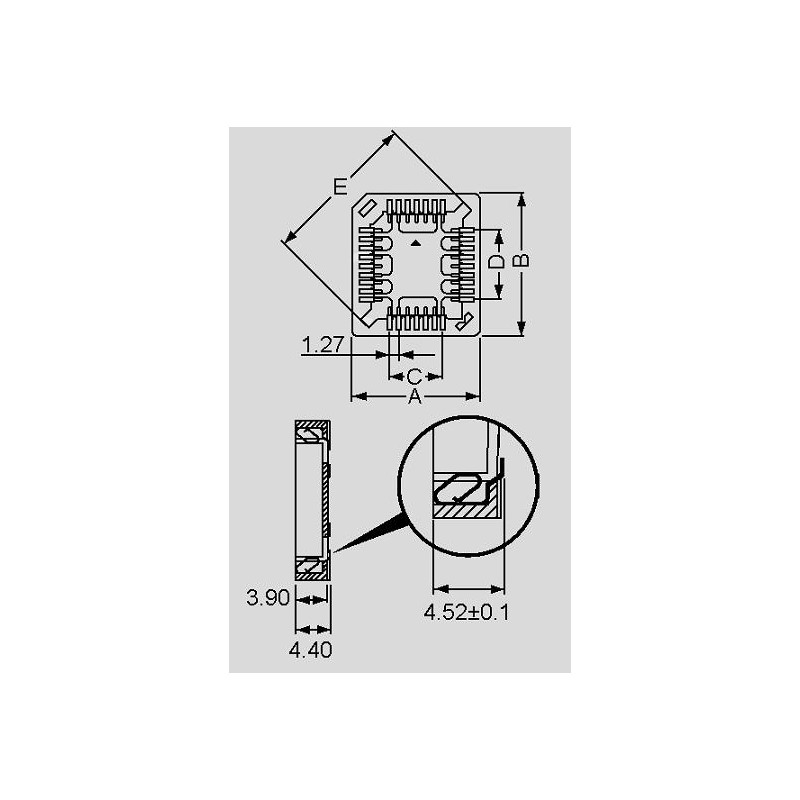

dimensions

PLCC 20 SMD

14582 PLCC 20 SMD 082-1-020-0-XT0 082-1-020-0-XT0 SMD PLCC sockets. * PLCC sockets eith SMD terminations (acc. JEDEC MO-047/MO-025)* offering the same PCB-layout as the IC-package* board termination: SMD gull wing* high-temperature-resistant* insulation shell: thermoplast, black (UL94V-0)PLCC52SMD-TH2: thermoplast, brown (UL94V-0)* contact material: CuSn (phosphor bronze)* rated current: 1A* rated voltage: 100VRMS* withstand voltage (1min.): 600VRMS* temperature range: -40...+85°C

Specifications

manufacturer
Manufacturer's name 082-1-020-0-XT0
E [mm] 16,7mm
Number of poles 20
A [mm] 15,24
Width [mm] 15,24
E [mm] 16,7
D [mm] 5,08
C [mm] 5,08
Data Sheet

Unit price

0,919 €

Stock: 2435
Further delivery:
CW 11/2025

Minimum order quantity 1 to 3 units or multiples of 32 plus 0 to 3 .
