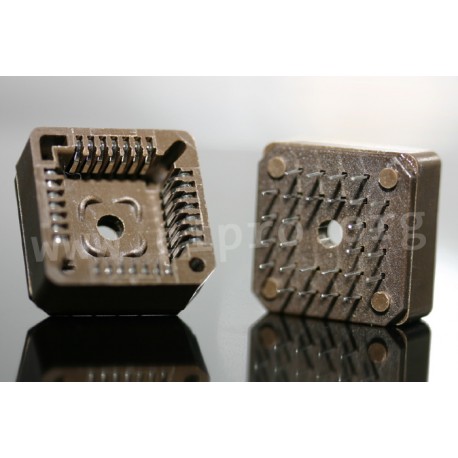

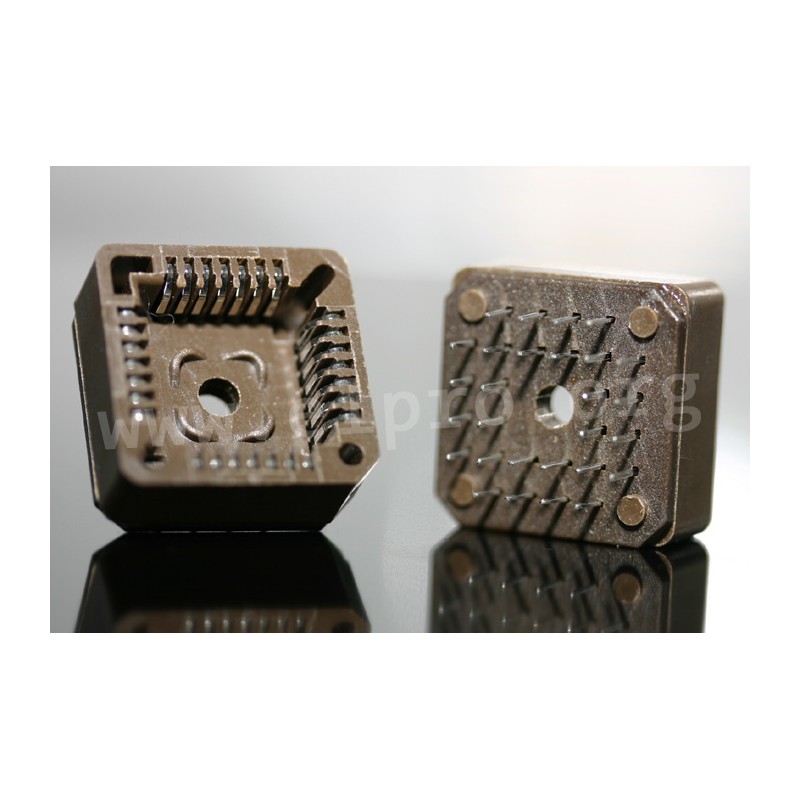

PLCC 28

PLCC sockets

* PLCC sockets, solder tail, with precision stamped contacts (acc. JEDEC MO-047 / MO-052)
* high-temperature-resistant
* insulation shell: thermoplast, black (UL94V-0)
* contact material: CuSn (phosphor bronze)
* rated current: 1A
* rated voltage: 100VRMS
* withstand voltage (1min.): 600VRMS
* temperature range: -40...+85°C



PLCC 28

PLCC 28

10358 PLCC 28 081-1-028-0-XT0 081-1-028-0-XT0 PLCC sockets. * PLCC sockets, solder tail, with precision stamped contacts (acc. JEDEC MO-047 / MO-052)* high-temperature-resistant* insulation shell: thermoplast, black (UL94V-0)* contact material: CuSn (phosphor bronze)* rated current: 1A* rated voltage: 100VRMS* withstand voltage (1min.): 600VRMS* temperature range: -40...+85°C

Specifications

manufacturer
Manufacturer's name 081-1-028-0-XT0

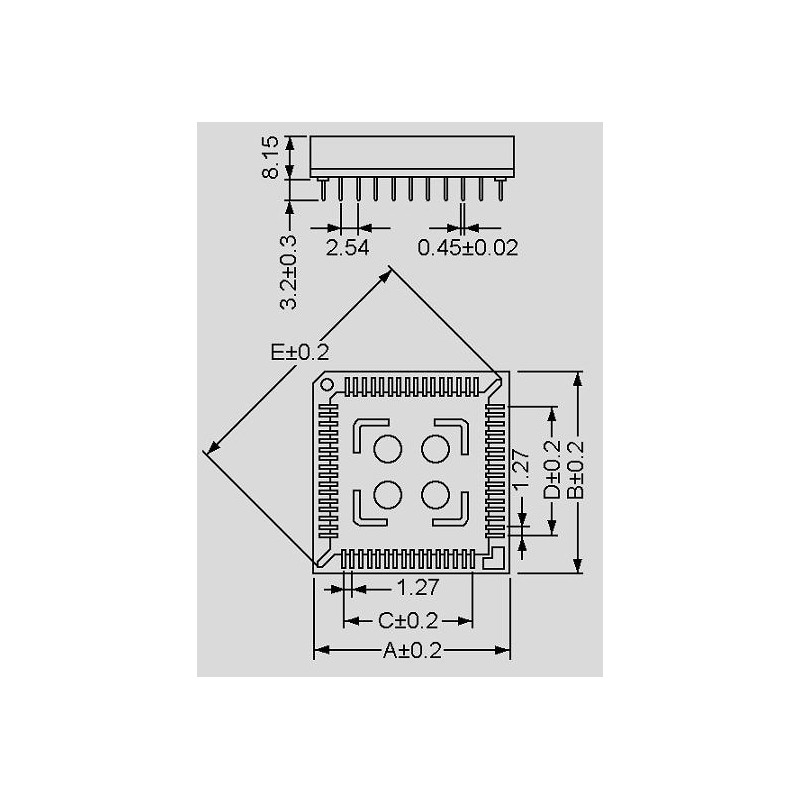

E [mm] 21,7mm
Number of poles 28
A [mm] 18,1
Width [mm] 18,1
E [mm] 21,7
D [mm] 7,62
C [mm] 7,62
Data Sheet

Unit price

0,251 €

Stock: 7175
Further delivery:
CW 22/2025

Minimum order quantity 1 to 20 units or multiples of 27 plus 0 to 20 .
