004-1-014-3-D1STF

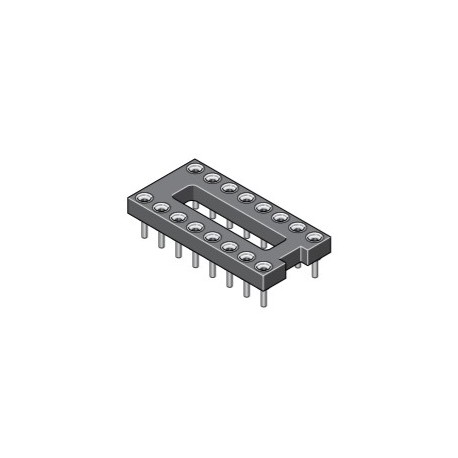

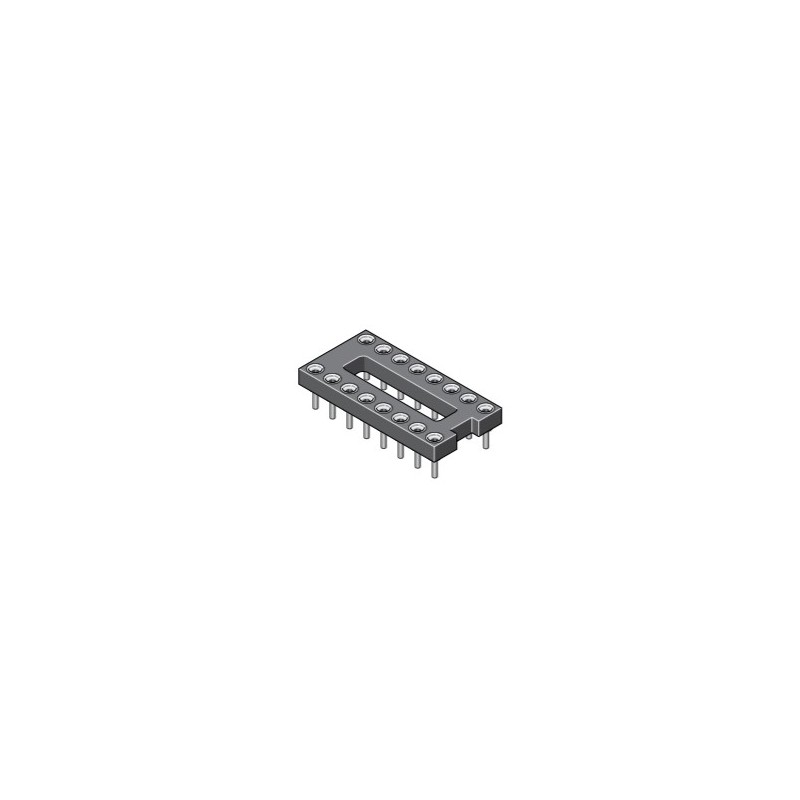

MPE Garry IC socket series 004

  • IC precision sockets with a low height (2,5mm)
  • suitable for all conventional reflow soldering processes
  • insulator is made of thermoplast (UL94V-0)
  • rated voltage: 150VRMS / V DC
  • rated current: 3A
  • pitch: 2,54mm
004-1-014-3-D1STF-XTO, MPE Garry IC precision sockets, low height, pitch 2,54mm, 004 series

004-1-014-3-D1STF

235569 004-1-014-3-D1STF 004-1-014-3-D1STF-XTO 004-1-014-3-D1STF-XTO MPE Garry IC socket series 004. IC precision sockets with a low height (2,5mm) suitable for all conventional reflow soldering processes insulator is made of thermoplast (UL94V-0) rated voltage: 150VRMS / V DC rated current: 3A pitch: 2,54mm

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 004-1-014-3-...
Number of poles 14
Data Sheet

Unit price

0,676 €

Stock: 1218

Minimum order quantity 29 units or
multiples of 29.
