PF 22 400mil

IC precision sockets

* pitch: 2.54mm
* insulator: thermoplastic, UL94V-0
* contact: CuZn, tin-plated
* contact spring: BeCu, gold-plated
* suitable for: round pin 0.4...0.56mm: square pin 0.25...0.45mm

PF 22 400mil

28824 PF 22 400mil 001-2-022-4-B1STF-XT0 001-2-022-4-B1STF-XT0 IC precision sockets. * pitch: 2.54mm * insulator: thermoplastic, UL94V-0* contact: CuZn, tin-plated* contact spring: BeCu, gold-plated* suitable for: round pin 0.4...0.56mm: square pin 0.25...0.45mm

Specifications

manufacturer
Manufacturer's name 001-2-022-4-...
Number of poles 22

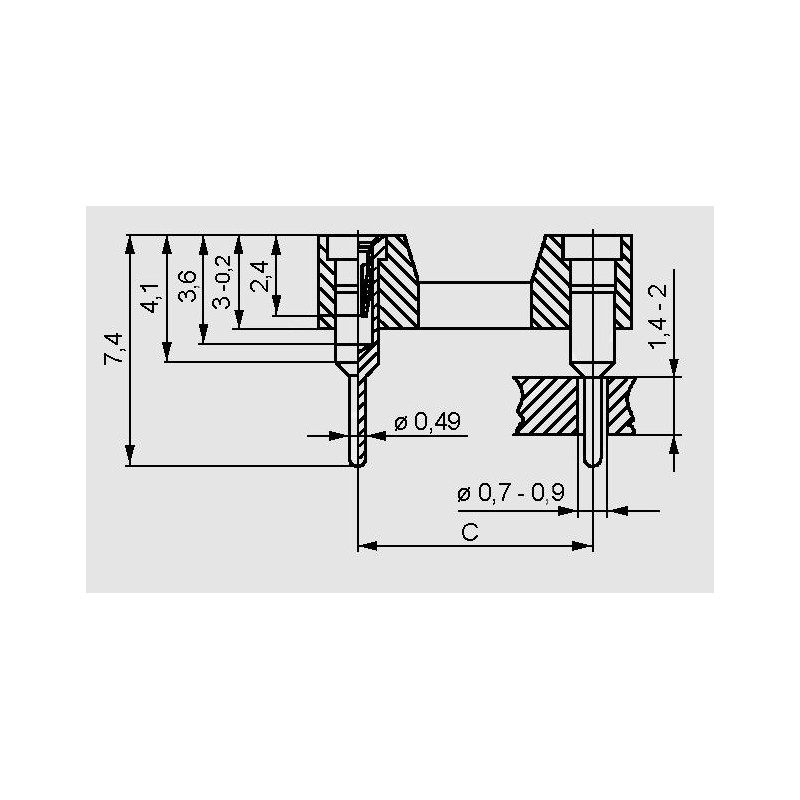

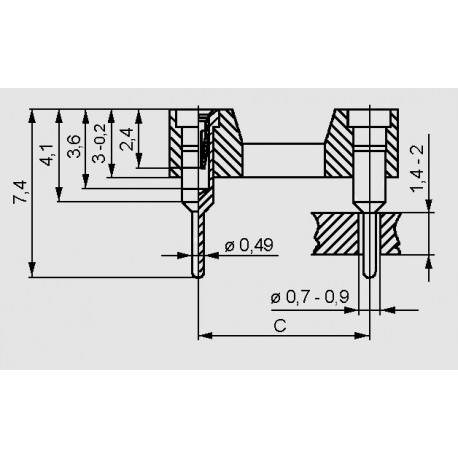

C [mm] 10,16

Unit price

0,678 €

Stock: 3726
Further delivery:
CW 19/2025

Minimum order quantity 18 units or
multiples of 18.
