PF 32 KO

IC precision sockets

* pitch: 2.54 mm
* precision socket with integrated 100nF capacitor for broadband decoupling up to 100MHz
* up to twenty-times less impedance compared with more conventional decoupling
* impedance in frequency range up to 100MHz under 10Ω
* insulator: polyester, glass-filled, UL94V-0
* contact spring: gold-plated
* contact sleece: tin-plated
* ceramic capacitor 0.1µF

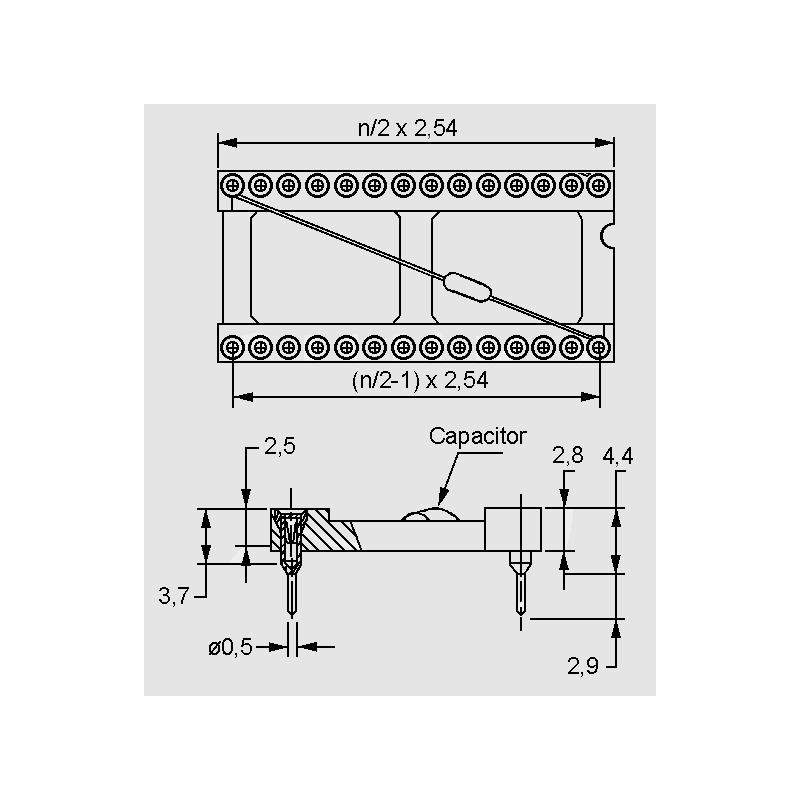

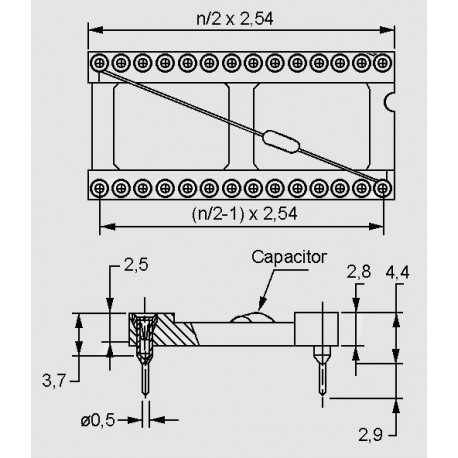

dimensions

PF 32 KO

10354 PF 32 KO 001-4-032-6-B1STF-XT0 001-4-032-6-B1STF-XT0 IC precision sockets. * pitch: 2.54 mm* precision socket with integrated 100nF capacitor for broadband decoupling up to 100MHz* up to twenty-times less impedance compared with more conventional decoupling* impedance in frequency range up to 100MHz under 10Ω* insulator: polyester, glass-filled, UL94V-0* contact spring: gold-plated* contact sleece: tin-plated* ceramic capacitor 0.1µF

Specifications

manufacturer
Manufacturer's name 001-4-032-6-...
Number of poles 32
Width [mm] 15,24

Unit price

1,46 €

Stock: 83
Further delivery:
CW 52/2024

Minimum order quantity 1 to 11 units or multiples of 12 plus 0 to 11 .
