PF 20 KO

IC precision sockets

* pitch: 2.54 mm
* precision socket with integrated 100nF capacitor for broadband decoupling up to 100MHz
* up to twenty-times less impedance compared with more conventional decoupling
* impedance in frequency range up to 100MHz under 10Ω
* insulator: polyester, glass-filled, UL94V-0
* contact spring: gold-plated
* contact sleece: tin-plated
* ceramic capacitor 0.1µF

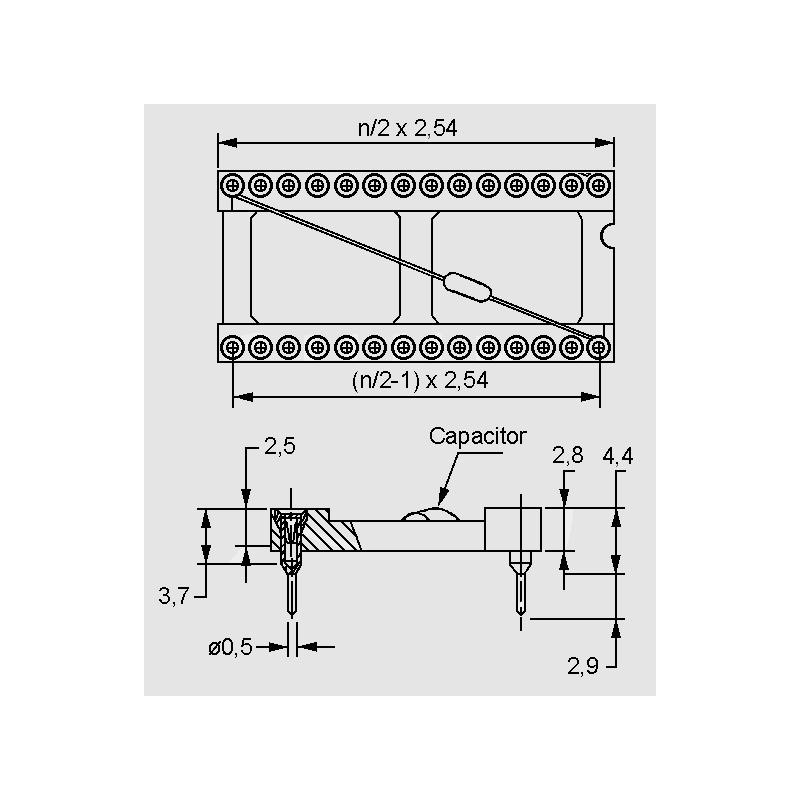

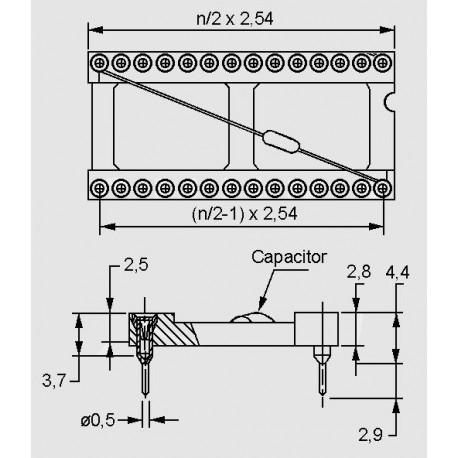

dimensions

PF 20 KO

10350 PF 20 KO 001-4-020-3-B1STF-XT0 001-4-020-3-B1STF-XT0 IC precision sockets. * pitch: 2.54 mm* precision socket with integrated 100nF capacitor for broadband decoupling up to 100MHz* up to twenty-times less impedance compared with more conventional decoupling* impedance in frequency range up to 100MHz under 10Ω* insulator: polyester, glass-filled, UL94V-0* contact spring: gold-plated* contact sleece: tin-plated* ceramic capacitor 0.1µF

Specifications

manufacturer
Manufacturer's name 001-4-020-3-...
Number of poles 20
Width [mm] 7,62

Unit price

1,00 €

Stock: 965
Next incoming goods:
CW 51/2024
1000 units

Further delivery:
CW 52/2024

Minimum order quantity 1 to 5 units or multiples of 20 plus 0 to 5 .
