PF 16 KO

IC precision sockets

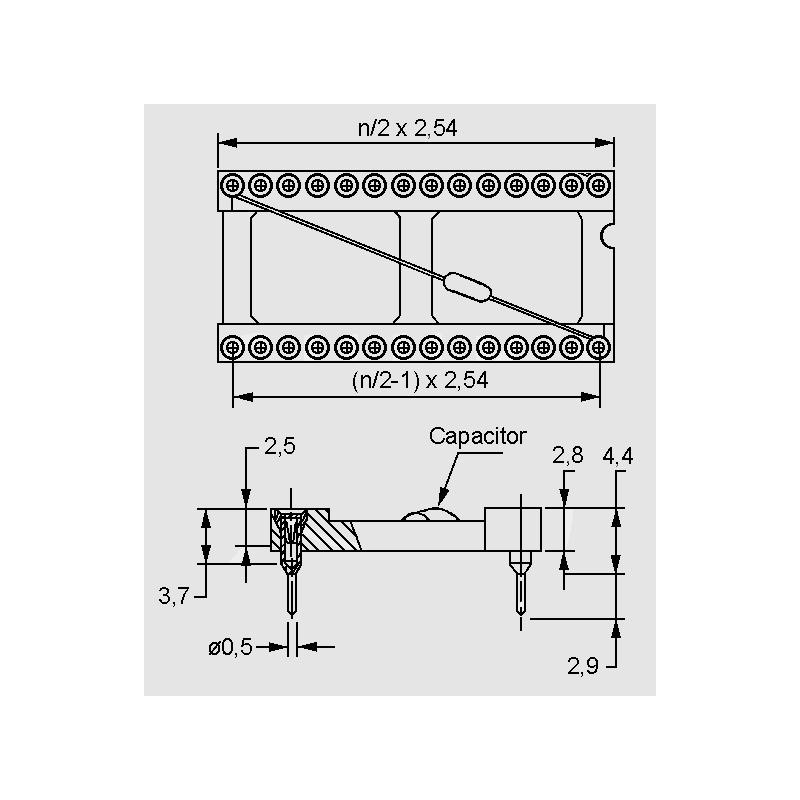

• pitch: 2.54 mm
• precision socket with integrated 100nF capacitor for broadband decoupling up to 100MHz
• up to twenty-times less impedance compared with more conventional decoupling
• impedance in frequency range up to 100MHz under 10Ω
• insulator: polyester, glass-filled, UL94V-0
• contact spring: gold-plated
• contact sleece: tin-plated
• ceramic capacitor 0.1µF
PF 16 KO

PF 16 KO

10348 PF 16 KO 001-3-016-3-B1STF-XT0 001-3-016-3-B1STF-XT0 IC precision sockets. * pitch: 2.54 mm* precision socket with integrated 100nF capacitor for broadband decoupling up to 100MHz* up to twenty-times less impedance compared with more conventional decoupling* impedance in frequency range up to 100MHz under 10Ω* insulator: polyester, glass-filled, UL94V-0* contact spring: gold-plated* contact sleece: tin-plated* ceramic capacitor 0.1µF

Specifications

manufacturer
Manufacturer's name 001-3-016-3-...
Number of poles 16
Width [mm] 7,62

Unit price

1,18 €

Stock: 775
Further delivery:
CW 23/2025

Minimum order quantity 25 units or
multiples of 25.
