GP18H1G00M00

MOLVENO rocker switch series GP

Rocker switches for 13 x 19mm panel cut-outs and with a switching current of 12A as well as a maximal voltage of 250V AC. These 2-pole switches with a blade terminal (4,8 x 0,8mm) have a contact gap of 3mm and are in compliance with the flammability class UL 94 V2. Furthermore, they are suited for a maximal ambient temperature of 125°C. We offer the type GP12H1121M00 with a black rocker, the type GP18H1E00M00 with a green illuminated rocker and the type GP18H1G00M00 with a red illuminated rocker.

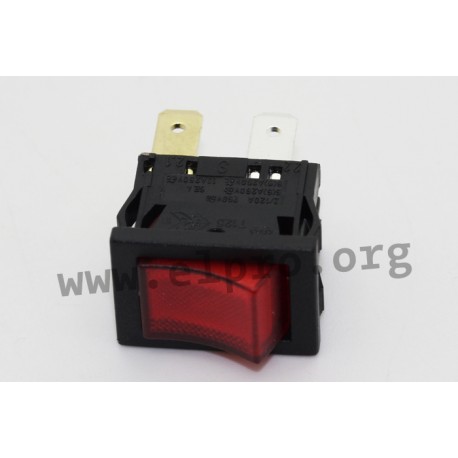

GP18H1G00M00, 12A, for 13x19mm panel cut-out, GP series

GP18H1G00M00

113548 GP18H1G00M00 GP18H1G00M00 MOLVENO rocker switch series GP. Rocker switches for 13 x 19mm panel cut-outs and with a switching current of 12A as well as a maximal voltage of 250V AC. These 2-pole switches with a blade terminal (4,8 x 0,8mm) have a contact gap of 3mm and are in compliance with the flammability class UL 94 V2. Furthermore, they are suited for a maximal ambient temperature of 125°C. We offer the type GP12H1121M00 with a black rocker, the type GP18H1E00M00 with a green illuminated rocker and the type GP18H1G00M00 with a red illuminated rocker.

Specifications

manufacturer
Manufacturer's name GP18H1G00M00
Switch positions 2xE/A
Case colour black
Rocker red
Rocker imprint -
Illumination red
Switching current [A] 12
Panel cut-out [mm] 13 x 19
Data Sheet

Unit price

1,40 €

Stock: 2008
Further delivery:
CW 09/2025

Minimum order quantity 1 to 8 units or multiples of 10 plus 0 to 8 .
