A41831G21000

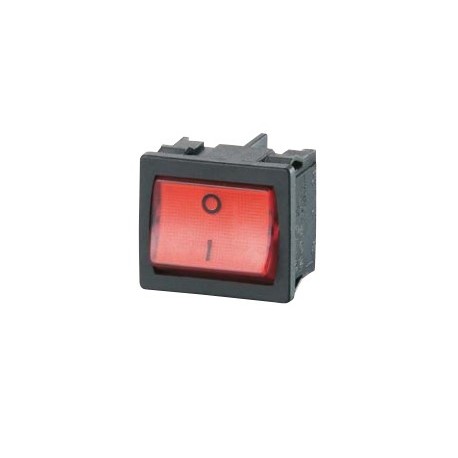

Molveno rocker switch series A4

Rocker switches for 19 x 22mm panel cut-outs and with a switching current of 10A as well as a maximal voltage of 250V AC. These 2-pole switches with a 4,8 x 0,8mm connector are in compliance with the flammability class UL 94 V2 and have a contact gap of 3mm. Furthermore, they are suited for a maximal ambient temperature of 125°C. We offer the type A41231121000 with a black rocker, the type A41831E21000 with a green illuminated rocker and the type A41831G21000 with a red illuminated rocker.

1

A41831G21000

113550 A41831G21000 A41831G21000 Molveno rocker switch series A4. Rocker switches for 19 x 22mm panel cut-outs and with a switching current of 10A as well as a maximal voltage of 250V AC. These 2-pole switches with a 4,8 x 0,8mm connector are in compliance with the flammability class UL 94 V2 and have a contact gap of 3mm. Furthermore, they are suited for a maximal ambient temperature of 125°C. We offer the type A41231121000 with a black rocker, the type A41831E21000 with a green illuminated rocker and the type A41831G21000 with a red illuminated rocker.

Specifications

manufacturer
Manufacturer's name A41831G21000
Switch positions DPST
Case colour black
Rocker red
Rocker imprint I/O
Illumination red
Switching current [A] 10
Panel cut-out [mm] 19 x 22
Data Sheet

Unit price

1,42 €

Stock: 1420
Further delivery:
CW 13/2025

Minimum order quantity 10 units or
multiples of 10.
