A11131121000

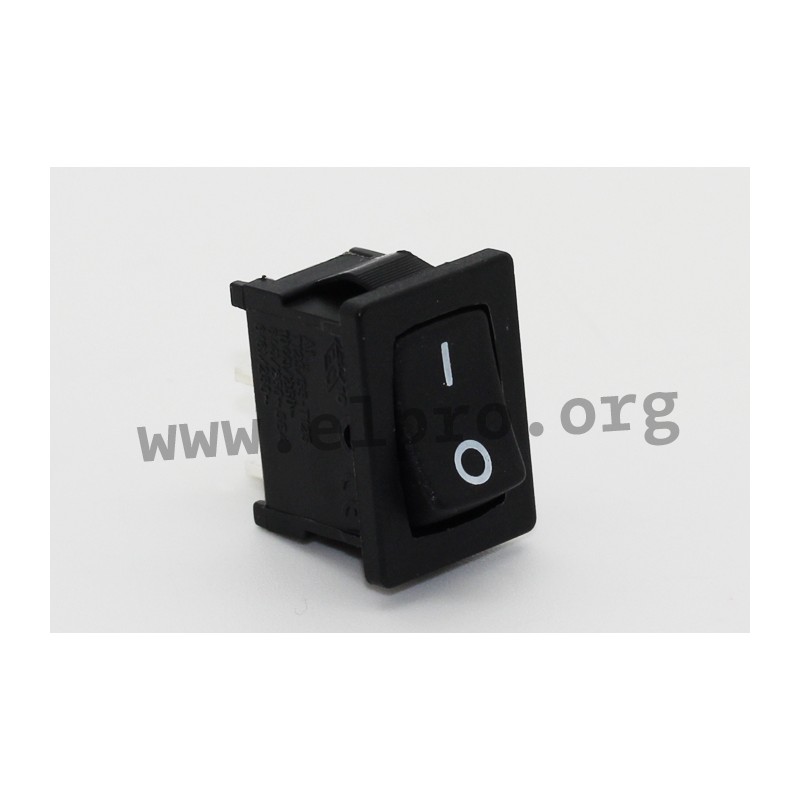

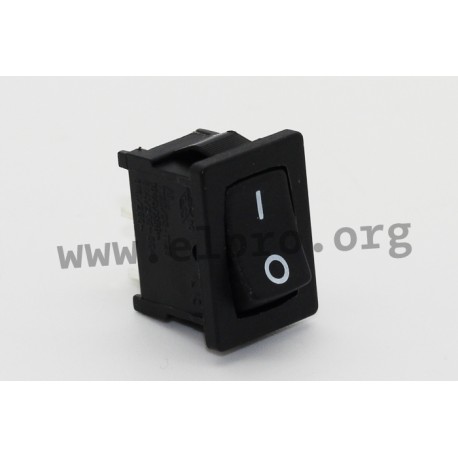

Molveno rocker switch series A1

Rocker switches with a maximal operating voltage of 250V DC and a maximal switching current of 10A for 13 x 19mm panel cut-outs. These 1-pole switches with a 4,8 x 0,8mm connector are suited for a maximal ambient temperature of 125°C. They are in compliance with the flammability class UL 94 V2 and have a contact gap of 3mm. We offer the type A11131100000 without an imprint, the type A11131121000 with a white imprint as well as the type A12131121000 with a solder terminal and the protective cap A1CAP for this series.

A11131121000, 10A, for 13x19mm panel cut-out, A1 series

A11131121000

113545 A11131121000 A11131121000 Molveno rocker switch series A1. Rocker switches with a maximal operating voltage of 250V DC and a maximal switching current of 10A for 13 x 19mm panel cut-outs. These 1-pole switches with a 4,8 x 0,8mm connector are suited for a maximal ambient temperature of 125°C. They are in compliance with the flammability class UL 94 V2 and have a contact gap of 3mm. We offer the type A11131100000 without an imprint, the type A11131121000 with a white imprint as well as the type A12131121000 with a solder terminal and the protective cap A1CAP for this series.

Specifications

manufacturer
Manufacturer's name A11131121000
Switch positions SPST
Case colour black
Rocker black
Rocker imprint I/O
Illumination -
Switching current [A] 10
Panel cut-out [mm] 13x19
Data Sheet

Unit price

0,588 €

Stock: 0
Next incoming goods:
CW 12/2025
2000 units

Further delivery:
CW 13/2025

Minimum order quantity 10 units or
multiples of 10.
