39-28-1083

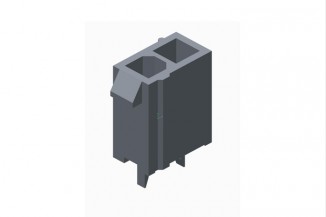

Molex plug housing series Mini Fit Jr. 5566

1- and 2-row female connector housings for cables with a pitch of 4,2mm. These devices have no contacts and are intended to be fitted with contact sleeves. They allow wire-to-board configurations, are suitable for applications with a high current / a high density and have tin-plated brass pins. We offer various types of this Molex series.

  • pitch: 4,2mm
  • housing material: nylon 6/6
  • maximal rated current: 9A
  • maximal voltage: 600V
  • operating temperature: -40 to +105°C
  • maximal soldering temperature: 240°C/5s

39-28-1083 39281083

39-28-1083

242479 39-28-1083 39281083 39281083 Molex plug housing series Mini Fit Jr. 5566. 1- and 2-row female connector housings for cables with a pitch of 4,2mm. These devices have no contacts and are intended to be fitted with contact sleeves. They allow wire-to-board configurations, are suitable for applications with a high current / a high density and have tin-plated brass pins. We offer various types of this Molex series. pitch: 4,2mm housing material: nylon 6/6 maximal rated current: 9A maximal voltage: 600V operating temperature: -40 to +105°C maximal soldering temperature: 240°C/5s

Specifications

manufacturer
Manufacturer's name 39281083
Design double-row
Number of poles 8
Data Sheet

Unit price

0,283 €

Stock: 3400
Further delivery:
CW 11/2025

Minimum order quantity 25 units or
multiples of 25.
