39-01-3023

Molex socket housing series Mini Fit 5559

Single and double-row male connector housings with a pitch of 4,2mm. These devices have no contacts and are intended to be fitted with contact sleeves. They allow an easy connection of wire-to-wire as well as wire-to-board configurations and are suitable for high current as well as high density applications. We offer various types of this Molex series.

  • pitch: 4,2mm
  • housing material: nylon
  • maximal rated current: 13A
  • operating temperature: -40 to +105°C

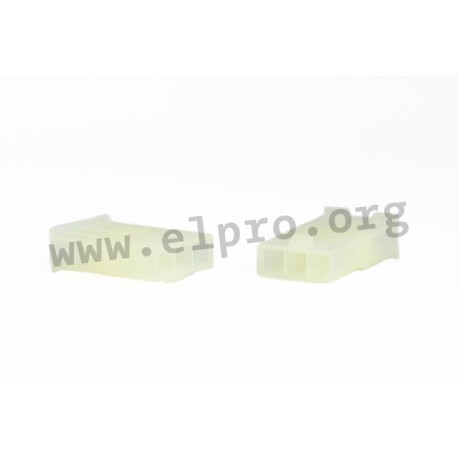

39013023, Molex male connector housings, 4,2mm, Mini Fit 5559 series

39-01-3023

242457 39-01-3023 39013023 39013023 Molex socket housing series Mini Fit 5559. Single and double-row male connector housings with a pitch of 4,2mm. These devices have no contacts and are intended to be fitted with contact sleeves. They allow an easy connection of wire-to-wire as well as wire-to-board configurations and are suitable for high current as well as high density applications. We offer various types of this Molex series. pitch: 4,2mm housing material: nylon maximal rated current: 13A operating temperature: -40 to +105°C

Specifications

manufacturer
Manufacturer's name 39013023
Design double-row
Number of poles 2
Data Sheet

Unit price

0,183 €

Stock: 1800
Further delivery:
CW 14/2025

Minimum order quantity 25 units or
multiples of 25.
