39-01-2245

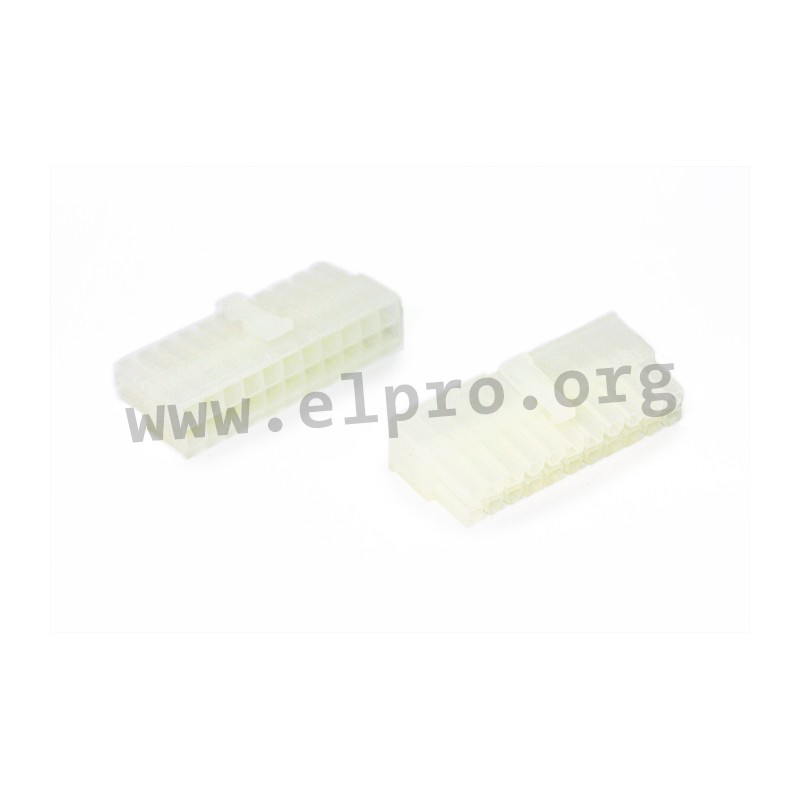

Molex plug housing series Mini Fit 5557

1- and 2-row connector housings with a pitch of 4,2mm. These connectors have no contacts and are intended to be fitted with contact sleeves. They are suitable for high current as well as high density applications and allow the connection of wire-to-wore as well as wire-to-board configurations. We offer various types of this Molex series.

  • pitch: 4,2mm
  • housing material: nylon
  • maximal rated current: 13A
  • operating temperature: -40 to +105°C

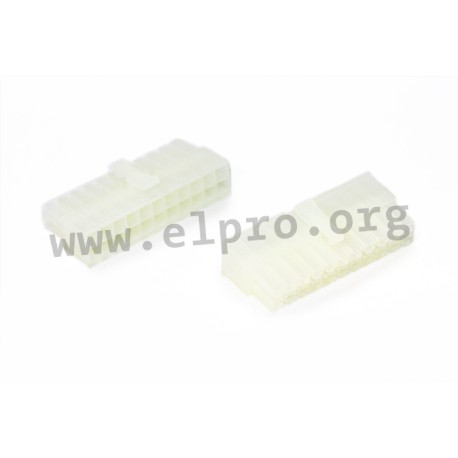

39012245, Molex female connector housings, 4,2mm, Mini Fit 5557 series

39-01-2245

242428 39-01-2245 39012245 39012245 Molex plug housing series Mini Fit 5557. 1- and 2-row connector housings with a pitch of 4,2mm. These connectors have no contacts and are intended to be fitted with contact sleeves. They are suitable for high current as well as high density applications and allow the connection of wire-to-wore as well as wire-to-board configurations. We offer various types of this Molex series. pitch: 4,2mm housing material: nylon maximal rated current: 13A operating temperature: -40 to +105°C

Specifications

manufacturer
Manufacturer's name 39012245
Design double-row
Number of poles 24
Data Sheet

Unit price

0,691 €

Stock: 800
Further delivery:
CW 07/2025

Minimum order quantity 25 units or
multiples of 25.
