39-01-2120

Molex plug housing series Mini Fit 5557

1- and 2-row connector housings with a pitch of 4,2mm. These connectors have no contacts and are intended to be fitted with contact sleeves. They are suitable for high current as well as high density applications and allow the connection of wire-to-wore as well as wire-to-board configurations. We offer various types of this Molex series.

  • pitch: 4,2mm
  • housing material: nylon
  • maximal rated current: 13A
  • operating temperature: -40 to +105°C

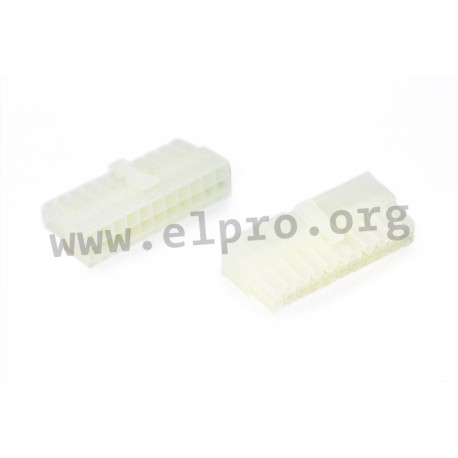

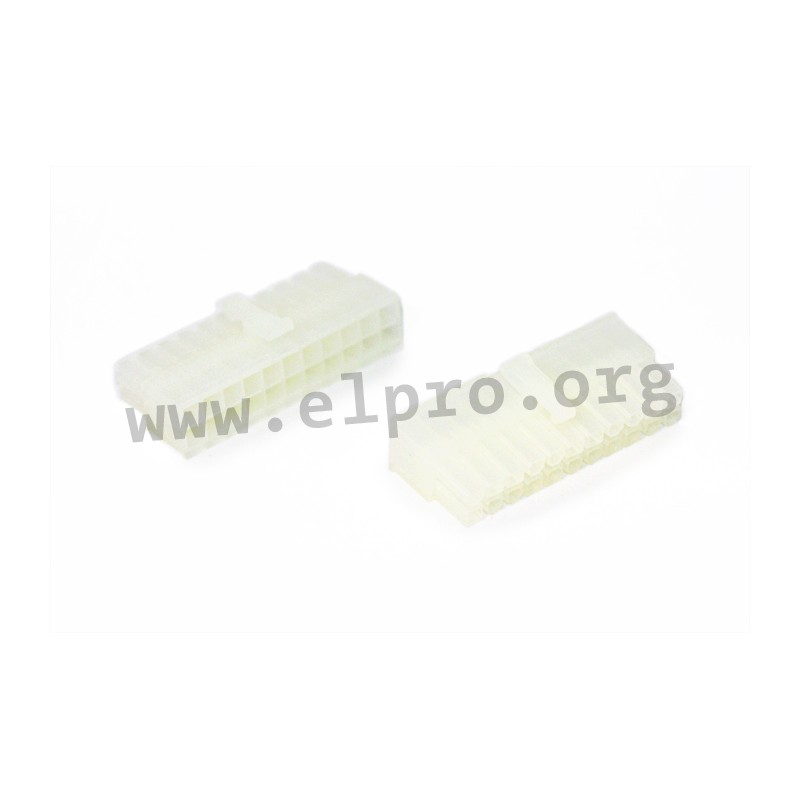

39012120, Molex female connector housings, 4,2mm, Mini Fit 5557 series

39-01-2120

242416 39-01-2120 39012120 39012120 Molex plug housing series Mini Fit 5557. 1- and 2-row connector housings with a pitch of 4,2mm. These connectors have no contacts and are intended to be fitted with contact sleeves. They are suitable for high current as well as high density applications and allow the connection of wire-to-wore as well as wire-to-board configurations. We offer various types of this Molex series. pitch: 4,2mm housing material: nylon maximal rated current: 13A operating temperature: -40 to +105°C

Specifications

manufacturer
Manufacturer's name 39012120
Design double-row
Number of poles 12
Data Sheet

Unit price

0,14 €

Stock: 200
Further delivery:
CW 10/2025

Minimum order quantity 25 units or
multiples of 25.
