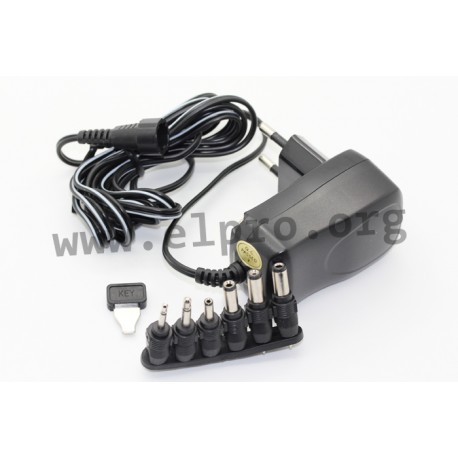

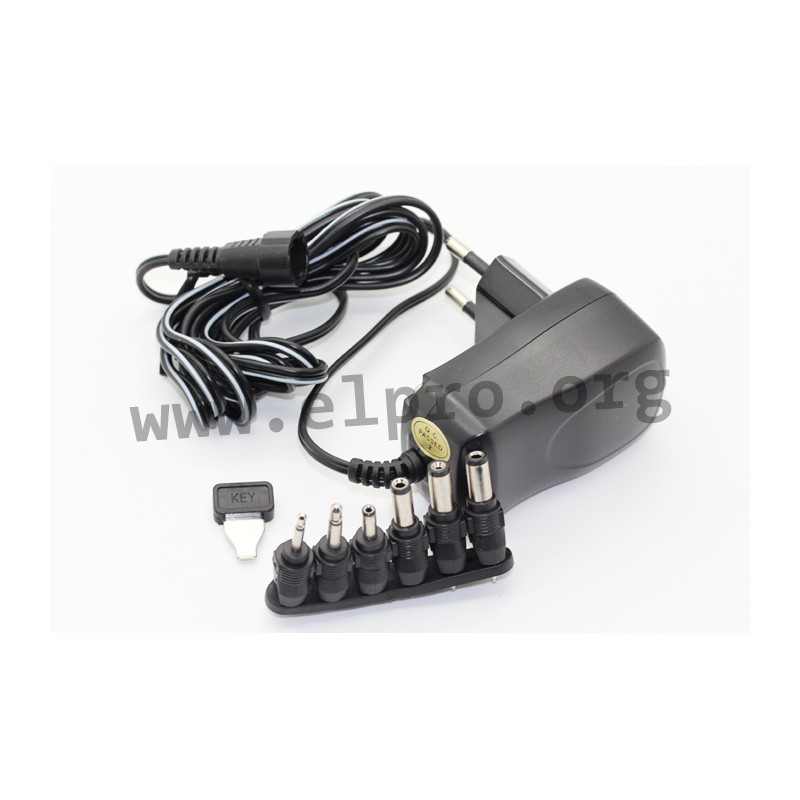

MW MC15EU/6XC

Minwa plug-in power supply series MW_EU/6XC

Plug-in switching power supplies with a europlug, a universal input, a selectable output voltage and insulation class II. These devices have a low no-load power consumption and are protected against short circuit, overload as well as overvoltage. They are suitable for various jack/coaxial plugs and comply with EN62368-1, EN61204-3 and energy efficiency Level VI. We offer the following types of this Minwa series: MW MA06EU/6XC, MW MB10EU/6XC, MW MC15EU/6XC, MW MD15EU/6XC and MW MD25EU/6XC.

  • single output
  • output: 7,2 to 27W
  • input voltage: 100 to 240V AC (60 or 50Hz)
  • maximal no-load power consumption: <0,1W
  • operating temperature: 0 to +25°C
  • length of cable: 1,8m
MWMC15EU/6XC, Minwa plug-in switching power supplies, 6 to 25W, MW_EU/6XC series

MW MC15EU/6XC

138337 MW MC15EU/6XC MWMC15EU/6XC MWMC15EU/6XC Minwa plug-in power supply series&nbsp;MW_EU/6XC. Plug-in switching power supplies with a europlug, a universal input,&nbsp;a selectable output voltage and insulation class II. These devices have a low no-load power consumption and are protected against short circuit, overload as well as overvoltage. They are suitable for various jack/coaxial&nbsp;plugs and comply with EN62368-1, EN61204-3 and energy efficiency&nbsp;Level VI. We offer the following types of this Minwa series:&nbsp;MW MA06EU/6XC, MW MB10EU/6XC, MW MC15EU/6XC, MW MD15EU/6XC and MW MD25EU/6XC. single output output: 7,2 to 27W input voltage: 100 to 240V AC (60 or 50Hz) maximal no-load power consumption: &lt;0,1W operating temperature: 0 to +25&deg;C length of cable: 1,8m

Specifications

manufacturer
Manufacturer's name MWMC15EU/6XC
Output voltage [V] 3/4,5/5/6/7,5/9/12
Output current [A] 1,5
Output power [W] 18
Data Sheet

Unit price

9,69 €

Stock: 5491
Further delivery:
CW 18/2025
