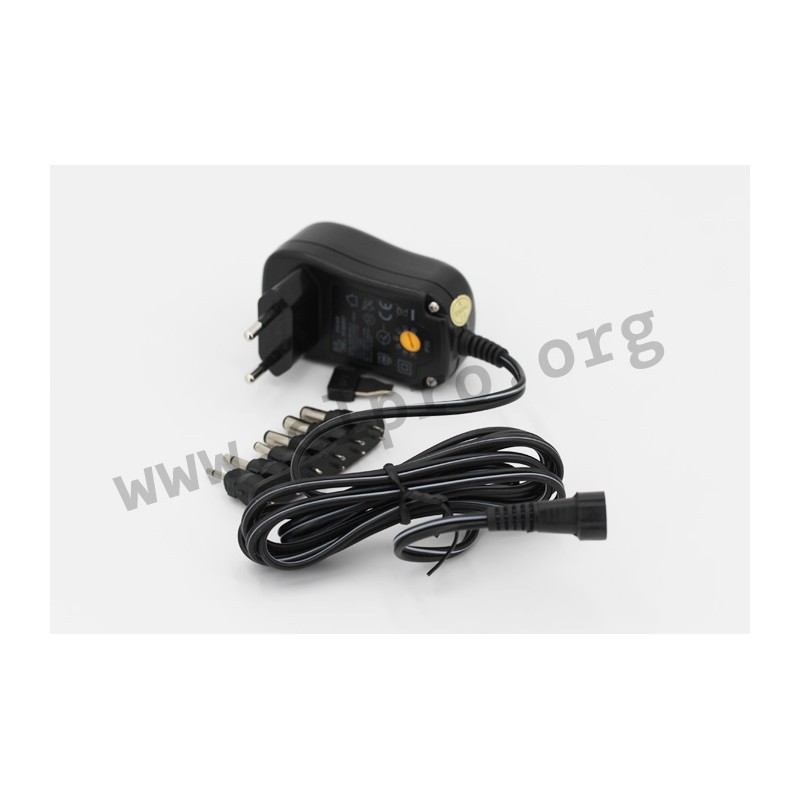

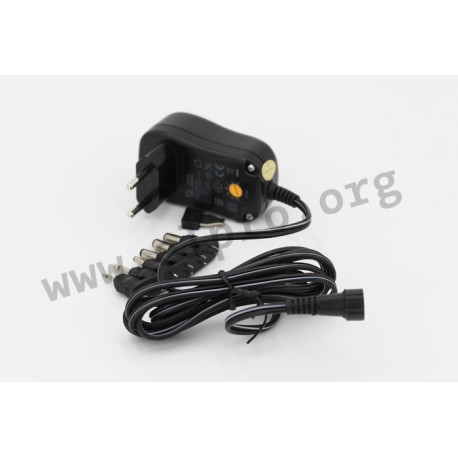

MW MB10E-H

Minwa plug-in power supply series MWM_EU

Plug-in switching power supplies with 7,2/12W, insulation class II, a Europlug, energy efficiency Level VI, a universal input and a low no-load power. These devices are suitable for various jack/coaxial plugs and are protected against overload, overvoltage as well as short circuit. They have a selectable output voltage and comply with EN61558-2-16 as well as EN61204-3. We offer the following types of this Minwa series: MW MA06EU-L, MW MA06EU-H and MW MB10E-H.

  • single output
  • output: 7,2 to 12W
  • input voltage: 100 to 240V AC (50/60Hz)
  • no-load power: <0,1W
  • operating temperature: 0 to +25°C
  • cable length: 1,8m
MWMB10E-H, Minwa plug-in switching power supplies, 7,2 to 12W, MWM_EU series

MW MB10E-H

242242 MW MB10E-H MWMB10E-H MWMB10E-H Minwa plug-in power supply series MWM_EU. Plug-in switching power supplies with 7,2/12W, insulation class II, a Europlug, energy efficiency Level VI, a universal input and a low no-load power. These devices are suitable for various jack/coaxial plugs and are protected against overload, overvoltage as well as short circuit. They have a selectable output voltage and comply with EN61558-2-16 as well as EN61204-3. We offer the following types of this Minwa series: MW MA06EU-L, MW MA06EU-H and MW MB10E-H. single output output: 7,2 to 12W input voltage: 100 to 240V AC (50/60Hz) no-load power: &lt;0,1W operating temperature: 0 to +25°C cable length: 1,8m

Specifications

manufacturer
Manufacturer's name MWMB10E-H
Output voltage [V] 13,5/15/18/2...
Efficiency [%] 82,38/82,96/...
Output current [A] 0,8/0,8/0,67...
Output power [W] 12
Data Sheet

Unit price

7,99 €

Stock: 985
Further delivery:
CW 18/2025
