LSB7080-BRI-ESR-B

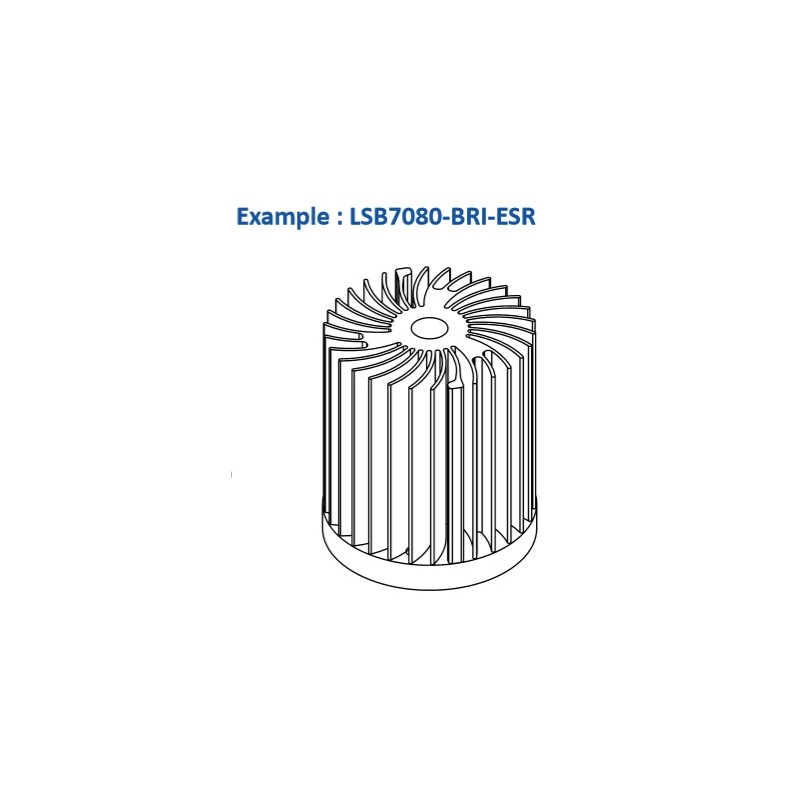

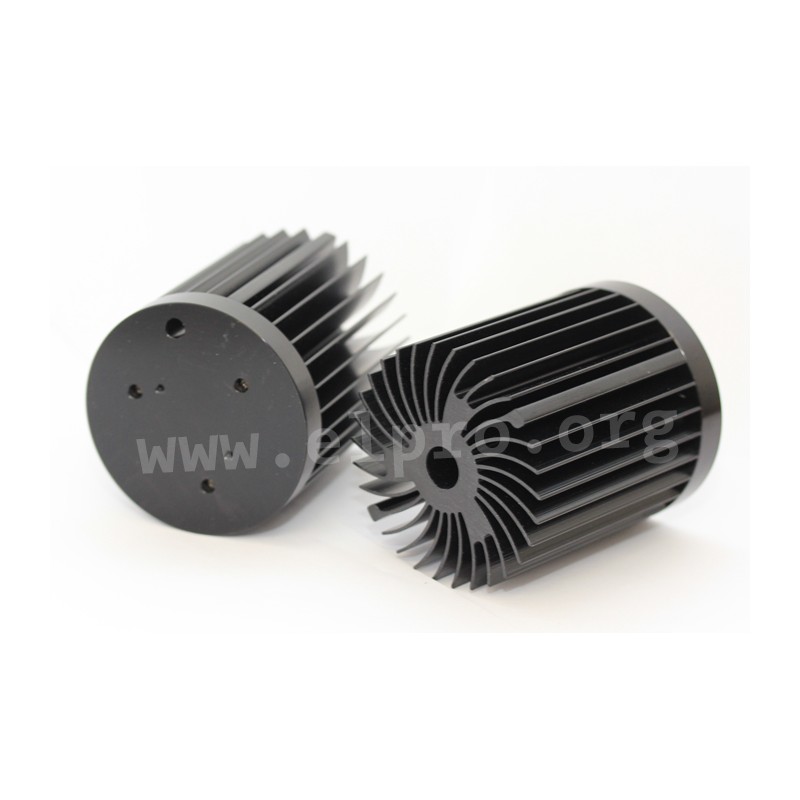

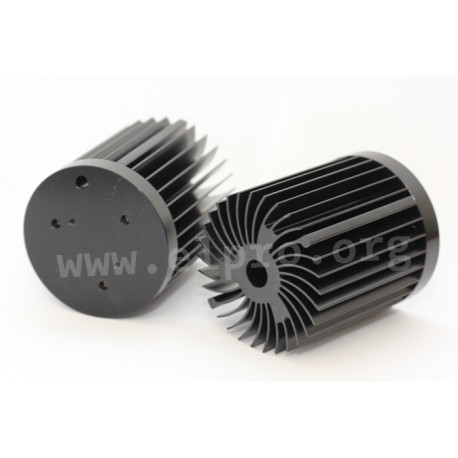

MechaTronix LED heatsink series LSB and LPF

  • extruded (LSB_) and pin fin heatsinks (LPF_)
  • for free air convection
  • with a black anodized surface
  • suitable for Bridgelux ES Star (LSB_BRI-ESS/LPF_BRI-ESS) resp. ES Square Array (LSB_BRI-ESR/LPF_BRI-ESR)
  • made from AL6063-TS

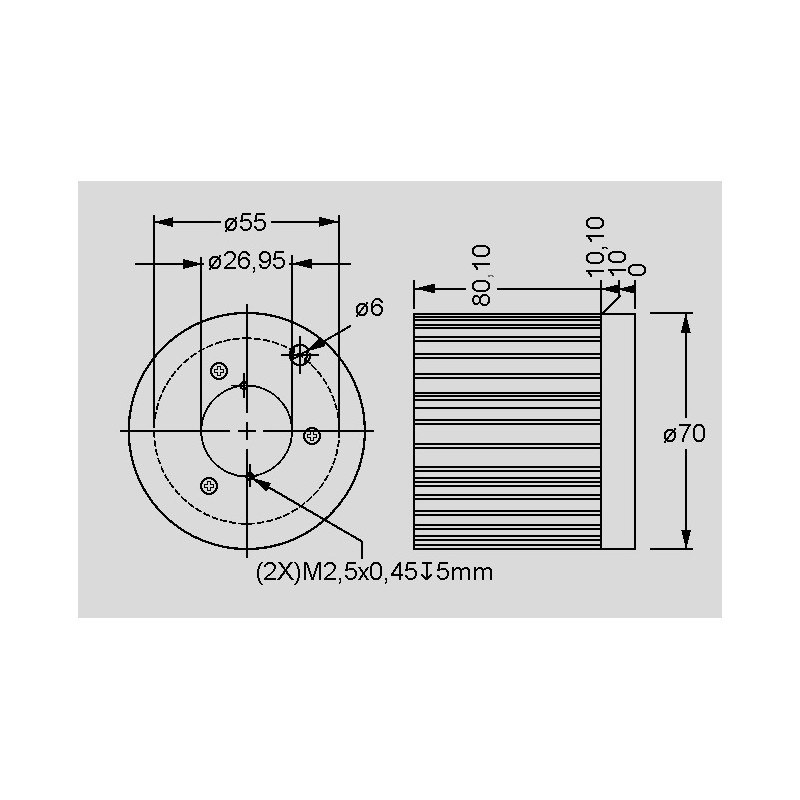

  • mit 2xM2,5 mounting holes and a Ø6mm cable lead-through
LSB7080-BRI-ESR-B

LSB7080-BRI-ESR-B

41935 LSB7080-BRI-ESR-B LSB7080-B-BRI-ESR LSB7080-B-BRI-ESR MechaTronix LED heatsink series LSB and LPF. extruded (LSB_) and pin fin heatsinks (LPF_) for free air convection with a black anodized surface suitable for Bridgelux ES Star (LSB_BRI-ESS/LPF_BRI-ESS) resp. ES Square Array (LSB_BRI-ESR/LPF_BRI-ESR) made from AL6063-TS mit 2xM2,5 mounting holes and a Ø6mm cable lead-through

Specifications

manufacturer
Manufacturer's name LSB7080-B-BRI-ESR
Thermal resistance [°C/W] 2,53
D x L [mm] 70x80
Data Sheet

Unit price

12,79 €

Stock: 111
Further delivery:
CW 04/2025
