LSB5040-BRI-ESS-B

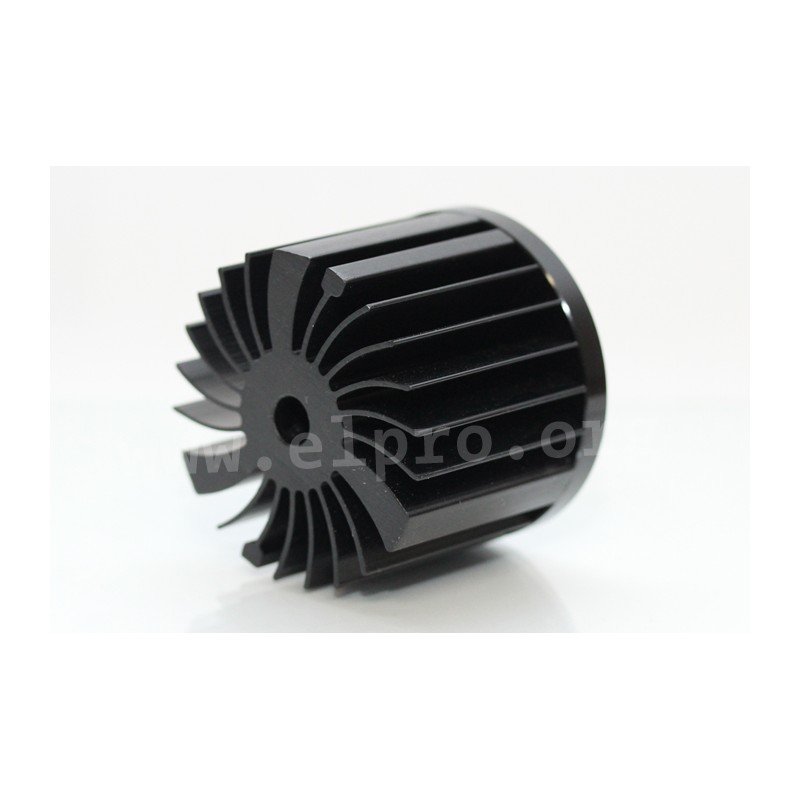

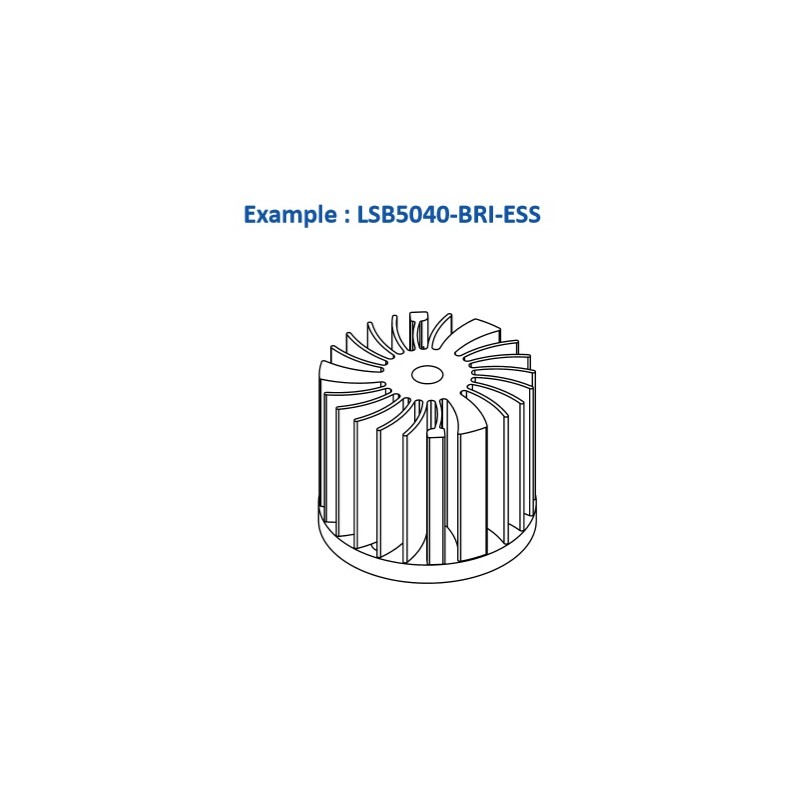

MechaTronix LED heatsink series LSB and LPF

  • extruded (LSB_) and pin fin heatsinks (LPF_)
  • for free air convection
  • with a black anodized surface
  • suitable for Bridgelux ES Star (LSB_BRI-ESS/LPF_BRI-ESS) resp. ES Square Array (LSB_BRI-ESR/LPF_BRI-ESR)
  • made from AL6063-TS

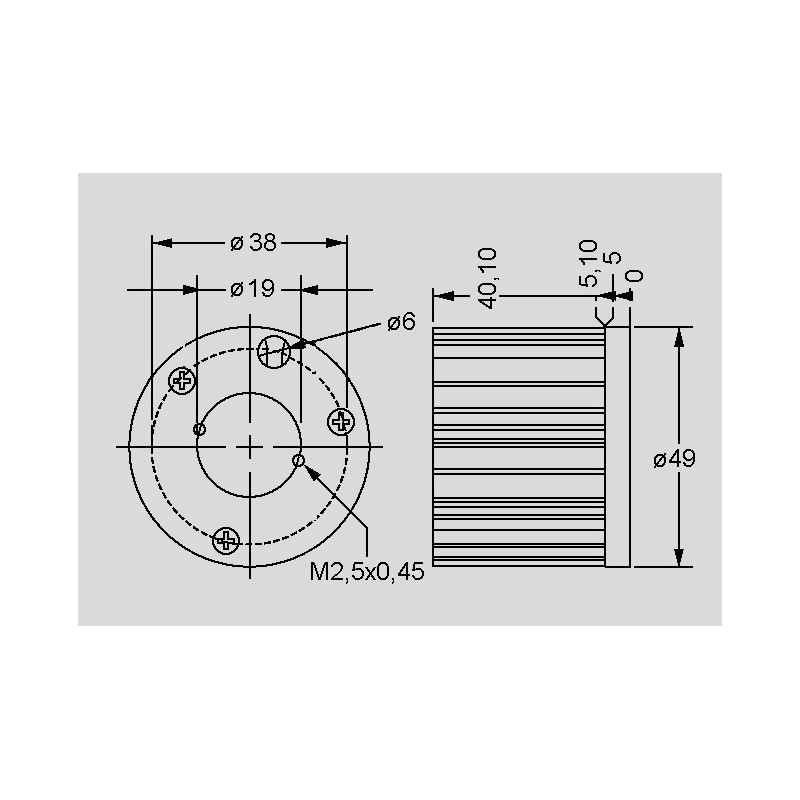

  • mit 2xM2,5 mounting holes and a Ø6mm cable lead-through

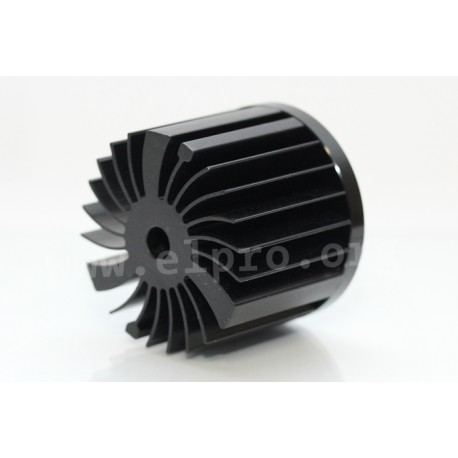

LSB5040-BRI-ESS-B

LSB5040-BRI-ESS-B

41933 LSB5040-BRI-ESS-B LSB5040-B-BRI-ESS LSB5040-B-BRI-ESS MechaTronix LED heatsink series LSB and LPF. extruded (LSB_) and pin fin heatsinks (LPF_) for free air convection with a black anodized surface suitable for Bridgelux ES Star (LSB_BRI-ESS/LPF_BRI-ESS) resp. ES Square Array (LSB_BRI-ESR/LPF_BRI-ESR) made from AL6063-TS mit 2xM2,5 mounting holes and a Ø6mm cable lead-through

Specifications

manufacturer
Manufacturer's name LSB5040-B-BRI-ESS
Thermal resistance [°C/W] 6,5
D x L [mm] 50x40
Data Sheet

Unit price

8,89 €

Stock: 35
Further delivery:
CW 07/2025
