LPF8050-BRI-ESR-B

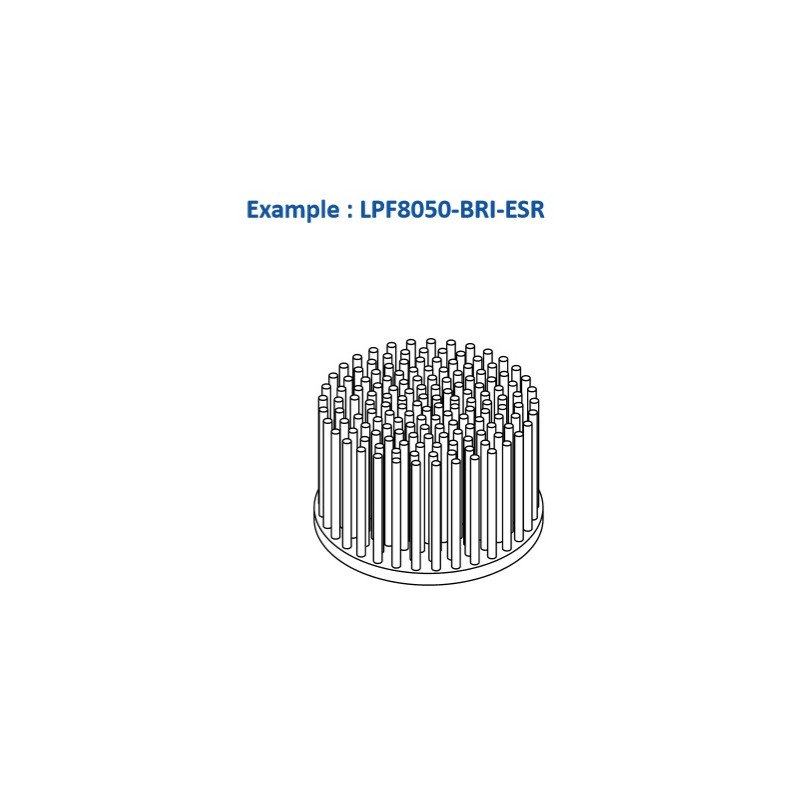

MechaTronix LED heatsink series LSB and LPF

  • extruded (LSB_) and pin fin heatsinks (LPF_)
  • for free air convection
  • with a black anodized surface
  • suitable for Bridgelux ES Star (LSB_BRI-ESS/LPF_BRI-ESS) resp. ES Square Array (LSB_BRI-ESR/LPF_BRI-ESR)
  • made from AL6063-TS

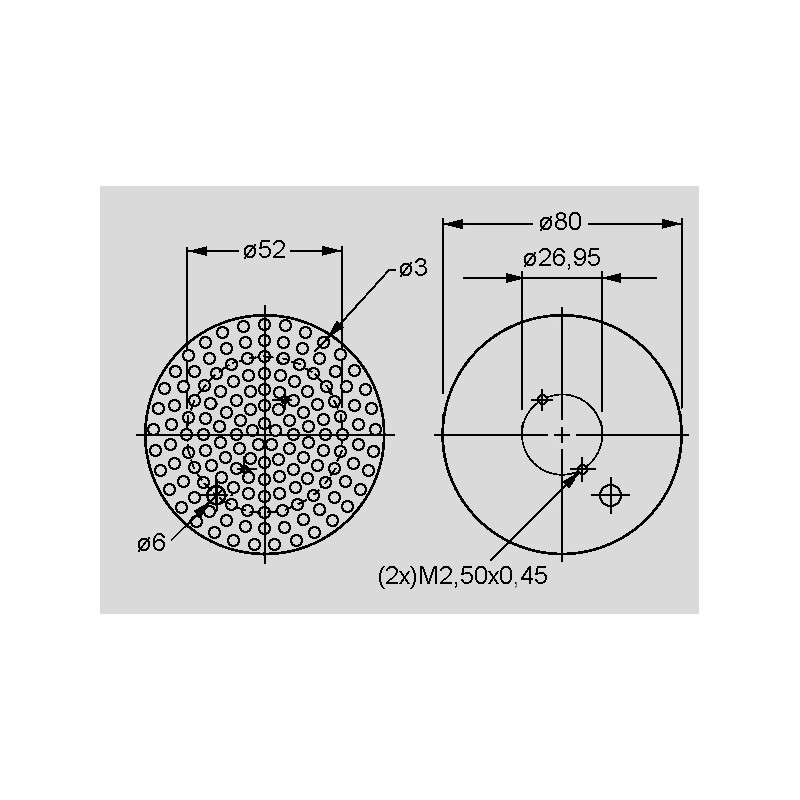

  • mit 2xM2,5 mounting holes and a Ø6mm cable lead-through

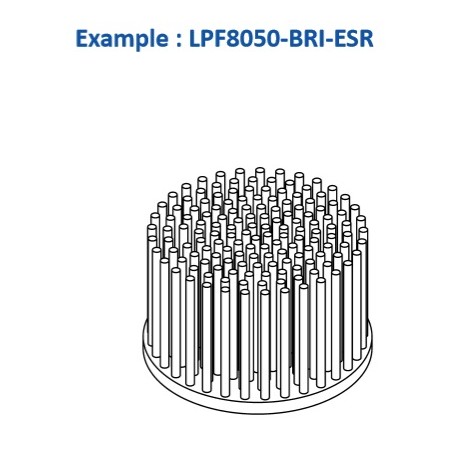

LPF8050-BRI-ESR-B

LPF8050-BRI-ESR-B

41931 LPF8050-BRI-ESR-B LPF8050-B-BRI-ESR LPF8050-B-BRI-ESR MechaTronix LED heatsink series LSB and LPF. extruded (LSB_) and pin fin heatsinks (LPF_) for free air convection with a black anodized surface suitable for Bridgelux ES Star (LSB_BRI-ESS/LPF_BRI-ESS) resp. ES Square Array (LSB_BRI-ESR/LPF_BRI-ESR) made from AL6063-TS mit 2xM2,5 mounting holes and a Ø6mm cable lead-through

Specifications

manufacturer
Manufacturer's name LPF8050-B-BRI-ESR
Thermal resistance [°C/W] 2,34
D x L [mm] 80x50
Data Sheet

Unit price

14,09 €

Stock: 50
Further delivery:
CW 04/2025
