LPF11180-ZHE-B

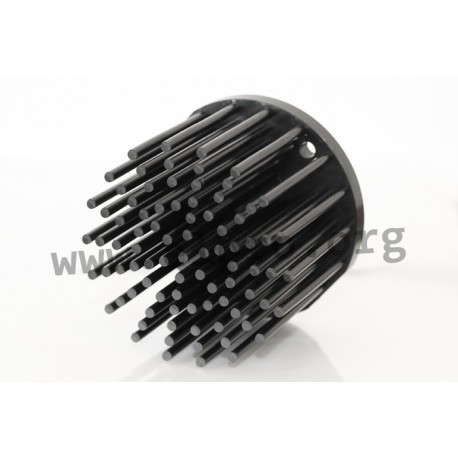

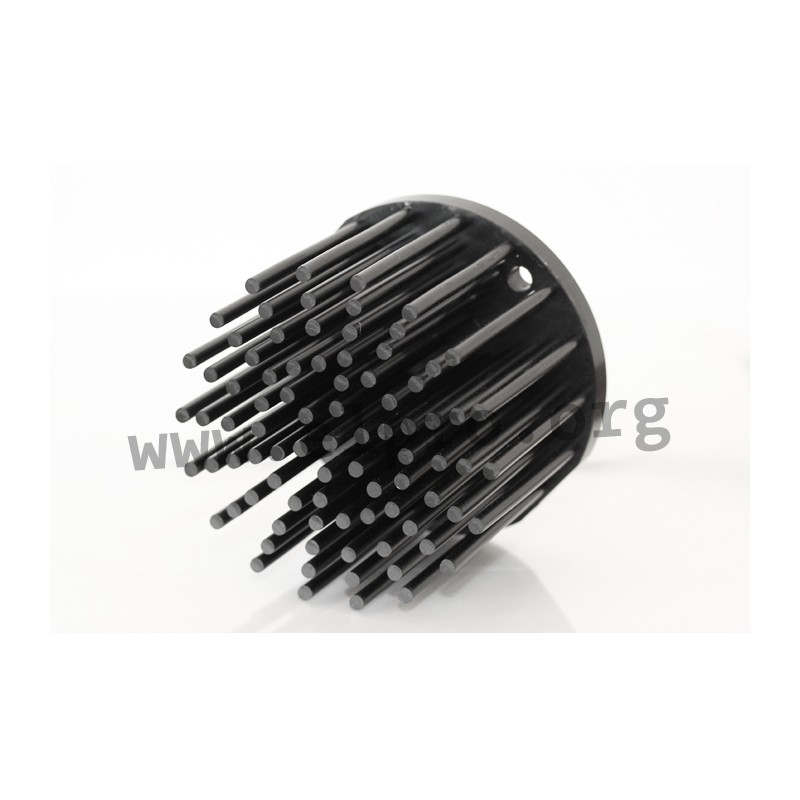

Pin Fin LED heat sinks for Zhaga Book 3

Black or clear anodized heatsinks made of AL1070 aluminium alloy suitable for free air convection. Easy mounting withith mounting holes M3 and cable guidance hole Ø6mm or by using thermally conductive adhesive foil or thermally conductive glue.

• for Spot and Downlight design from 2000 to 6000 Lumen
• mounting holes foreseen for
Zhaga Book 3 Spot Light Modules Edison Edilex SLM, Osram PrevaLED Core AC / AC PRO / Z3 / Z4, Philips Fortimo SLM, Sharp INTERMO, Tridonic Talexx Stark SLE G3 / G4, Vossloh Schwabe Luga Shop; Bridgelux BXRA ES Rectangle, V-series LED array; Citizen Citiled CLL032-CLU034, CLL042-CLU044; Cree XLamp CXA18, CXB18, CXA25, CXB25; Edison EdiPower II HM16, HM30, HM40; LG Innotek LEMWM18 10W, 13W, 17W, 24W and LEMWM28 40W; Lumileds Luxeon COB's 1203, 1204, 1205, 1208, 1211, 1216, Luxeon K arrays K12, K16Lustrous LUSTRON 6 series LL613F / LL620F / LL630F / LL630D / LL660D; Osram Soleriq S19, E30; Prolight Opto PACF, PACG, PABA, PACC, PACD; Seoul Semiconductor ZC18, ZC25, ZC40; Sharp Mega Zenigata, Tiger Zenigata; Tridonic Talexx Stark SLE GEN3 Mini LES-17

LPF11180-ZHE-B

LPF11180-ZHE-B

106106 LPF11180-ZHE-B LPF11180-ZHE-B Pin Fin LED heat sinks for Zhaga Book 3. Black or clear anodized heatsinks made of AL1070 aluminium alloy suitable for free air convection. Easy mounting withith mounting holes M3 and cable guidance hole Ø6mm or by using thermally conductive adhesive foil or thermally conductive glue. • for Spot and Downlight design from 2000 to 6000 Lumen• mounting holes foreseen forZhaga Book 3 Spot Light Modules Edison Edilex SLM, Osram PrevaLED Core AC / AC PRO / Z3 / Z4, Philips Fortimo SLM, Sharp INTERMO, Tridonic Talexx Stark SLE G3 / G4, Vossloh Schwabe Luga Shop; Bridgelux BXRA ES Rectangle, V-series LED array; Citizen Citiled CLL032-CLU034, CLL042-CLU044; Cree XLamp CXA18, CXB18, CXA25, CXB25; Edison EdiPower II HM16, HM30, HM40; LG Innotek LEMWM18 10W, 13W, 17W, 24W and LEMWM28 40W; Lumileds Luxeon COB's 1203, 1204, 1205, 1208, 1211, 1216, Luxeon K arrays K12, K16Lustrous LUSTRON 6 series LL613F / LL620F / LL630F / LL630D / LL660D; Osram Soleriq S19, E30; Prolight Opto PACF, PACG, PABA, PACC, PACD; Seoul Semiconductor ZC18, ZC25, ZC40; Sharp Mega Zenigata, Tiger Zenigata; Tridonic Talexx Stark SLE GEN3 Mini LES-17

Specifications

manufacturer
Manufacturer's name LPF11180-ZHE-B
Thermal resistance [°C/W] 1,07
D x L [mm] 111x80

Unit price

30,99 €

Stock: 0
Next incoming goods:
CW 04/2025
36 units

Further delivery:
CW 15/2025
