XLN-60-H-DA2

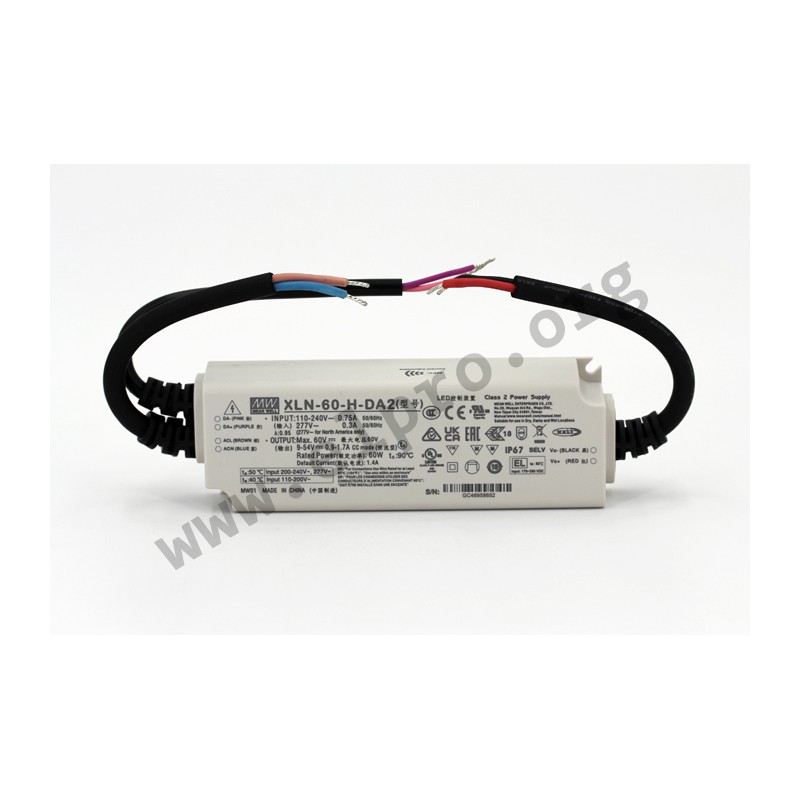

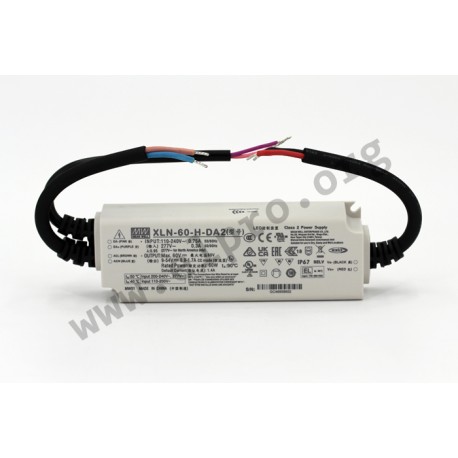

Mean Well LED driver series XLN-60

LED drivers in a plastic housing (IP67) with 60W, a dimming function, an NFC function, a DALI-2 interface and a constant power. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN62386-101/102/207. We offer the type XLN-60-H-DA2 of this Mean Well series.

  • single output
  • output: 60W
  • input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC
  • maximal input inrush current: 15A
  • leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -25 to +90°C
  • dimensions: 141,5x49x32mm
XLN-60-H-DA2, Mean Well LED drivers, 60W, IP67, constant power, dimmable, DALI 2.0 interface, NFC, XLN-60 series

XLN-60-H-DA2

245570 XLN-60-H-DA2 XLN-60-H-DA2 Mean Well LED driver series XLN-60. LED drivers in a plastic housing (IP67) with 60W, a dimming function, an NFC function, a DALI-2 interface and a constant power. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN62386-101/102/207. We offer the type XLN-60-H-DA2 of this Mean Well series. single output output: 60W input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC maximal input inrush current: 15A leakage current: &lt;0,75mA withstand voltage I/P-O/P: 3750V AC operating temperature: -25 to +90°C dimensions: 141,5x49x32mm

Specifications

manufacturer
Manufacturer's name XLN-60-H-DA2
Output voltage [V] 9...54
Efficiency [%] 90
Output current [A] 0,9...1,7
Output power [W] 60
Data Sheet

Unit price

27,79 €

Volume discounts

Quantity Unit price
50 + 25,89 €

Stock: 30
Further delivery:
CW 16/2025
