XLN-60-24

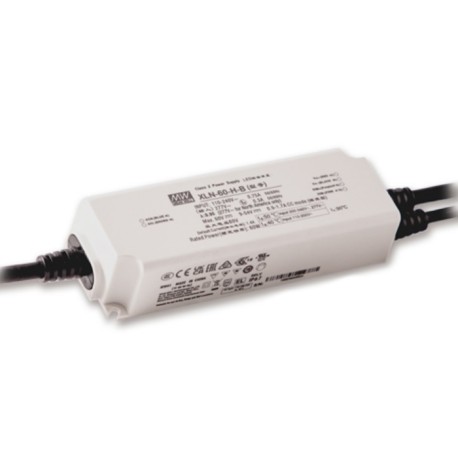

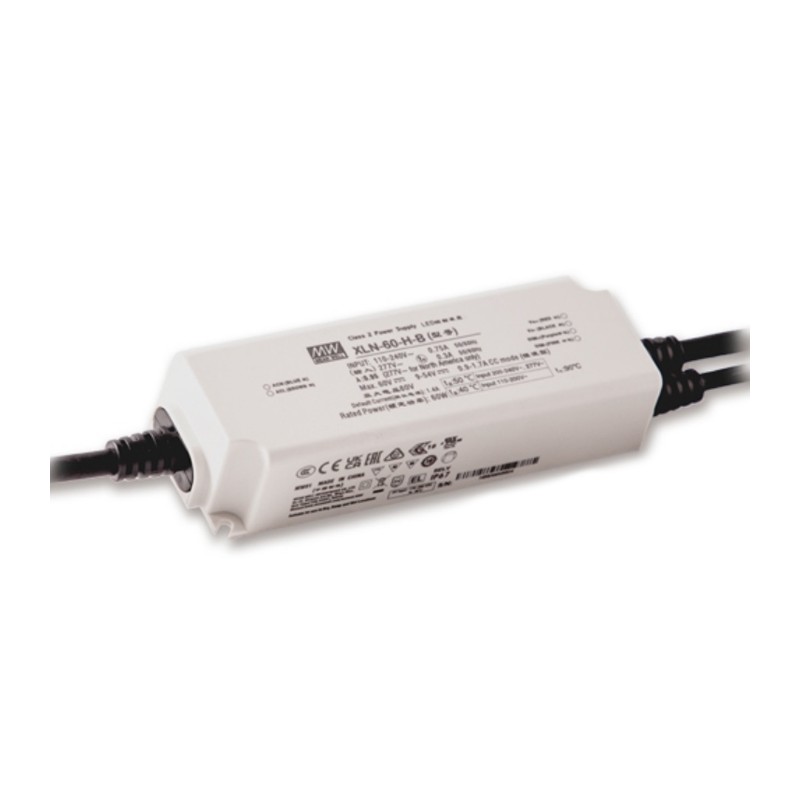

Mean Well LED driver series XLN-60

LED drivers in a plastic housing (IP67) with 60W, a constant voltage and a low no-load power (<0,5W). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN62384, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLN-60-12, XLN-60-24 and XLN-60-48.

  • single output
  • output: 60W
  • input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC
  • maximal input inrush current: 15A
  • leakage current: <0,75mA
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -25 to +90°C
  • dimensions: 141,5x49x32mm
XLN-60-24, Mean Well LED drivers, 60W, IP67, constant voltage, XLN-60 series

XLN-60-24

245562 XLN-60-24 XLN-60-24 Mean Well LED driver series XLN-60. LED drivers in a plastic housing (IP67) with 60W, a constant voltage and a low no-load power (&lt;0,5W). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN62384, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLN-60-12, XLN-60-24 and XLN-60-48. single output output: 60W input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC maximal input inrush current: 15A leakage current: &lt;0,75mA overload protection: 105 to 150% withstand voltage I/P-O/P: 3750V AC operating temperature: -25 to +90°C dimensions: 141,5x49x32mm

Specifications

manufacturer
Manufacturer's name XLN-60-24
Output voltage [V] 24
Efficiency [%] 87
Output current [A] 2,5
Output power [W] 60
Data Sheet

Unit price

22,09 €

Volume discounts

Quantity Unit price
50 + 20,59 €

Stock: 382
Further delivery:
CW 11/2025
