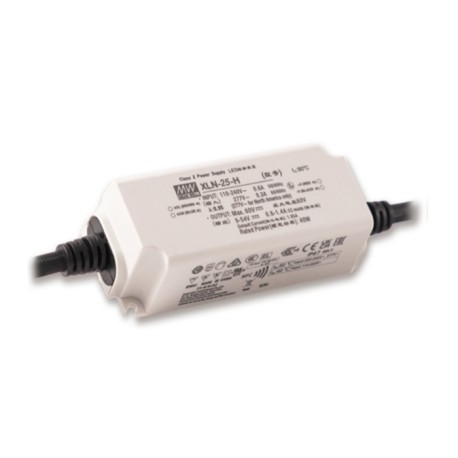

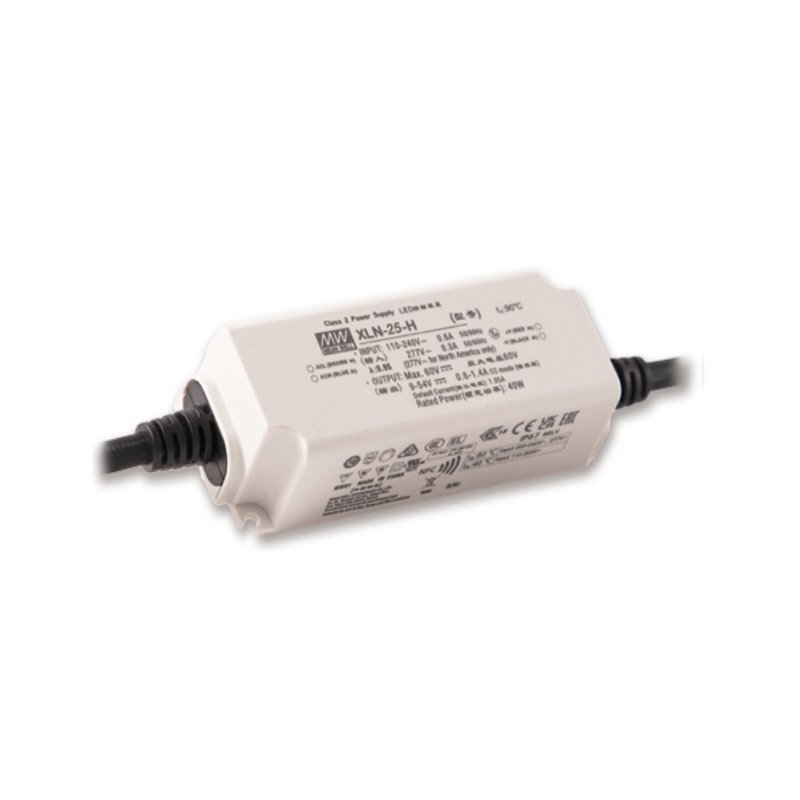

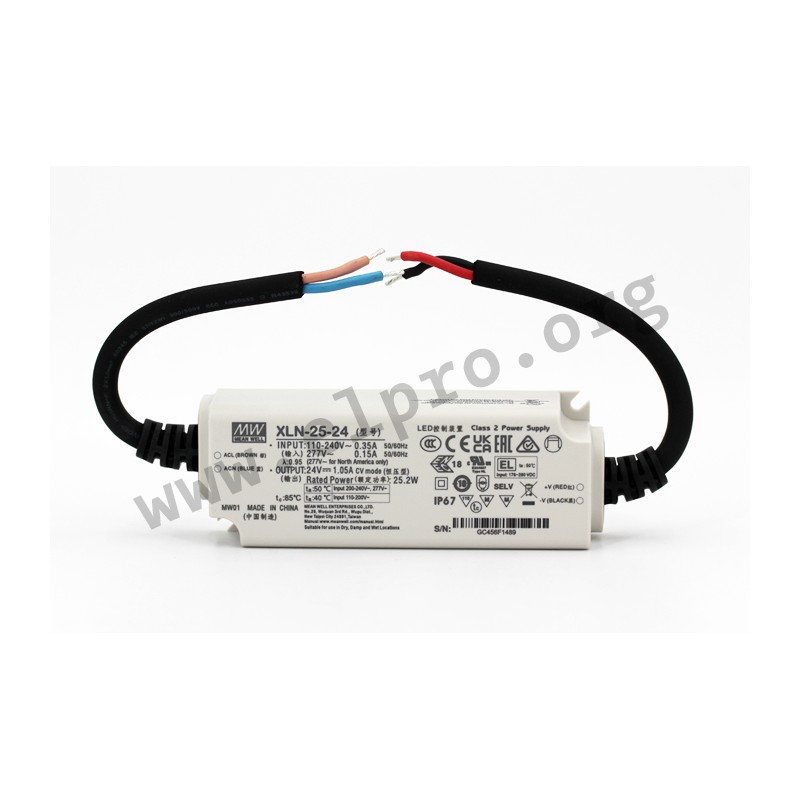

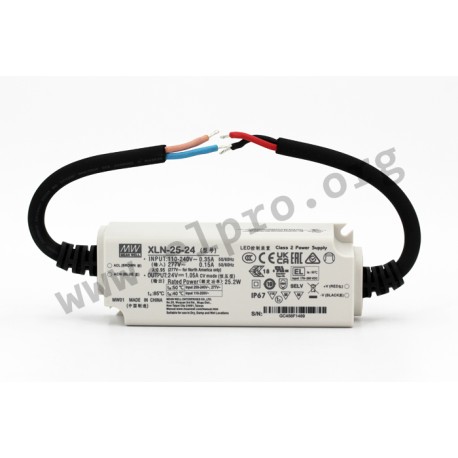

XLN-25-12

Mean Well LED driver series XLN-25

LED drivers in a plastic housing (IP67) with 25W, a constant voltage and a low no-load power (<0,5W). These devices have a built-in active PFC function and are protected against overvoltage, overload, overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: XLN-25-12 and XLN-25-24.

  • single output
  • output: 25,2W
  • input voltage: 100 to 305V AC (47 to 63Hz), 141 to 431V DC
  • maximal input inrush current: 10A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -25 to +90°C
  • dimensions: 114x44x32mm
XLN-25-12, Mean Well LED drivers, 25W, IP67, constant power/voltage, XLN-25 series

XLN-25-12

245517 XLN-25-12 XLN-25-12 Mean Well LED driver series XLN-25. LED drivers in a plastic housing (IP67) with 25W, a constant voltage and a low no-load power (&lt;0,5W). These devices have a built-in active PFC function and are protected against overvoltage, overload, overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with&nbsp;EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the&nbsp;following types of this Mean Well series:&nbsp;XLN-25-12 and XLN-25-24. single output output: 25,2W input voltage: 100 to 305V AC (47 to 63Hz), 141 to 431V DC maximal input inrush current: 10A withstand voltage&nbsp;I/P-O/P: 3750V AC operating temperature: -25 to +90&deg;C dimensions: 114x44x32mm

Specifications

manufacturer
Manufacturer's name XLN-25-12
Output voltage [V] 12
Efficiency [%] 86
Output current [A] 2,1
Output voltage tolerance: [%] ±4
Output power [W] 25,2
Ripple [mVp-p] 60
Data Sheet

Unit price

16,39 €

Volume discounts

Quantity Unit price
50 + 15,19 €

Stock: 353
Further delivery:
CW 11/2025
