XLG-75-L

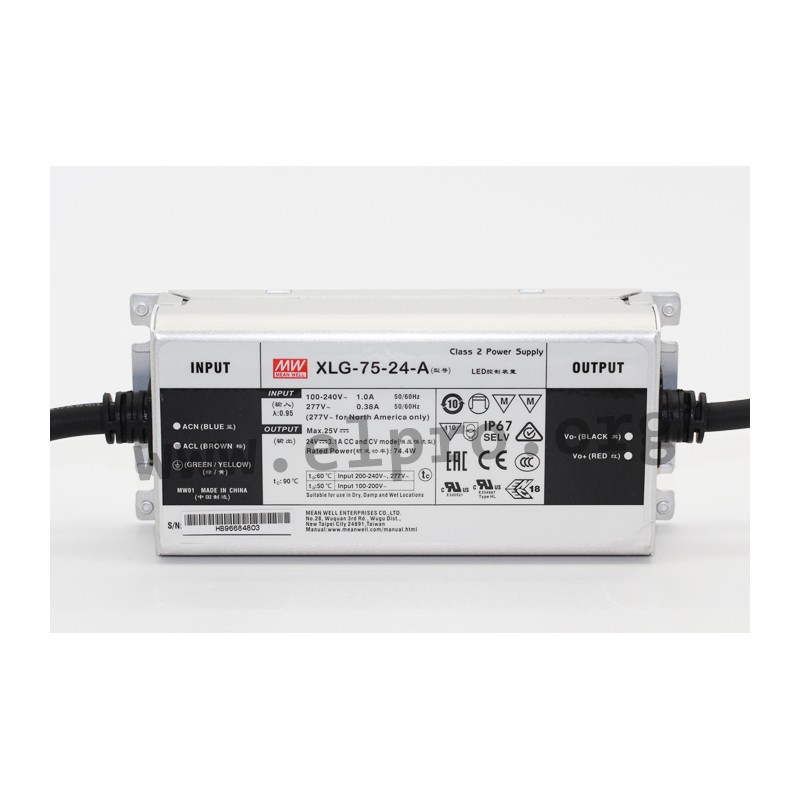

Mean Well LED driver series XLG-75

LED drivers in a metal housing (IP67) with 75W, a constant power (XLG-75-L/XLG-75-H), a constant current/voltage (XLG-75-12/XLG-75-24) and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overcurrent, overtemperature as well as short circuit. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN623684, EN60335-1, EN61547, EN55015 as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-75-12, XLG-75-24, XLG-75-L and XLG-75-H.

  • single output
  • output: 60 to 75W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 4200V AC
  • withstand voltage I/P-FG: 2100V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 140x63x32mm
  • weight: 580g

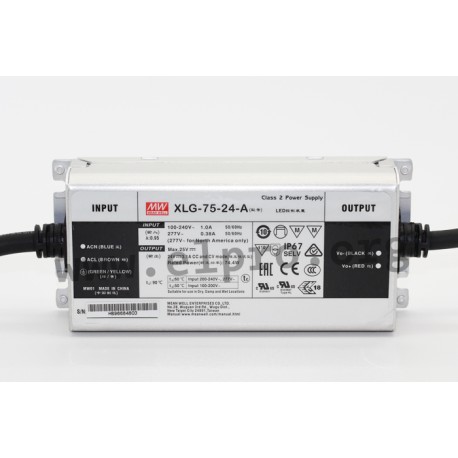

XLG-75-L, Mean Well LED drivers, 75W, IP67, CV and CC (mixed mode), constant power, XLG-75 series

XLG-75-L

244560 XLG-75-L XLG-75-L Mean Well LED driver series XLG-75. LED drivers in a metal housing (IP67) with 75W, a constant power (XLG-75-L/XLG-75-H), a constant current/voltage (XLG-75-12/XLG-75-24) and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overcurrent, overtemperature as well as short circuit. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN623684, EN60335-1, EN61547, EN55015 as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-75-12, XLG-75-24, XLG-75-L and XLG-75-H. single output output: 60 to 75W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 4200V AC withstand voltage I/P-FG: 2100V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 140x63x32mm weight: 580g

Specifications

manufacturer
Manufacturer's name XLG-75-L
Output voltage [V] 27...56
Efficiency [%] 90
Output power [W] 75
Output current [mA] 1400
Data Sheet

Unit price

18,39 €

Stock: 0
Further delivery:
CW 11/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
