XLG-75-H-DA2

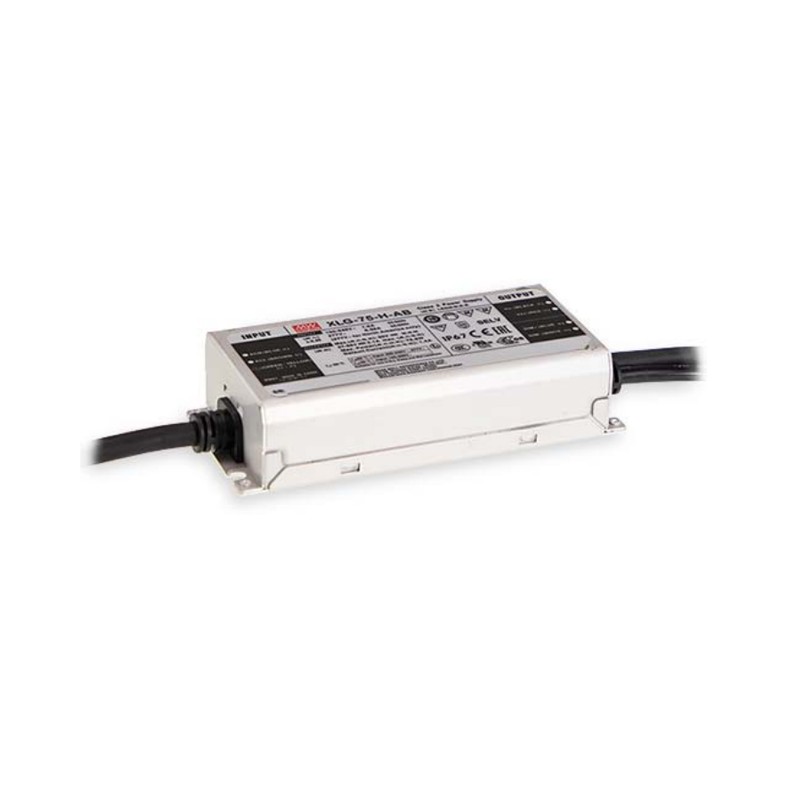

Mean Well LED driver series XLG-75-DA2

LED drivers in a metal housing (IP67) with 75W, a constant power, a DALI 2.0 interface and a low no-load power. These SELV compliant devices have a built-in active PFC function and are protected against overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications, are dimmable and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-75-L-DA2 and XLG-75-H-DA2.

  • single output
  • output: 74,9 to 75,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 50A
  • no-load power consumption: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 140x63x32mm
  • weight: 580g

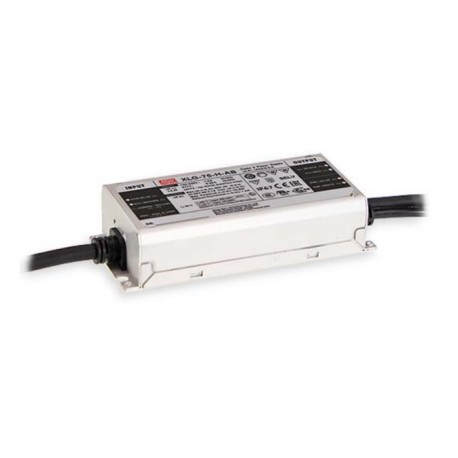

XLG-75-H-DA2, Mean Well LED drivers, 75W, IP67, constant power, dimmable, DALI 2.0 interface, XLG-75-DA2 series

XLG-75-H-DA2

242889 XLG-75-H-DA2 XLG-75-H-DA2 Mean Well LED driver series XLG-75-DA2. LED drivers in a metal housing (IP67) with 75W, a constant power, a DALI 2.0 interface and a low no-load power. These SELV compliant devices have a built-in active PFC function and are protected against overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications, are dimmable and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-75-L-DA2 and XLG-75-H-DA2. single output output: 74,9 to 75,6W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 50A no-load power consumption: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 140x63x32mm weight: 580g

Specifications

manufacturer
Manufacturer's name XLG-75-H-DA2
Output voltage [V] 27...56
Efficiency [%] 90
Output current [A] 1,4
Output power [W] 75,6
Data Sheet

Unit price

28,59 €

Volume discounts

Quantity Unit price
50 + 26,59 €

Stock: 0
Next incoming goods:
CW 03/2025
24 units

Further delivery:
CW 22/2025
