XLG-50-AB

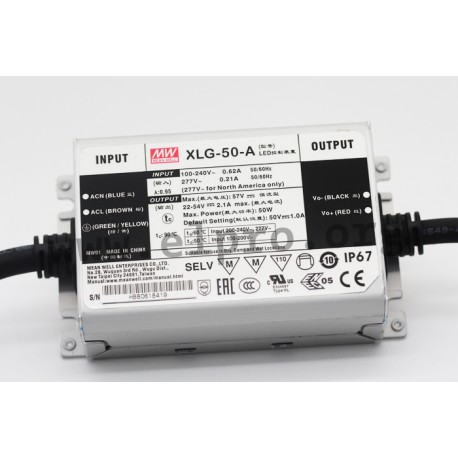

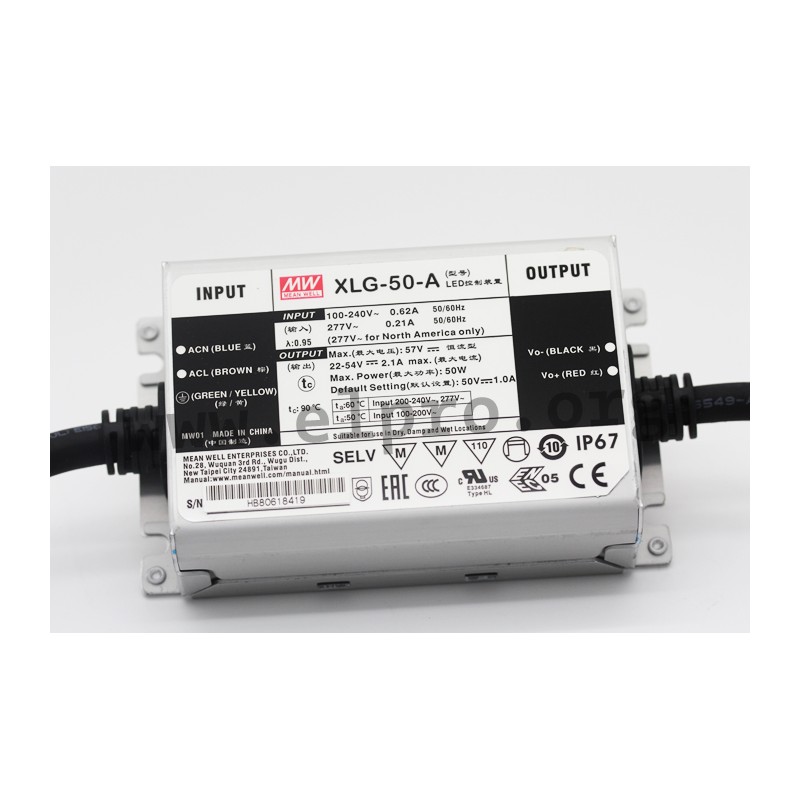

Mean Well LED driver series XLG-50

LED drivers in a metal housing (IP67) with a low no-load power, a constant power, a surge immunity level of 6kV and a built-in active PFC function. These devices comply with EN61347-1, EN61347-2-13, EN62384, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in potentiometer for adjusting the current limitation. We offer the non-dimmable power supplies XLG-50-A as well as the types XLG-50-AB with a 3 in 1 dimming function (0 to 10V DC, 10V PWM, potentiometer).

  • single output
  • output: 50W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 50A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 105x63x30mm
  • weight: 410g
Mean Well XLG-50 series

XLG-50-AB

112742 XLG-50-AB XLG-50-AB 4711287456782 Mean Well LED driver series XLG-50. LED drivers in a metal housing (IP67) with a low no-load power, a constant power, a surge immunity level of 6kV and a built-in active PFC function. These devices comply with EN61347-1, EN61347-2-13, EN62384, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in potentiometer for adjusting the current limitation. We offer the non-dimmable power supplies XLG-50-A as well as the types XLG-50-AB with a 3 in 1 dimming function (0 to 10V DC, 10V PWM, potentiometer). single output output: 50W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 50A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 105x63x30mm weight: 410g

Specifications

manufacturer
Manufacturer's name XLG-50-AB
GTIN 4711287456782
Efficiency [%] 90
Output power [W] 50
Output current [mA] 1000
Output voltage range [V] 22...54
Data Sheet

Unit price

18,19 €

Volume discounts

Quantity Unit price
50 + 17,09 €

Stock: 12
Next incoming goods:
CW 03/2025
220 units

Further delivery:
CW 11/2025
