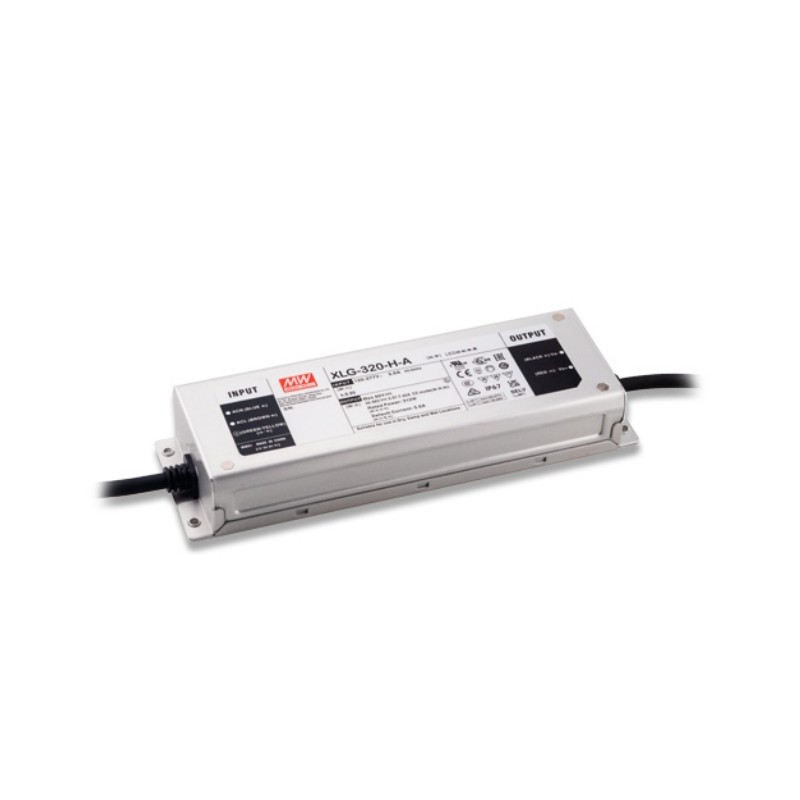

XLG-320-H

Mean Well LED driver series XLG-320

LED drivers in a metal housing (IP67) with 315W, a constant voltage/current (XLG-320-V), a constant power (XLG-320-_) and a universal input. These devices have a built-in active PFC function and are suitable for LED lighting applications. They are protected against overvoltage, overcurrent, short circuit as well as overtemperature and comply with EN61347-1, EN61347-2-13 as well as EN62384. We offer the following types of this Mean Well series: XLG-320-L, XLG-320-M, XLG-320-H and XLG-320-V.

  • single output
  • output: 310,8 to 315W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 45A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 246x77x39,5mm
  • weight: 1450g

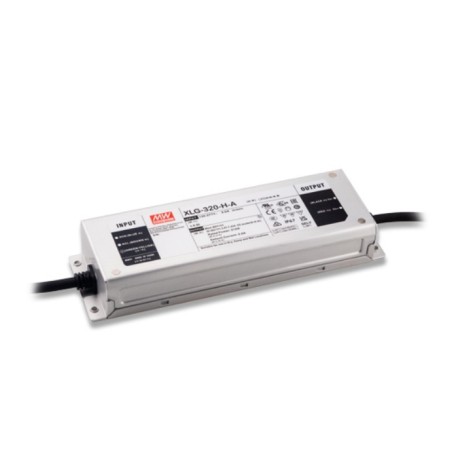

XLG-320-H, Mean Well LED drivers, 320W, IP67, CV and CC (mixed mode), constant power, XLG-320 series

XLG-320-H

244678 XLG-320-H XLG-320-H Mean Well LED driver series XLG-320. LED drivers in a metal housing (IP67) with 315W, a constant voltage/current (XLG-320-V), a constant power (XLG-320-_) and a universal input. These devices have a built-in active PFC function and are suitable for LED lighting applications. They are protected against overvoltage, overcurrent, short circuit as well as overtemperature and comply with EN61347-1, EN61347-2-13 as well as EN62384. We offer the following types of this Mean Well series: XLG-320-L, XLG-320-M, XLG-320-H and XLG-320-V. single output output: 310,8 to 315W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 45A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 246x77x39,5mm weight: 1450g

Specifications

manufacturer
Manufacturer's name XLG-320-H
Output voltage [V] 30...56
Efficiency [%] 92,5
Output current [A] 2,8...7,42
Output power [W] 312
Data Sheet

Unit price

48,69 €

Stock: 0
Further delivery:
CW 16/2025
