XLG-320-H-AB

Mean Well LED driver series XLG-320

LED drivers in a metal housing (IP67) with 315W, a 3 in 1 dimming function and a constant power output (XLG-320_-AB). These devices have a built-in active PFC function, are suitable for flickerfree CV dimming (XLG-320-48-ABV) and are protected against overvoltage, overcurrent, short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Mean Well series: XLG-320-L-AB, XLG-320-M-AB, XLG-320-H-AB and XLG-320-48-ABV.

  • single output
  • output: 310,8 to 315W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature XLG-320_-AB: -40 to +85°C
  • operating temperature XLG-320-48-ABV: -20 to +85°C
  • dimensions: 246x77x39,5mm
  • weight: 1450g

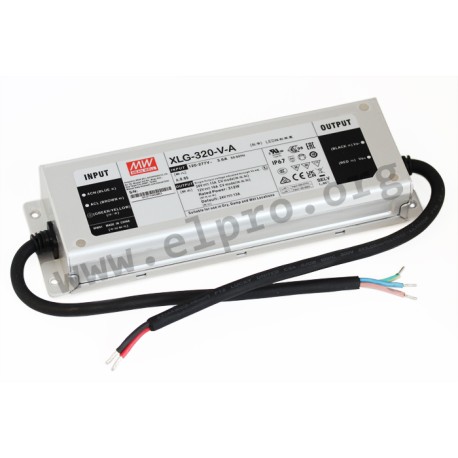

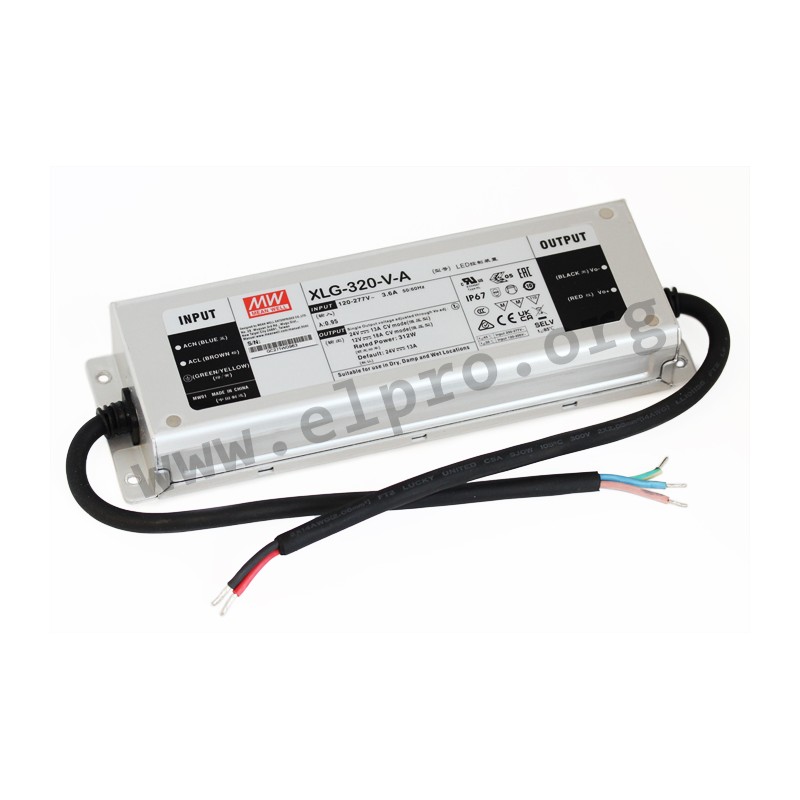

XLG-320-H-AB, Mean Well LED switching power supplies, 320W, IP67, CV and CC (mixed mode), constant power, dimmable, XLG-320 seri

XLG-320-H-AB

241224 XLG-320-H-AB XLG-320-H-AB 4711287482316 Mean Well LED driver series XLG-320. LED drivers in a metal housing (IP67) with 315W, a 3 in 1 dimming function and a constant power output (XLG-320_-AB). These devices have a built-in active PFC function, are suitable for flickerfree CV dimming (XLG-320-48-ABV) and are protected against overvoltage, overcurrent, short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Mean Well series: XLG-320-L-AB, XLG-320-M-AB, XLG-320-H-AB and XLG-320-48-ABV. single output output: 310,8 to 315W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 45A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature XLG-320_-AB: -40 to +85°C operating temperature XLG-320-48-ABV: -20 to +85°C  dimensions: 246x77x39,5mm weight: 1450g

Specifications

manufacturer
Manufacturer's name XLG-320-H-AB
GTIN 4711287482316
Efficiency [%] 92,5
Output current range [A] 2,8...7,42
Output power [W] 312
Output voltage range [V] 30...56
Data Sheet

Unit price

54,99 €

Volume discounts

Quantity Unit price
50 + 53,19 €

Stock: 36
Further delivery:
CW 16/2025
