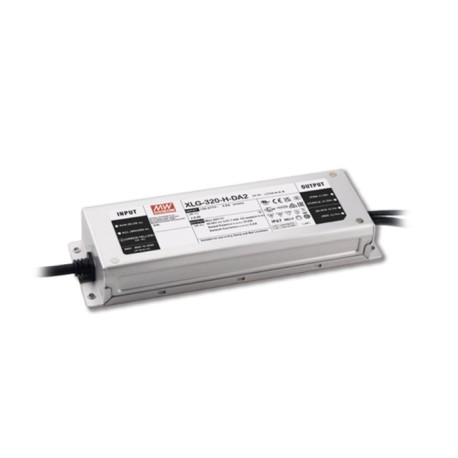

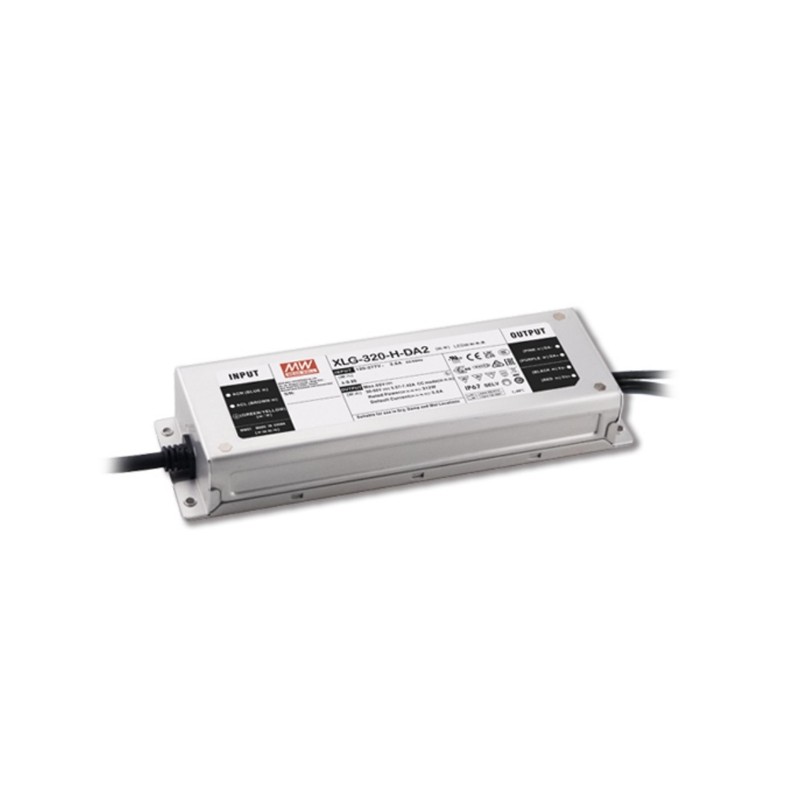

XLG-320-M-DA2-A

Mean Well LED driver series XLG-320-DA2

LED drivers in a metal housing (IP67) with 320W, a Dali-2 interface, an auxiliary output (12V/250mA) and a constant power. These devices have a built-in active PFC function and are protected against overvoltage, short circuit as well as overtemperature. They have a low no-load power and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-320-L-DA2-A, XLG-320-M-DA2-A and XLG-320-H-DA2-A.

  • single output
  • output: 310,8 to 315W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 45A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1800V AC
  • operating temperature: -40 to +85°C
  • dimensions: 246x77x39,5mm
  • weight: 1450g
XLG-320-M-DA2-A, Mean Well LED drivers, 320W, IP67, constant power, dimmable, auxiliary output, DALI 2.0 interface, XLG-320-DA2

XLG-320-M-DA2-A

244716 XLG-320-M-DA2-A XLG-320-M-DA2-A Mean Well LED driver series XLG-320-DA2. LED drivers in a metal housing (IP67) with 320W, a Dali-2 interface, an auxiliary output (12V/250mA) and a constant power. These devices have a built-in active PFC function and are protected against overvoltage, short circuit as well as overtemperature. They have a low no-load power and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-320-L-DA2-A, XLG-320-M-DA2-A and XLG-320-H-DA2-A. single output output: 310,8 to 315W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 45A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1800V AC operating temperature: -40 to +85°C dimensions: 246x77x39,5mm weight: 1450g

Specifications

manufacturer
Manufacturer's name XLG-320-M-DA2-A
Output voltage [V] 74...148
Efficiency [%] 93,5
Output current [A] 2,8
Output power [W] 310,8
Data Sheet

Unit price

56,39 €

Stock: 0
Further delivery:
CW 22/2025

Minimum order quantity 500 units or
multiples of 500.
