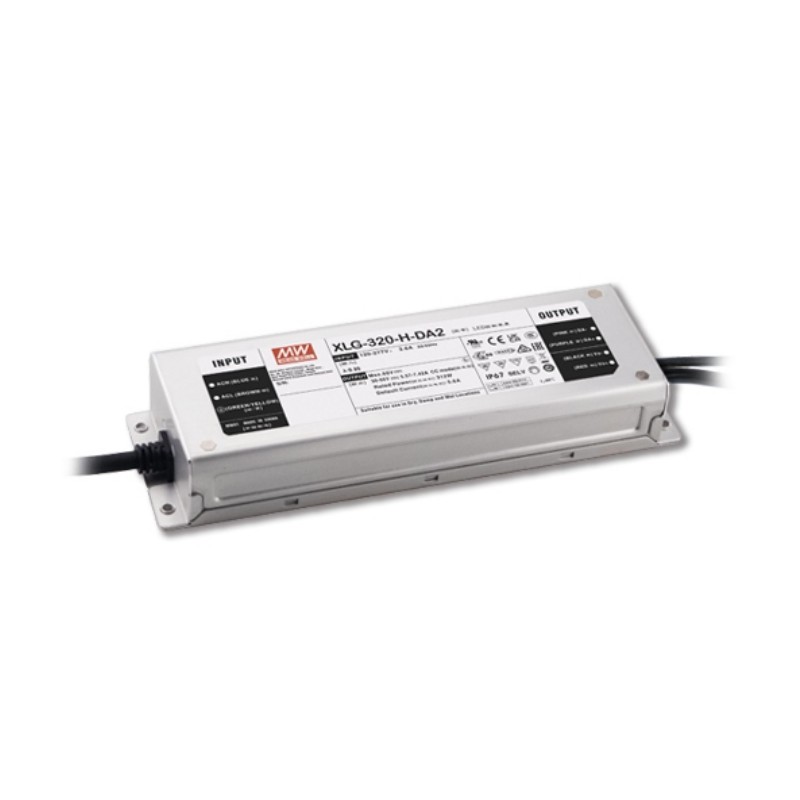

XLG-320-H-DA2

Mean Well LED driver series XLG-320-DA2

LED drivers in a metal housing (IP67) with 320W, a constant power and a low no-load power (<0,5W). These devices have a built-in active PFC function, are suitable for LED lighting applications and are protected against overvoltage, short circuit as well as overtemperature. They have a DALI 2.0 interface, are dimmable and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-320-L-DA2, XLG-320-M-DA2 and XLG-320-H-DA2.

  • single output
  • output: 310,8 to 315W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1800V AC
  • operating temperature: -40 to +85°C
  • dimensions: 246x77x39,5mm
  • weight: 1450g

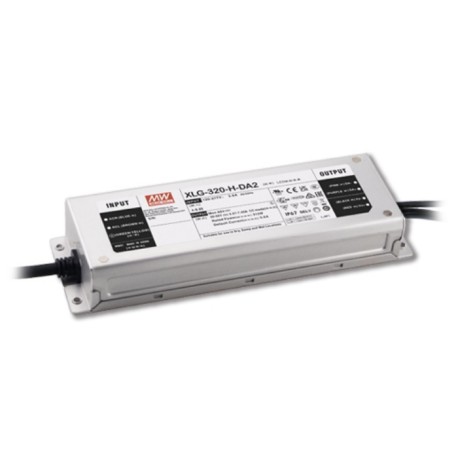

XLG-320-H-DA2, Mean Well LED drivers, 320W, IP67, constant power, dimmable, DALI 2.0 interface, XLG-320-DA2 series

XLG-320-H-DA2

242877 XLG-320-H-DA2 XLG-320-H-DA2 Mean Well LED driver series XLG-320-DA2. LED drivers in a metal housing (IP67) with 320W, a constant power and a low no-load power (&lt;0,5W). These devices have a built-in active PFC function, are suitable for LED lighting applications and are protected against overvoltage, short circuit as well as overtemperature. They have a DALI 2.0 interface, are dimmable and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-320-L-DA2, XLG-320-M-DA2 and XLG-320-H-DA2. single output output: 310,8 to 315W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 45A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1800V AC operating temperature: -40 to +85°C dimensions: 246x77x39,5mm weight: 1450g

Specifications

manufacturer
Manufacturer's name XLG-320-H-DA2
Output voltage [V] 27...56
Efficiency [%] 92,5
Output current [A] 5,6
Output power [W] 312
Data Sheet

Unit price

60,49 €

Volume discounts

Quantity Unit price
50 + 58,49 €

Stock: 35
Further delivery:
CW 17/2025
